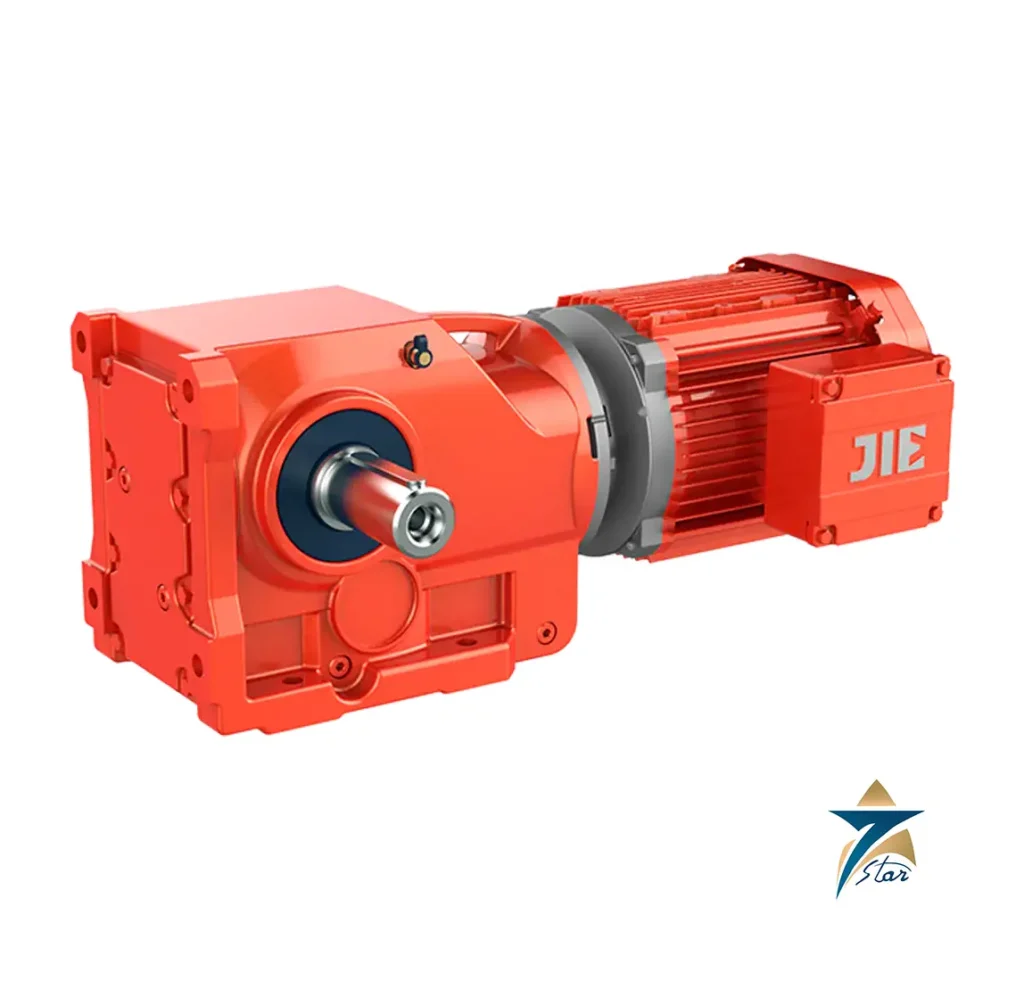

JIE JRT K Series Helical-Bevel Gearmotor

Overview

The JIE JRT K Series Helical-Bevel Gearmotor represents the pinnacle of right-angle power transmission technology. In modern continuous-process industries where spatial constraints meet the demand for massive torque outputs, traditional inline gearboxes or inefficient worm drives often fall short. The K Series is engineered specifically to resolve these challenges, delivering a highly efficient orthogonal drive solution that minimizes energy losses while maximizing load-bearing capacities under harsh operational conditions.

Seven Star LLC operates as a specialized technical supplier, commercial vendor, and professional B2B procurement partner, distributing this comprehensive industrial gearmotor series to heavy manufacturing facilities, mining operations, and bulk material handling systems throughout the Sultanate of Oman, Muscat, and the wider GCC region. By integrating advanced right-angle gear kinematics with an adaptable modular housing, this gearmotor series provides a resilient, long-lasting drive solution that couples seamlessly with standard IEC and NEMA electric motors, optimizing mechanical efficiency across complex industrial process loops.

Operational Principle

The mechanical speed reduction and power transmission mechanism of the gearmotor relies on high-precision helical-bevel gear train kinematics. Unlike standard worm gear units that suffer from high sliding friction and substantial thermal energy losses, the helical-bevel design utilizes intersecting axes (typically at 90 degrees) with rolling tooth contact. This right-angle engagement minimizes mechanical shear forces, dramatically reduces acoustic emissions, and ensures a constant power transmission efficiency of over 95% to 97% across all reduction stages.

The input shaft receives rotational kinetic energy from the prime mover, passing it through an initial helical gear stage before it reaches the precision-machined bevel gear set. The optimized tooth profile—featuring specialized crowning modifications—compensates for elastic shaft deflections when subjected to heavy starting torques or shock loads. This ensures an optimal tooth contact pattern is maintained at all times, preventing micro-pitting, reducing localized thermal buildup, and delivering maximum mechanical torque to the output shaft with virtually zero backlash degradation over its lifecycle.

Engineering Design of the JIE JRT K Series

The structural and metallurgical engineering design of the JIE JRT K Series is rigorously optimized to withstand severe-duty environmental exposures, including the extreme ambient temperatures and abrasive dust typical of the Sohar and Salalah industrial zones. The outer gear housings are cast from high-grade, rigid gray cast iron (GG20 or GG25). This heavy-duty casing is modeled using Finite Element Analysis (FEA) to reinforce stress-concentration nodes, providing exceptional vibration dampening and preventing housing distortion under immense radial and axial loads.

Internally, the gear train is manufactured from premium 20CrMnTi alloy steel. These gears undergo advanced gas carburizing, quenching, and high-precision CNC grinding to achieve a core toughness that resists shock loads and a surface hardness of 58-62 HRC (accuracy grade DIN 5/6) for supreme wear resistance. Designed on a fully modular platform, the series offers extreme mounting versatility. It supports foot-mounted, flange-mounted, and torque-arm configurations. Crucially, the output mechanics can be customized with solid shafts, keyway hollow shafts, or heavy-duty shrink disk connections, making it the ultimate solution for direct-drive conveyor pulleys and mixer agitators.

Key Features

• Right-angle orthogonal drive layout ideal for tight spatial constraints and compact machine designs.
• Exceptionally high transmission efficiency (>95%), drastically reducing electrical power consumption compared to worm drives.
• FEA-optimized cast-iron housing delivering superior structural rigidity, shock absorption, and vibration dampening.
• Gearing forged from carburized and precision-ground 20CrMnTi alloy steel for maximum operational longevity.
• Diverse output configurations including solid shafts, hollow shafts with keyways, and keyless shrink disks.
• Double-lip synthetic rubber radial oil seals (Nitrile/Viton) ensuring perfect lubricant retention and blocking silica dust.
• Low noise profile and cool running temperatures achieved via tight machining tolerances and high-efficiency rolling friction.

Industrial Applications

The robust, right-angle load-bearing capabilities of this helical-bevel gearmotor make it a critical asset for heavy-duty continuous processes. In the mining, quarrying, and cement sectors of Oman, these drive systems are extensively deployed as shaft-mounted units to power long-distance inclined belt conveyors, bucket elevators, and heavy raw material crushers.

Water treatment facilities and desalination utilities across the GCC rely on these orthogonal gear units to drive large-scale chemical agitators, clarifiers, and thickeners where vertical space is limited. Sourced through the comprehensive industrial procurement network of Seven Star LLC, the gearmotors are also heavily integrated into packaging logistics lines, bulk grain silos, and petrochemical processing plants where reliable, high-torque speed reduction is non-negotiable for maintaining uninterrupted production schedules.

Mounting Variants, Interchangeability, and Motor Adaptation

The JIE JRT K Series is built across a wide frame range – the manufacturer lists gear sizes from 17 through 189 with output shaft diameters spanning roughly 25 mm to 190 mm – which is what allows a single supplier standard to cover everything from a small packaging conveyor to a heavy clarifier drive. Each frame is offered in the full set of helical-bevel mounting arrangements: foot-mounted, with an output flange in either the B5 or B14 pattern, and as a shaft-mounted hollow-shaft unit carried on a torque arm. Because the series is dimensionally designed to be directly interchangeable with equivalent units from other established gearbox manufacturers, a failed unit on an existing line can usually be replaced without modifying the base frame, the torque arm bracket, or the driven shaft, which is the decisive factor when a plant is trying to restore production rather than redesign a drive.

On the input side the gear unit accepts either a close-coupled three-phase asynchronous motor or an IEC motor input flange, so an existing motor, a specific efficiency class, or a motor already matched to a variable frequency drive can be retained. Common factory options include a brake motor for load holding on inclined conveyors and hoists, motor thermal protection for duty cycles with frequent starting, and a backstop where reverse rotation under gravity must be prevented. JIE manufactures under an ISO 9001 quality system and specifies brand-name rolling bearings and radial shaft seals, and provides a 3D CAD configurator so that drive envelopes can be checked against the machine model before an order is placed.

Lubrication, Sealing, and Field Maintenance

Helical-bevel gear units of this class are lubricated by oil bath and splash, and the correct oil quantity depends entirely on the mounting position, because the position determines where the oil level sits relative to the bevel set and the output bearings. For that reason the mounting position – M1 through M6 in the conventional designation – must be stated at the time of order, and the breather plug, filling plug, and drain plug must be located according to the position actually installed rather than as the unit happens to arrive. A gear unit later re-oriented on site without relocating the plugs and adjusting the fill is one of the most common causes of premature bearing failure in conveyor drives.

In Omani service the two governing environmental factors are ambient heat and abrasive airborne dust. High ambient temperature raises sump temperature and shortens oil service life, so operators running JIE JRT K Series units in cement, quarrying, and outdoor bulk handling duty should shorten oil-change intervals relative to the catalogue figure or move to a synthetic gear oil with a higher viscosity index. Dust ingress is managed by the double-lip radial shaft seals, and these should be inspected for weeping at every planned shutdown, since a seal that has begun to leak both loses lubricant and admits silica. Seven Star LLC can supply seal kits, breathers, and replacement units from the same series to keep spares standardised across a site.

Technical Specifications

Request a Quote for JIE JRT K Series Helical-Bevel Gearmotor

To submit a formal Request for Quote (RFQ), check current availability and lead time, or download complete engineering CAD drawings and datasheets for the JIE JRT K Series Helical-Bevel Gearmotor, please contact the industrial power transmission division at Seven Star LLC today. Our technical application advisors in Oman are prepared to assist with exact gear ratio calculations, torque matching, and rapid commercial sourcing across the GCC region.
