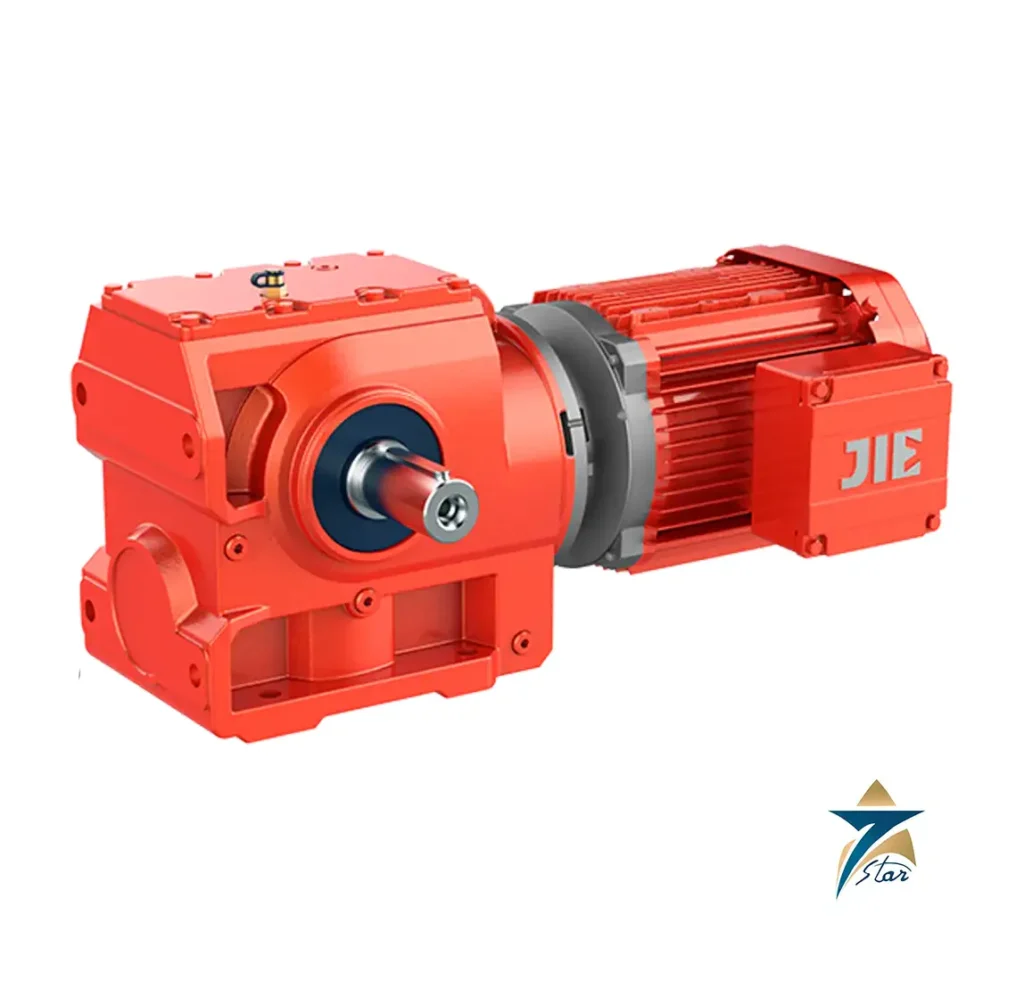

JIE JRT S Series Helical-Worm Gearmotor

Overview

The JIE JRT S Series Helical-Worm Gearmotor represents an advanced hybrid power transmission solution that seamlessly merges the high-efficiency kinematics of helical gears with the smooth, high-ratio reduction capabilities of a right-angle worm drive. In modern continuous-process industries, spatial constraints and the need for extremely quiet, vibration-free operation often dictate the use of right-angle gearboxes. This specialized series goes beyond standard single-stage worm drives by incorporating a helical pre-stage, which drastically enhances overall mechanical efficiency, load-bearing capacity, and operational lifespan.

Seven Star LLC operates as a specialized technical supplier, commercial vendor, and professional B2B procurement consultant, distributing this robust industrial gearmotor series to heavy manufacturing complexes, material handling facilities, and process plants across the Sultanate of Oman, Muscat, and the wider GCC region. Built upon a highly versatile modular platform, the gearmotor supports dynamic integration with standard IEC and NEMA electric motors, optimizing mechanical drive architectures for continuous, heavy-duty plant operations where reliability and acoustic control are critical.

Operational Principle

The mechanical power transmission mechanism of this gearmotor relies on a dual-stage, right-angle reduction architecture. Unlike conventional single-stage worm gearboxes that suffer from significant sliding friction and high thermal energy loss, the gear unit introduces an initial parallel-axis helical gear set before the right-angle worm stage. When kinetic energy is introduced via the prime mover, the primary helical gears step down the rotational speed efficiently using rolling tooth contact.

This reduced input speed is then transmitted to the secondary worm shaft and bronze worm wheel. By lowering the velocity before it reaches the worm gear interface, the sliding friction inherent to worm drives is drastically minimized. This hybrid engagement increases the total transmission efficiency to levels much higher than pure worm drives and minimizes mechanical vibration and acoustic emissions. Furthermore, depending on the specific reduction ratio, the worm gear geometry can provide an inherent self-locking capability, preventing the driven load from back-driving the motor during power losses—a crucial safety mechanism for hoisting and inclined conveying applications.

Engineering Design of the JIE JRT S Series

The structural and metallurgical engineering design of the JIE JRT S Series is meticulously optimized to endure the harsh, high-temperature, and dust-laden environments characteristic of the Sohar and Salalah industrial sectors. The gear unit is housed within a rigid, UNICASE cast-iron enclosure (GG20 or GG25). This heavy-duty monolithic casing is engineered using Finite Element Analysis (FEA) to eliminate stress fracture points and provide superior thermal dissipation and vibration dampening under massive radial loads.

Internally, the gear train is manufactured from premium metallurgical alloys. The primary helical gears are forged from 20CrMnTi alloy steel, subjected to rigorous gas carburizing and precision CNC grinding to achieve an ultra-hard surface (58-62 HRC). The secondary worm wheel is cast from a specialized, highly wear-resistant bronze alloy, matched with a hardened and ground steel worm shaft. The modular architecture offers supreme output flexibility, featuring options for standard foot mounting (S), flange mounting (SF), hollow shaft with keyways (SA/SAF), and torque-arm configurations, ensuring robust integration into any industrial machine layout.

Key Features

• Hybrid helical-worm architecture providing significantly higher energy efficiency compared to standard single-stage worm gears.
• Right-angle output configuration ideal for tight spatial constraints and compact mechanical integration.
• Inherent self-locking capabilities at higher gear ratios, offering enhanced safety for hoists and inclined elevators.
• Heavy-duty UNICASE cast-iron housing ensuring structural rigidity, exceptional heat dissipation, and vibration dampening.
• Premium 20CrMnTi carburized helical gears combined with high-grade wear-resistant bronze alloy worm wheels.
• Versatile output options including solid shafts, hollow shafts with keyways, and keyless shrink disc designs.
• Advanced input modularity supporting standard IEC (AM), NEMA (AN), and servo motor coupling interfaces.
• Double-lip synthetic radial oil seals (Nitrile/Viton) guaranteeing leak-free operation and blocking silica dust ingress.

Industrial Applications

The smooth torque delivery, low noise profile, and high reduction ratios of this helical-worm gearmotor make it a critical asset across continuous industrial manufacturing and material handling loops. In the automated logistics, food processing, and packaging sectors of Oman, the drive units are utilized extensively on heavy-duty chain conveyors, bottling lines, and rotary packaging carousels where acoustic emissions must be kept to a strict minimum.

Cement processing plants, mining operations, and quarrying facilities across the GCC deploy these right-angle gear units to run inclined belt conveyors, bucket elevators, and bulk material feeders, taking advantage of the unit’s self-locking properties. Sourced through the professional procurement network of Seven Star LLC, the gearmotors are also integrated into municipal water treatment facilities, driving large clarifier agitators and chemical dosing mixers where reliable, smooth, and high-torque speed reduction is critical to maintaining uninterrupted utility processes.

Technical Specifications

Call to Action

To submit a formal Request for Quote (RFQ), verify regional warehouse stock availability, or download complete mechanical CAD drawings for the JIE JRT S Series Helical-Worm Gearmotor, please contact the industrial power transmission division at Seven Star LLC today. Our technical application engineers in Oman are ready to assist with exact gear ratio calculations, mechanical torque matching, and rapid commercial sourcing across the GCC.
