Brand: B&R

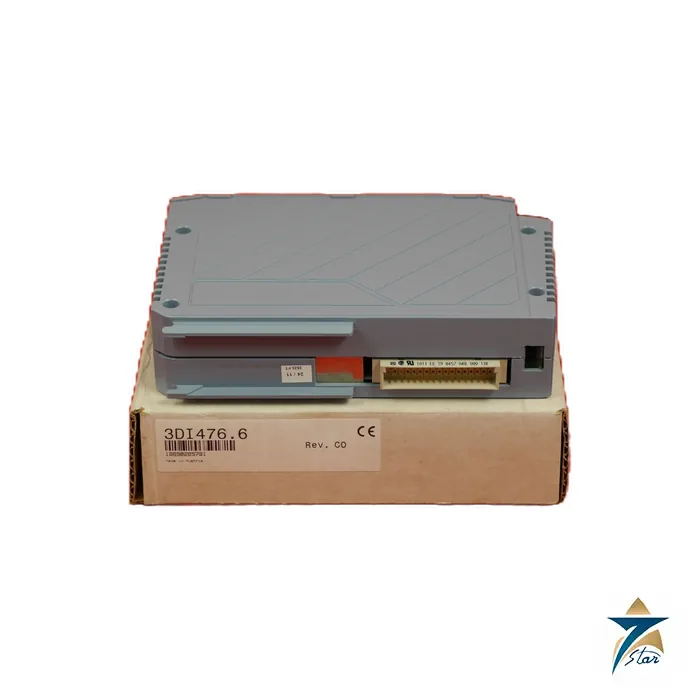

B&R 3DI476.6 Digital Input Module
Description
Sixteen digital inputs arranged in isolated groups
The B&R 3DI476.6 is a System 2005 digital input module with sixteen 24 V DC sink/source inputs. The manufacturer groups the inputs into four isolated groups.
The hardware filter is listed at no more than 1.2 ms. Match the field-device signals, wiring and required response to the input specification of the exact 3DI476.6 execution.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / system | B&R / System 2005 |
| Model | 3DI476.6 |
| Inputs | 16 × 24 V DC, sink/source |
| Grouping | 4 isolated groups |
| Hardware filter | ≤1.2 ms |
| Terminal block | TB170, separately ordered |
| Protection / ambient | IP20 / 0–60 °C |
Terminal and station selection
The TB170 terminal block is separately ordered. Include the required terminal block and station components in the equipment scope rather than assuming a complete wired assembly.
The published environmental specification is IP20 and 0–60 °C. The base arrangement, mounting and cabinet installation must follow the applicable System 2005 documentation.
For a replacement, record the module position, group wiring and connected devices. The sixteen-input count alone does not establish the same isolation or terminal arrangement in another module.
Quotation enquiries
Send the module reference, quantity, field supply, base reference and required TB170 terminal block. Browse PLC & I/O Cards.
Datasheets & Documents
- datasheet B&R 3DI476.6 Digital Input Module — Official English Technical Documentation Download
Reviews (0)
About brand
B&R develops industrial automation equipment for machine builders and manufacturing systems. Its portfolio includes controllers, modular I/O, industrial computers, operator interfaces, motion equipment and engineering software. X20 modules combine with the specified bus and terminal components; ACOPOS and motor selections require matching electrical, feedback and mechanical configurations. B&R is based in Austria and is a member of the ABB Group. For installed-system replacements, the complete order code, firmware, terminal arrangement and application documentation help identify the required execution. Send Seven Star LLC the equipment references, quantities and system details for quotation enquiries in Oman and the GCC.
Related products
Frequently Asked Questions
How many inputs are provided?
Sixteen 24 V DC inputs.
How are the inputs grouped?
The manufacturer lists four isolated groups.
What filter time is specified?
The hardware filter is listed at no more than 1.2 ms.
Is the TB170 terminal block included?
The terminal block is separately ordered.
What should be provided for a replacement?
Send the full model, base arrangement, group wiring, field supply and terminal-block requirements.
