Allen-Bradley 1756-L73S GuardLogix 5570 Safety Controller 8M/4M
Description
A GuardLogix 5570 primary controller for SIL 3 safety tasks

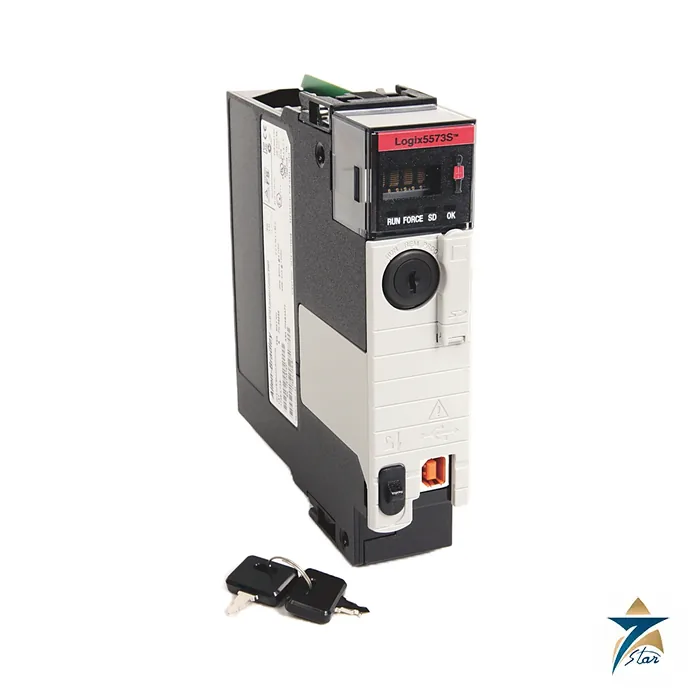

The Allen-Bradley 1756-L73S is a GuardLogix 5570 primary controller with 4 MB of standard user memory and 2 MB of safety memory (the catalog description reads 8M/4M for the paired total). It combines ordinary ControlLogix control with a safety task in one chassis, so emergency stops, light curtains and guard interlocks can share the same controller and network as the process logic.
To reach the highest safety integrity level the L73S is paired with a 1756-L7SP safety partner placed in the slot immediately to its right. The two modules together occupy two slots, and each takes one slot of the chassis. The safety partner holds a mirror of the safety program and the two processors compare results, which is how the single-channel primary reaches the higher integrity level.
Technical specifications
| Parameter | Specification |
|---|---|
| Catalog number | 1756-L73S (conformal-coated 1756-L73SK; partner 1756-L7SP) |
| Standard user memory | 4 MB |
| Safety memory | 2 MB (partner configured to match) |
| I/O memory | 0.98 MB |
| Digital I/O, max | 128,000 |
| Analog I/O, max | 4000 |
| Non-volatile memory | 1 GB SD card (1784-SD1), pre-installed |
| Energy storage | 1756-ESMCAP shipped installed; ESMNSE and ESMNRM options |
| Backplane current | 5 mA at 1.2 V DC; 800 mA at 5.1 V DC |
| Power dissipation | 2.5 W (8.5 BTU/hr) |
| Weight, approx | 0.25 kg (0.55 lb) |
| Slot width | 2 slots with the safety partner; partner must be directly to the right |
| Programming languages, standard tasks | Ladder diagram, structured text, function block diagram, sequential function chart |
| Programming language, safety task | Ladder diagram only |
| Operating temperature | 0 to +60 C |
| Functional safety rating | Capable of SIL CL 3 (IEC 61508), Category 4 and PLe (EN ISO 13849-1) when used as described in the GuardLogix 5570 safety reference manual |
| Enclosure / temperature code | Open-style; T4 |
Safety design points
A GuardLogix project keeps a safety task separate from the standard tasks. The safety task is limited to ladder diagram, while the remaining tasks can use the full set of IEC 61131-3 languages the technical data lists. Safety I/O can be distributed over EtherNet/IP, ControlNet or DeviceNet through the network modules the data sheet names, so the safety network does not have to be a separate wiring system. Typical Gulf uses are burner management, compressor trip logic and emergency shutdown subsystems in packaged units, where the same engineering tool programs both the process and the safety logic.
Selection and verification
Check three things before ordering: that the safety partner is on the order, the firmware revision combination shown on the safety certificate, and the chassis slot plan so the partner sits directly right of the primary. The TUV functional-safety statement in the technical data applies only with the specified firmware revisions, and the safety application must follow the manufacturer safety reference manual. Use this page as a guide only and confirm requirements against the SIL verification of your own safety function.
Documents and quotation
The technical data below includes the GuardLogix 5570 section with memory, power and environmental tables. For related hardware browse the PLC & I/O Cards category or send the catalog number and quantity to Seven Star LLC, an independent supplier based in Muscat.
