Omron CJ1W-ID211 CJ-Series 16-Point 24 VDC Input Unit

Overview

The Omron CJ1W-ID211 is a 16-point 24 V DC input unit for the Omron CJ-series programmable controller family. It receives ON/OFF signals from field devices such as limit switches, pushbuttons, proximity sensors, pressure switches and relay contacts, and passes them into the I/O memory of the CPU Unit. The unit wires through a removable 18-point terminal block, occupies one word of I/O memory and draws a maximum of 80 mA from the 5 V internal bus.

CJ1 and CJ2 PLCs are widely used on skids, packaged machinery, water treatment panels and utility systems supplied into Oman and the GCC, and the CJ1W-ID211 is one of the most common modules in those racks. Seven Star LLC supplies the Omron CJ1W-ID211 for new panels and for like-for-like replacement, with engineering support in Muscat for maintenance teams in Muscat, Sohar, Duqm and Salalah.

Working Principle

Each input channel of the Omron CJ1W-ID211 is a current-sinking or current-sourcing DC circuit with an input impedance of 3.3 kΩ, drawing about 7 mA at the rated 24 V DC. The datasheet guarantees an ON state at 14.4 V DC and 3 mA minimum, and an OFF state at 5 V DC and 1 mA maximum, which gives a clear band between a true signal and leakage from two-wire sensors or long cables. The 24 V DC CJ-series inputs can be connected to devices with either NPN or PNP outputs, with the same polarity used on one common, so the unit fits mixed sensor populations without selecting a different module.

Signals in the Omron CJ1W-ID211 pass through an internal filter before being read by the CPU. ON and OFF response times are 8.0 ms maximum by default, and the digital input filter can be set between 0 and 32 ms in the PLC Setup to suppress contact bounce or electrical noise from nearby drives and contactors. The input circuits are isolated from the internal logic, with 20 MΩ minimum insulation resistance and 1,000 V AC dielectric strength between the external terminals and the GR terminal, so field-side disturbances do not reach the CPU.

Engineering Design of the Omron CJ1W-ID211

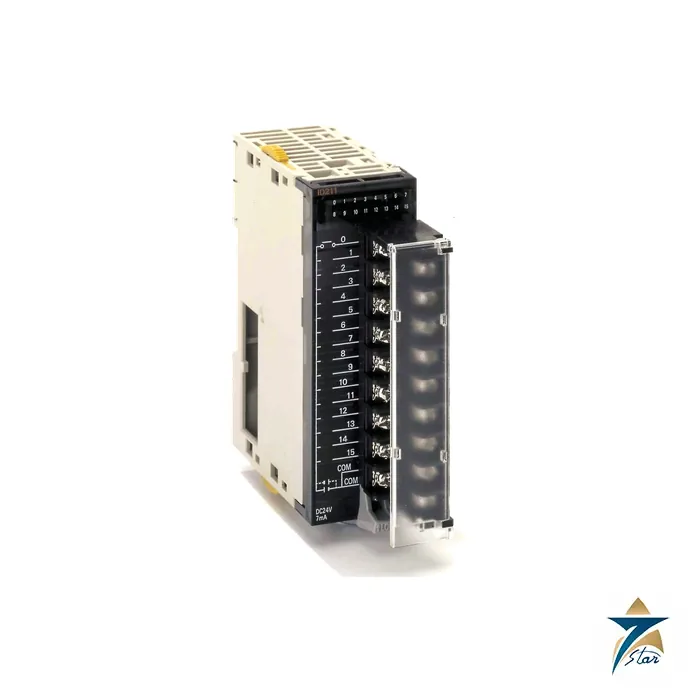

The Omron CJ1W-ID211 follows the bookshelf-style CJ format: it locks to its neighbours with sliding connectors and yellow latches, with no backplane needed, and mounts on DIN rail together with the CPU Unit, power supply and other CJ units. The front carries 16 input indicators numbered 0 to 15 so technicians can check field signals at a glance. Field wiring lands on a removable 18-point terminal block with a hinged transparent cover; the block can be unplugged for unit replacement without disturbing the wiring.

All 16 inputs of the Omron CJ1W-ID211 share one common (16 points per common, one circuit). At 24 V DC all 16 points may be ON simultaneously; the datasheet derating curve shows that at the 26.4 V upper input limit all 16 points can be ON at 45 °C, reducing to 12 points at 55 °C. The unit weighs 110 g maximum, belongs to the CJ1 basic I/O group, and can be mounted on NJ-series and CJ-series racks.

Key Features

The Omron CJ1W-ID211 gives a CJ-series rack the following input capabilities:

• Sixteen 24 V DC inputs on a single common in a compact one-word unit.
• Rated input voltage range of 20.4 to 26.4 V DC with 7 mA typical input current per point.
• Compatibility with NPN or PNP sensor outputs, using the same polarity on the common.
• Default ON and OFF response time of 8.0 ms, adjustable from 0 to 32 ms in the PLC Setup for noise immunity.
• Removable 18-point screw terminal block that keeps field wiring in place during unit replacement.
• Sixteen front-panel LEDs that show the state of every input for quick fault finding.
• Low internal current consumption of 80 mA at 5 V DC, helping power budgets on fully loaded racks.
• Insulation resistance of 20 MΩ and dielectric strength of 1,000 V AC between external terminals and GR.

Industrial Applications

The Omron CJ1W-ID211 is typically used to collect discrete status signals on packaged equipment: pump running and trip feedback in water and wastewater stations, valve open and closed limit switches on filtration and dosing skids, level switches in tanks, door and emergency-stop status on machinery, and pressure and flow switches on compressor and chiller packages. On RO desalination and district cooling plants in Oman, CJ racks frequently combine this input unit with relay output units for start/stop commands.

Plant engineers maintaining Omron-based panels in the Sohar and Salalah industrial zones often keep a spare Omron CJ1W-ID211 on the shelf, because a failed input unit can stop an entire skid. Seven Star LLC supplies the unit as a trusted supplier together with the matching

Omron CJ1W-OC211 16-point relay output unit

Technical Specifications

The Omron CJ1W-ID211 specifications below are taken from the Omron CJ-series Input Units datasheet (CJ1W-ID/IA).

How to Order

To order the Omron CJ1W-ID211, send Seven Star LLC an RFQ with the quantity, the CPU model in your rack and any other CJ-series units you need. Our automation team in Muscat will confirm availability and lead time, check rack power and I/O allocation if required, and include the Omron CJ-series Input Units datasheet for download. Seven Star LLC supplies Omron PLC components across Oman and the GCC with engineering support in Muscat.
