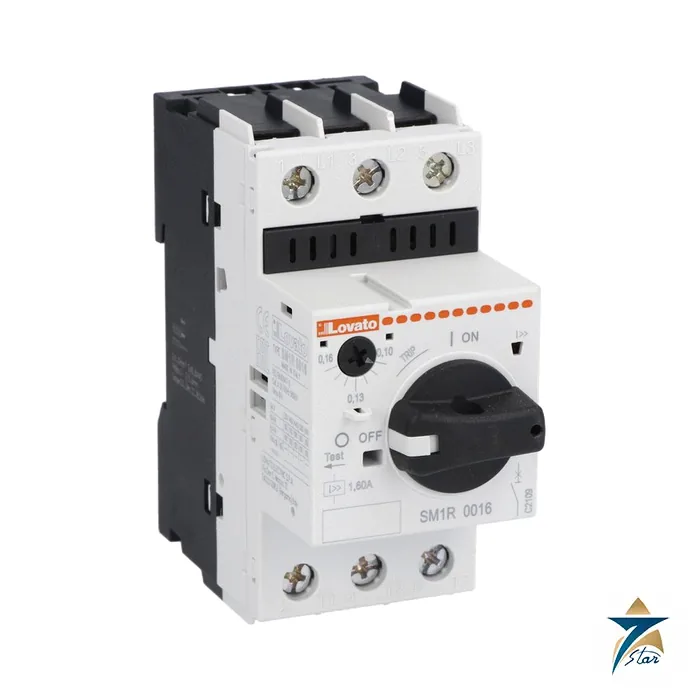

Lovato SM1R1400 9-14 A Motor Protection Circuit Breaker
Description
Thermal-magnetic starter protection set between 9 and 14 A
Where a motor feeder needs a switch, overload protection and short-circuit protection in one place, the three-pole SM1R1400 from the Lovato Electric SM1 range does all three; the overload dial adjusts over 9-14 A.
Rated current In is 14 A; the thermal release adjusts 9-14 A and the magnetic release trips at 13 x In. Breaking capacity values are listed as 100 kA at 400 V, 100 kA at 440 V and 4 kA at 690 V. The tripping class is 10A.
Technical specifications
| Parameter | Specification |
|---|---|
| Order code | SM1R1400 |
| Product designation | Motor protection circuit breaker |
| Product type designation | SM1R |
| Number of poles | 3 |
| Magnetic protection | yes |
| Thermal protection | yes |
| Phase failure detection | yes |
| Rated insulation voltage Ui IEC/EN | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated frequency | 50/60 Hz |
| Thermal trip adjustment range | 9-14 |
| Rated current (In) | 14 A |
| Magnetic tripping | 13 x In |
| Power dissipation per pole (min) | 1.13 W |
| Power dissipation per pole (max) | 2.73 W |
| Operational short-circuit current breaking capacity (Ics) at AC, 230V | 100 kA |
| Operational short-circuit current breaking capacity (Ics) at AC, 400V | 100 kA |
| Operational short-circuit current breaking capacity (Ics) at AC, 440V | 42 kA |
| Operational short-circuit current breaking capacity (Ics) at AC, 500V | 42 kA |
| Operational short-circuit current breaking capacity (Ics) at AC, 690V | 2 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 230V | 100 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 400V | 100 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 440V | 100 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 500V | 42 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC, 690V | 4 kA |
| Tripping class | 10A |
| Mechanical life | 100000 cycles |
| Electrical life | 100000 cycles |
| Operating temperature (min) | -20 °C |
| Operating temperature (max) | +60 °C |
| Storage temperature (min) | -50 °C |
| Storage temperature (max) | +80 °C |
| Compensation temperature (min) | -20 °C |
| Compensation temperature (max) | +50 °C |
| Max altitude | 3000 m |
| Operating position, normal | Vertical plan |
| Fixing | Screw / DIN rail 35mm |
| Weight | 390 g |
| Motor Disconnect, at 240V | 30 kA |
| Motor Disconnect, at 480V | 30 kA |
| Motor Disconnect, at 600V | 30 kA |
| protection | 200A class J |
| Group Motor Installation, at 480V | 30 kA |
| Group Motor Installation, at 600V | 30 kA |
| Maximum UL/CSA horsepower ratings single-phase, 110V-120V | 3/4 HP |
| Maximum UL/CSA horsepower ratings single-phase, 220V-240V | 2 HP |
| Maximum UL/CSA horsepower ratings three-phase, 3-pole, 200V-208V | 3 HP |
| Maximum UL/CSA horsepower ratings three-phase, 3-pole, 220V-240V | 3 HP |
| Maximum UL/CSA horsepower ratings three-phase, 3-pole, 440V-480V | 10 HP |
| Maximum UL/CSA horsepower ratings three-phase, 3-pole, 550V-600V | 10 HP |
Reading the ratings
A motor with a full-load current between 9 and 14 A fits this device. Set the thermal dial to the nameplate value, not to a higher figure for margin, since the dial is the overload setting.
At 400 V the breaking capacity is 100 kA (Icu) and 100 kA (Ics). Compare that with the fault level at your board, and look at the 440 V to 690 V columns where the figures can drop sharply.
Installation and typical use
These breakers replace the fuse-plus-overload-relay combination in many direct-on-line starters. Combined with a contactor of matching size they form a type-coordinated starter in a width of about 45 mm.
The device weighs 390 g and clips onto a 35 mm DIN rail. Heat loss of 1.13 W to 2.73 W per pole is small but adds up in a crowded motor control centre.
Documents and quotation
The figures above are those printed in the manufacturer’s datasheet for SM1R1400, supplied here as an attached English PDF from the Lovato catalogue. Please confirm the motor full-load current, the supply voltage and the prospective short-circuit current at the panel before you order, and note that the manufacturer may revise datasheet values. Related items are listed under circuit breakers. To request SM1R1400, send the quantity and delivery location with the quotation form; Seven Star LLC is an independent supplier based in Muscat.
