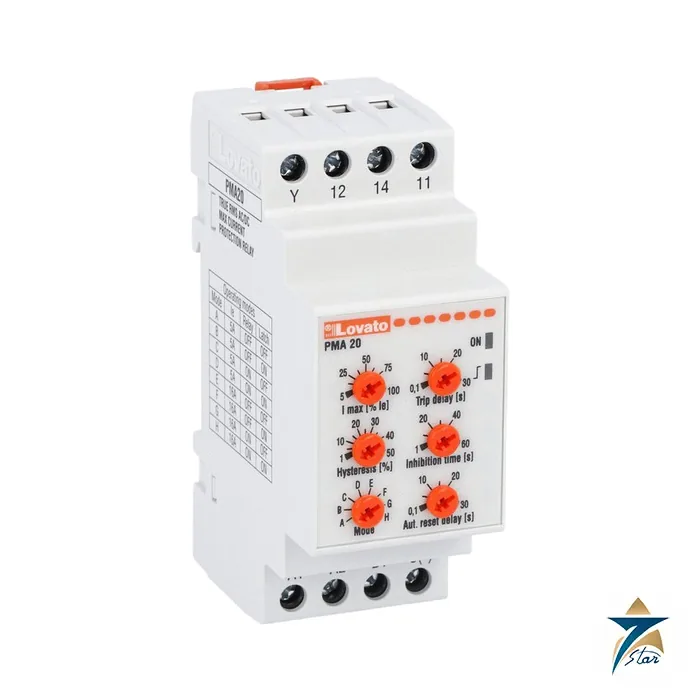

Lovato PMA20240 PMA20 Current Monitoring Relay

Name: Lovato PMA20240 Monitoring Relay | Seven Star LLC
Brand: Lovato Electric
SKU: PMA20240

Description

Current monitoring relay for overload and underload detection

The PMA20240 is a current monitoring relay of the Lovato Electric PMA20 family for single-phase circuits. Its function is described as: ac/dc maximum current monitoring relay. Rated current Ie is 5 or 16 A, connected directly or through a current transformer, and the relay runs from an auxiliary supply of 24-240VAC/DC.

The set-point is adjustable (5-100 % of Ie) with a tripping delay of 0.1-30 s, so a short start-up peak can be ignored while a sustained overload is caught.

Technical specifications

Parameter	Specification
Order code	PMA20240
Product designation	Current monitoring relays
Product type designation	PMA20
Description	AC/DC maximum current monitoring relay
Type of system	Single-phase
Auxiliary supply voltage Us	24-240VAC/DC
Operating voltage range	0.85-1.1 Us
Rated frequency	50/60 ±5% Hz
Power consumption Max	3.2 VA
Power dissipation Max	1.6 W
Rated current (Ie)	5 or 16 A
Overload capacity	5Ie for 1s – 160A for 10ms – Constant 16A
Connection	Direct or by current transformer
Current set-point (% Ie) (max)	5-100 %
Tripping delay	0.1-30 s
Resetting time	0.1-30 s
Resetting hysteresis	1-50 %
Inhibition time	1-60 s
Type of reset	Automatic or manual
External input	Resetting / Inhibition
Repeat accuracy	±1 (with constant parameters) %
Number of relays	1
Relay state	Normally energised / De-energised (selectable)
Contact arrangement	1 changeover SPDT
Rated operational voltage AC (IEC)	250 VAC
Maximum switching voltage	400 VAC
IEC Conventional free air thermal current Ith ≤ 40°C	8 A
UL/CSA and IEC/EN 60947-5-1 designation	B300
Electrical life (with rated load)	100000 cycles
Mechanical life	30000000 cycles
Modular version	2U
Functions and protections provided	Maximum AC/DC current
Indication	1 green LED for power on / inhibition and 1 red LED for tripping
Rated insulation voltage Ui	415 V
Rated impulse withstand voltage Uimp	4 kV
Operating frequency withstand voltage	2.5 kV
Operating temperature (min)	-20 °C
Operating temperature (max)	+60 °C
Storage temperature (min)	-30 °C
Storage temperature (max)	+80 °C
Execution (n° of modules)	2
Material	Self-extinguishing polyamide
Mounting	Modular DIN 43880 housing
IEC degree of protection	IP40 on front; IP20 at terminals
Dimensions (W x H x D)	35.8 x 104.7 x 64.9 mm
Weight	121 g

Selecting the relay

Use it where a motor current or heater current must be supervised without a full protection relay: pump dry-run detection through a drop in current, blocked conveyors through rising current, or heater burn-out through zero current.

Select the 5 A or 16 A range through the terminals as the datasheet describes, and use an external current transformer for larger loads.

Applications and wiring

The relay mounts on DIN rail in a modular enclosure and uses screw terminals. Its inhibition time lets the starting current pass before monitoring begins, and the reset can be automatic or manual.

For panel design and commissioning, the practical figures to keep at hand are: dimensions (W x H x D) 35.8 x 104.7 x 64.9 mm; weight 121 g; mounting Modular DIN 43880 housing; operating temperature (min) -20 °C; operating temperature (max) +60 °C; storage temperature (min) -30 °C; storage temperature (max) +80 °C; execution (n° of modules) 2; material Self-extinguishing polyamide; IEC degree of protection IP40 on front; IP20 at terminals. These come straight from the datasheet and are repeated here so that the key installation limits are visible without opening the PDF.

Documents and quotation

Attached is the English datasheet that Lovato Electric’s online catalogue generates for PMA20240; the specification table above reproduces its values. Please confirm the supply voltage and system type, the contact arrangement and the DIN-rail space available before you order, and note that the manufacturer may revise datasheet values. Browse controllers & data acquisition for alternatives. To order PMA20240, submit the quotation form with your quantity and site; Seven Star LLC, an independent supplier in Muscat, handles the reply.
