Brand: Lovato Electric

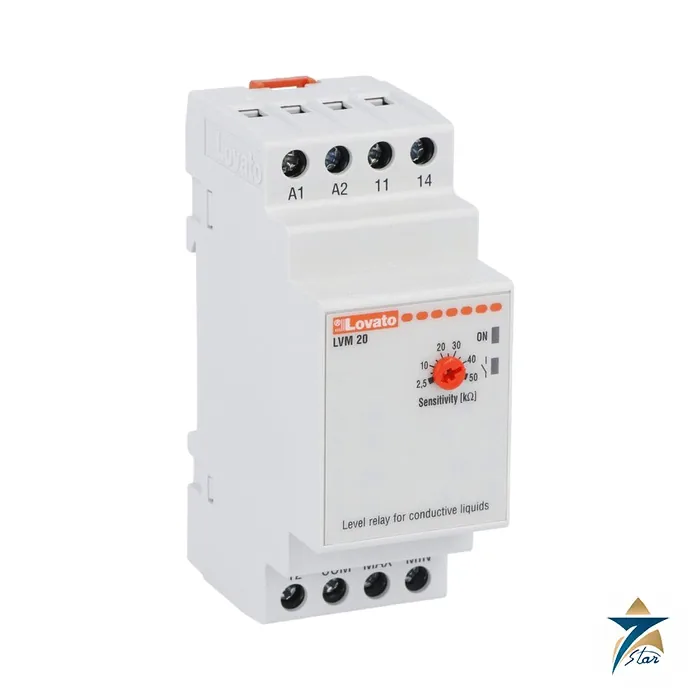

Lovato LVM20A240 LVM20 Level Control Relay

Name: Lovato LVM20A240 Monitoring Relay | Seven Star LLC
Brand: Lovato Electric
SKU: LVM20A240

Description

Level relay with adjustable electrode sensitivity

The LVM20A240 is a modular level monitoring relay from Lovato Electric. Function: emptying. It senses the conductive liquid between 3 electrodes and works with SN1, SCM, CGL, PS31 or PS3S electrodes and holders, as the datasheet lists.

Sensitivity is adjustable (2.5-50 adjustable kΩ), the electrode voltage is 7.5 VAC so there is no electrolysis wear on the probes, and the relay supply is 220-240 VAC with a power consumption of 3.5 VA.

Technical specifications

Parameter	Specification
Order code	LVM20A240
Product designation	Level control relay for emptying function. Single voltage. Modular version
Product type designation	LVM20
Function	Emptying
Supply voltage Type	Single voltage
AC (min)	220 VAC
AC (max)	240 VAC
Operating voltage range	0.85-1.1 Us
Rated frequency	50/60 Hz
Power consumption Max	3.5 VA
Power dissipation Max	1.8 W
Number of connectable electrodes	3
Type of electrode	Electrode and electrode holders: SN1 / SCM / CGL / PS31 / PS3S or similar
Electrode voltage	7.5 VAC
Sensitivity	2.5-50 adjustable kΩ
Tripping time	≤0.6 s
Resetting time	≤0.75 s
Number of relays	1
Relay state	Normally de-energised, energises at tripping
Contact arrangement	1 changeover contact C/O-SPDT
Rated operational voltage AC (IEC)	250 VAC
Maximum switching voltage	400 VAC
IEC Conventional free air thermal current Ith ≤ 40°C	8 A
UL/CSA and IEC/EN 60947-5-1 designation	B300
Electrical life (with rated load)	10⁵ cycles
Mechanical life	30×10⁶ cycles
Indication	1 green LED for power on 1 red LED for relay state
Functions and protections provided	3 detecting electrodes (MIN, MAX and COM), Sensitivity adjustment 2.5…50k Ω, Emptying function
Rated insulation voltage Ui	415 V
Rated impulse withstand voltage Uimp	6 kV
Operating frequency withstand voltage	4 kV
Double insulation Supply / relay / electrode	≤250 VAC
Operating temperature (min)	-20 °C
Operating temperature (max)	+60 °C
Storage temperature (min)	-30 °C
Storage temperature (max)	+80 °C
Execution	Modular DIN rail mounting
N° of modules	2
Material	Self-extinguishing polyamide
Mounting	35mm DIN rail (IEC/EN 60715) or by screws using extractable clips
IEC degree of protection	IP40 on front / IP20 on terminals
Dimensions (W x H x D)	35.8 x 104.7 x 64.9 mm
Weight	215 g

What to match before ordering

Choose the relay by function (emptying, filling, alarms, priority change) and by supply. Higher-number LVM versions add more electrodes, alarms and time delays.

Use clean-water settings for low sensitivity values and a higher kilo-ohm limit for conductive but contaminated liquids; check the datasheet for the allowed ranges.

Where it is used

Typical use is water storage tanks, sump pumps, boiler feed and cooling circuits. Wire the relay output to a pump contactor, fit electrode holders at the maximum and minimum levels and one common electrode at the bottom of the tank.

For panel design and commissioning, the practical figures to keep at hand are: dimensions (W x H x D) 35.8 x 104.7 x 64.9 mm; weight 215 g; mounting 35mm DIN rail (IEC/EN 60715) or by screws using extractable clips; operating temperature (min) -20 °C; operating temperature (max) +60 °C; storage temperature (min) -30 °C; storage temperature (max) +80 °C; execution Modular DIN rail mounting; N° of modules 2; material Self-extinguishing polyamide; IEC degree of protection IP40 on front / IP20 on terminals. These come straight from the datasheet and are repeated here so that the key installation limits are visible without opening the PDF.

Documents and quotation

A copy of the manufacturer’s datasheet for LVM20A240, exported from the Lovato Electric catalogue in English, is attached to this page; every figure in the table comes from it. Please confirm the supply voltage and system type, the contact arrangement and the DIN-rail space available before you order, and note that the manufacturer may revise datasheet values. Related items are listed under controllers & data acquisition. To request LVM20A240, send the quantity and delivery location with the quotation form; Seven Star LLC is an independent supplier based in Muscat.

Datasheets & Documents

Datasheet Lovato Electric LVM20A240 datasheet (EN, catalogue export) Download
