KTR ROFLEX Fail-Safe Flexible Shaft Coupling
Description
Compact fail-safe jaw coupling with a short shaft distance

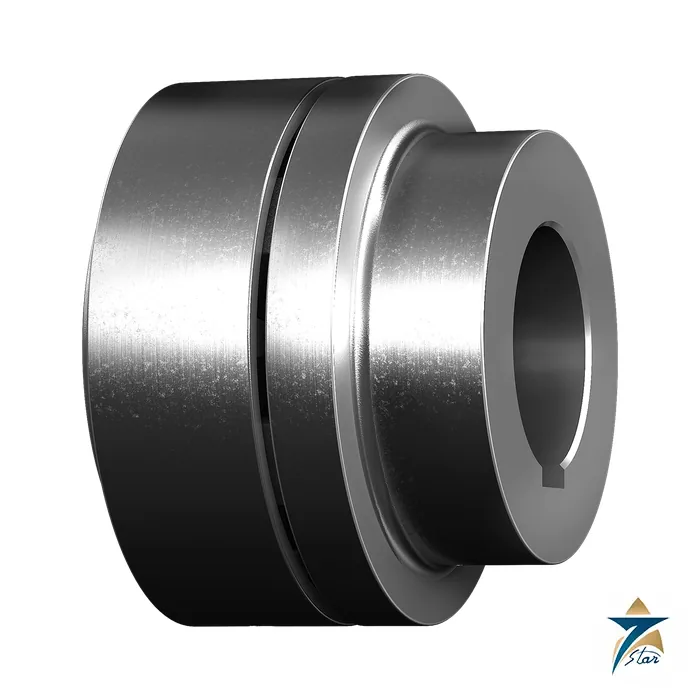

The KTR ROFLEX is a torsionally flexible, fail-safe shaft coupling built around a torsion damper made of elastomer. Its particular feature is the compact design with a short distance between shaft ends (DBSE), which allows space-saving power packs. KTR states that ROFLEX compensates axial, radial and angular displacement, damps shocks and reduces torsional vibration, and that it is approved for use in potentially explosive atmospheres under ATEX and EAC certification.
The values below come from KTR operating and assembly instructions KTR-N 49310 EN (edition 6) for type N and the split version type SH.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | KTR Systems GmbH, Rheine, Germany |
| Coupling type | Torsionally flexible, fail-safe jaw coupling with torsion damper |
| Types | N (cast iron and sinter material) and SH (split cam section, cast iron) |
| Sizes | 68 to 280 (type N); 80 to 280 (type SH); size 68 only in sinter material |
| Rated torque TKN | 65 Nm (size 68), 125 Nm (size 95), 1,150 Nm (size 180), 5,000 Nm (size 280) |
| Maximum torque TK max. | 180 Nm (size 68) to 13,750 Nm (size 280) |
| Torsion damper material | Polyurethane (PUR) for size 68; Perbunan (NBR) from size 80 |
| Maximum finish bore, type N | 28 mm (size 68), 45 mm (size 95), 85 mm (size 180), 120 mm (size 280) |
| Maximum finish bore, type SH | 35 mm (size 80), 60 mm (size 125), 110 mm (size 250), 120 mm (size 280) |
| Weight, type N, maximum bore | 0.6 kg (size 68), 4.5 kg (size 125), 38.1 kg (size 280) |
| Axial displacement Ka | Plus or minus 1.0 mm (sizes 68 to 95) to plus or minus 2.75 mm (sizes 250 and 280) |
| Radial displacement Kr at 1500 rpm | 0.20 mm (size 68) to 0.50 mm (size 280) |
| Temperature classes | T5: -30 °C to +75 °C; T6: -30 °C to +60 °C; ambient limited to +75 °C by the damper material |
Type N or type SH
Type N is the standard two-hub coupling that is assembled by pushing the machines together. Type SH is the version KTR introduced with a split cam section produced by cracking, aimed at easy servicing; its data table lists the cap screws and tightening torques for the split parts, from 34 Nm to 560 Nm depending on size. In general engineering terms, a split design reduces the work of shifting a motor or driven unit when the damper has to be changed.
KTR states that the torque data refer to the torsion damper only. Shaft-hub connections are the user’s responsibility, and selection should follow DIN 740 part 2 or the KTR catalogue procedure. ROFLEX couplings with attachments that may generate heat, sparks or static charge, such as brake drums, torque limiters or fan impellers, are not permitted in explosive atmospheres without a separate analysis.
Alignment and use in explosive atmospheres
Alignment must keep axial, radial and angular displacement within the speed-dependent table, with only half of the values allowed in explosion group IIC. The ambient temperature range is -30 °C to +75 °C because of the damper material. KTR defines inspection intervals and wear limits for the torsion damper in the explosive-atmosphere enclosure of the instruction, and the damper has to be replaced when the limit is reached.
Documents and quotation
The attached PDF is the KTR operating and assembly instruction for ROFLEX. For an enquiry send the power and speed, shaft diameters and keyways, whether type N or SH is needed, the available shaft distance and the ambient temperature. See Electric Motors and Gear Units for related equipment.
