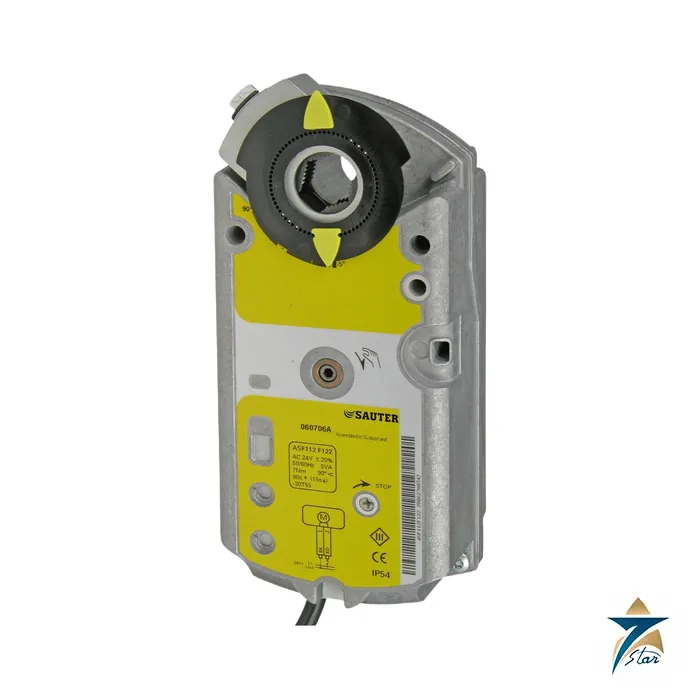

Sauter ASF112F222 7 Nm 24 V Spring-Return Damper Actuator

The ASF112F222 is a spring-return rotary actuator from Sauter for air dampers and shut-off dampers. It delivers 7 Nm of torque and holding torque, runs on 24 V~ or 24 to 48 V=, takes a 2-point signal and carries two built-in auxiliary contacts, so a fire, smoke-purge or frost-protection damper can be driven to a safe position by spring when the supply is removed.

A spring-return actuator for ventilation and shut-off dampers

Spring return matters wherever a damper has to fail to a defined position: outdoor-air dampers that must close on a fan stop, shut-off dampers in air-handling units, or smoke-extract paths. In the 2-point model, power moves the actuator towards 90 degrees until the torque-dependent cut-off acts; when power is removed the motor releases the gear unit and the spring returns the coupling to 0 degrees. The datasheet sizes the actuator for a damper surface of approximately 1.5 m² of smooth-running damper.

Key features from the datasheet

• Spring return in 15 seconds against 90 seconds for the motor-driven 90 degree stroke
• Operates air dampers, shut-off dampers, butterfly valves and multi-leaf dampers
• Self-centring spindle adapter for round spindles of 6.4 to 20.5 mm and square spindles of 6.4 to 13 mm
• Overload protection and end-stop detection with no limit switches; brushless DC motor and maintenance-free gear unit
• Manual adjustment with a hexagon socket, including locking of the gear unit
• Suitable for all fitting positions; angle of rotation can be limited between 0 and 90 degrees in 5 degree steps

Technical specification

Selection and ordering guide

The F1xx types have no auxiliary contacts and the F2xx types add double auxiliary contacts. The last digit selects the voltage and the ASF113 is the 3-point version.

Auxiliary switches and potentiometers cannot be added later, so choose the F2xx type at order time if end-position feedback is needed.

Installation and operation notes

• The actuator plugs directly on the damper spindle and is clamped by the self-centring lever; the mounting direction sets the direction of rotation of the safety function.
• Several actuators with different torques can run in parallel on one damper group provided the supply voltage stays within tolerance.
• Operating consumption is 2.0 W, 3.0 VA for the 24 V type; at standstill it still draws 1.9 W, 2.9 VA, so allow for holding power in the transformer budget.
• Use the hex spanner supplied to turn and lock the gear unit by hand; it is released again mechanically or when the supply voltage is connected.
• The two-part housing must not be opened.
• Protect the actuator from weather when installed outside a building, as the datasheet recommends.

Applications in Gulf building services

In Oman and the rest of the GCC, air handling is dominated by cooling, so outdoor-air and return-air dampers modulate or shut constantly through summer. A 24 V spring-return actuator with end-position contacts is a common choice for fresh-air intake dampers on packaged units, kitchen and car-park extract paths and fire-rated damper assemblies where the building code requires a failsafe position. The -32 to 55 degree C ambient range covers hot ceiling and plant-room spaces, though the datasheet limits it to non-condensing conditions.

Selection and installation notes

A building automation device is selected from the signal type, the supply voltage, the mounting position and the system it connects to. Check the wiring diagram and the cable type, keep sensor cables away from power wiring, confirm the addressing or scaling in the controller, test each point at commissioning and record the final settings. Use the mounting accessories and the installation position given in the data sheet.

A spring-return actuator must be fitted to the damper shaft with the right coupling and torque margin, and the damper should be tested for a full spring-return stroke at commissioning.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Accessories and related items

Frequently asked questions

What does the F222 suffix mean?

It identifies the 24 V~/24 to 48 V= version with 2-point control and double auxiliary contacts, as listed in the datasheet type overview.

How fast does the spring return?

The spring drives the coupling back to 0 degrees in 15 seconds, while the motor needs 90 seconds for a 90 degree stroke.

Can I add auxiliary contacts later?

No. The datasheet states that no auxiliary switches or potentiometers can be installed subsequently, so the F2xx type is chosen at order time.

How large a damper can it move?

About 1.5 m² of smooth-running damper surface is the recommended value for the 7 Nm torque.

Who supplies the ASF112F222 in Oman?

Seven Star LLC is an independent supplier in Muscat and quotes against the exact order code. Confirm voltage, spindle size and contact needs before ordering.

Documents and quotation

The official Fr. Sauter AG product data sheet 51.033 for the ASF 112 and 113 (edition 2015) is linked on this page. Send the order code, quantity and damper details to request a quotation. See more in Valve Actuators.
