Sauter TUC407F001 Safety Temperature Limiter 95-130 C EN 14597

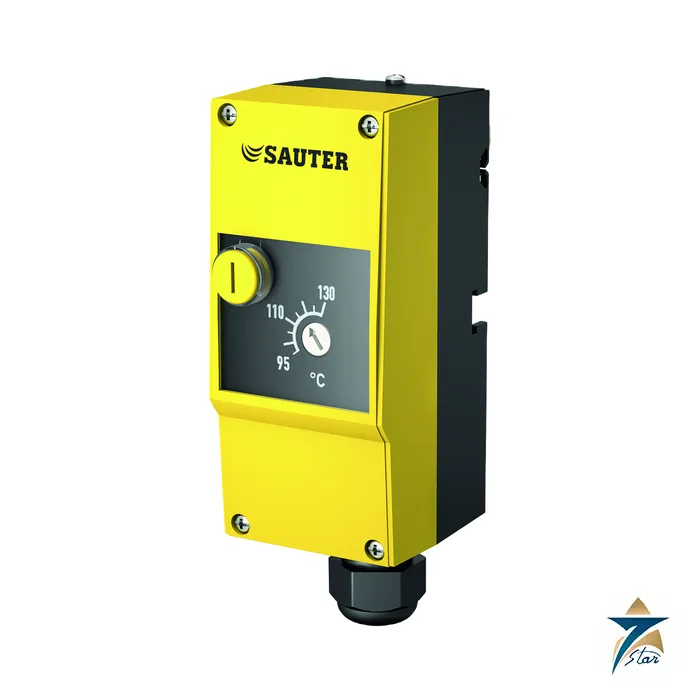

The TUC407F001 is the safety temperature limiter (STB) version of the Sauter TUC universal thermostat. It has an adjustable limit between 95 and 130 degrees C, a 0.7 m capillary tube with a 76 mm sensor cartridge and a 100 mm brass thermowell, and the contact switches to the safe side if the capillary tube breaks, which is the property that qualifies an STB for safety duty on hot-water and heat-transfer plant.

A fail-safe limiter for hot-water and heating plant

A temperature limiter (TB or STB) is not a controller: once the set temperature is exceeded it latches and stays off until the temperature has fallen by at least the minimum switching difference and someone presses RESET with a tool. The datasheet states that the STB has the same functions as the TB, but the contact also switches to the safe side if the capillary tube is damaged. Because it is classified as category IV under the Pressure Equipment Directive 2014/68/EU, the STB is described as suitable for safety applications.

Key features from the datasheet

• Safety temperature limiter with fail-safe action on capillary break
• Certified to EN 14597 (TÜV ID 0000046121 for TUC207F003, TUC407F001 and TUC407F002)
• PED 2014/68/EU category IV for the safety types
• Temperature compensation minimises the shift of the change-over point
• Setpoint adjustable only with a tool; RESET required after a trip
• 100 mm thermowell supplied (max. 12 bar); two housings can be joined as a monitor-limiter double thermostat

Technical specification

With the TUC407F001 use only the supplied thermowell or a stainless-steel thermowell (part numbers 0393022*** or 0392022***).

Selection and ordering guide

The TUC range has monitors (TW), safety monitors (STW), limiters (TB) and safety limiters (STB). The safety types in the datasheet are listed below with the standard variants for contrast.

TUC407F001 and TUC407F002 differ only in thermowell length (100 mm and 150 mm); the longer one suits thicker insulation or larger pipe diameters.

Installation and operation notes

• Temperature setpoint is changed only with a tool; the RESET button is also pressed with a tool after the temperature has fallen.
• Use temperature-resistant cables (above 90 degrees C) on the terminals.
• Fit the thermowell in the pipe or vessel and keep the sensor medium fill below 160 degrees C.
• Setpoint accuracy: the contact switches 0 to -9 K below the adjustment point on STB types.
• For inductive loads add an RC circuit: capacitance in microfarads at least the operating current in amperes, resistance about the coil resistance.
• The thermowell material (brass or stainless steel) is the operator’s responsibility to check against the fluid.
