A 100 MHz, four-channel bench scope with deep memory

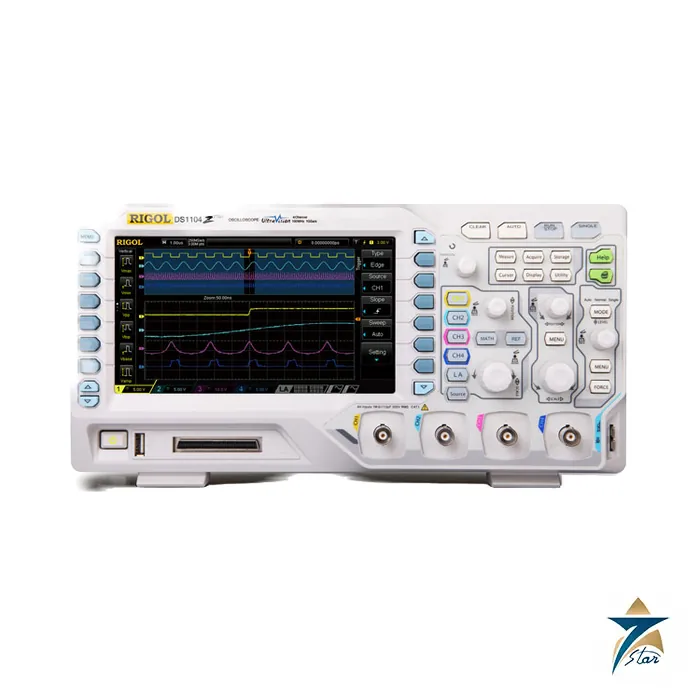

The Rigol DS1104Z Plus is the 100 MHz, four-analog-channel model of the DS1000Z Plus line. It samples at up to 1 GSa/s on one channel, stores up to 24 Mpts per acquisition and refreshes up to 30,000 waveforms per second on a 7 inch WVGA (800 x 480) intensity-graded colour display. RIGOL aims the family at design, debugging and education.

It suits workshops, teaching labs and production test benches that need four channels. Browse the wider Portable Test & Measurement range for probes and companion instruments.

What the datasheet lists as the main features

UltraVision acquisition: up to 24 Mpts memory, 30,000 wfms/s capture and 60,000-frame hardware recording and playback.
Four analog channels, with 16 digital channels available after the MSO upgrade option.
Serial trigger and decoding for RS232/UART, I2C and SPI, plus parallel decoding.
USB Host, USB Device, LAN (LXI) and AUX output; 3.2 kg.

Technical specification

Acquisition and vertical

Parameter	Specification
Order code	DS1104Z Plus
Analog bandwidth (-3 dB)	DC to 100 MHz (single-shot bandwidth also 100 MHz)
Calculated rise time	3.5 ns
Analog channels	4 (digital channels: 16 available after MSO upgrade)
Real-time sample rate	1 GSa/s (1 channel), 500 MSa/s (2 channels), 250 MSa/s (3 or 4 channels)
Memory depth	24 Mpts (1 ch), 12 Mpts (2 ch), 6 Mpts (3/4 ch)
Waveform capture rate	Up to 30,000 wfms/s (dots display)
Recording and playback	Up to 60,000 frames in hardware
Peak detect / averaging	4 ns glitch capture; 2 to 1024 averages; high resolution up to 12 bit
Vertical resolution	8 bits
Vertical scale	1 mV/div to 10 V/div
Offset range	+/-2 V (1 to 499 mV/div); +/-100 V (500 mV/div to 10 V/div)
Input impedance / probe ratio	1 MOhm +/-1 % with 15 pF +/-3 pF; 0.01X to 1000X
Maximum input voltage (1 MOhm)	CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk
DC gain / offset accuracy	Gain +/-4 % FS below 10 mV, +/-3 % FS at 10 mV and above; offset +/-0.1 div +/-2 mV +/-1 % of offset
Bandwidth limit / AC low-frequency response	20 MHz / 5 Hz or less at the BNC
Channel-to-channel isolation	More than 40 dB, DC to maximum bandwidth

Horizontal, trigger and measurement

Parameter	Specification
Timebase	5 ns/div to 50 s/div; YT, XY and Roll modes
Timebase accuracy / drift	25 ppm or less / 5 ppm per year or less
Trigger modes, holdoff	Auto, Normal, Single; level +/-5 div; holdoff 16 ns to 10 s
Trigger types	Edge, pulse, runt, window, Nth edge, slope, video (NTSC, PAL/SECAM, 480P, 576P), pattern, delay, timeout, duration, setup/hold, RS232/UART, I2C, SPI
Automatic measurements	Period, frequency, rise/fall time, widths, duty, delay, phase, Vpp, Vrms, overshoot, area and more; 5 shown at once
Math and FFT	A+B, A-B, AxB, A/B, FFT (Rectangle, Hanning, Blackman, Hamming, Flat Top, Triangle), integral, differential, filters; 6-digit hardware counter

Display, interfaces and general

Parameter	Specification
Display	7.0 inch TFT LCD, 800 x 480, 24-bit colour
Standard ports	USB Host, USB Device, LAN (LXI), AUX output; probe compensation about 3 Vpp, 1 kHz
Power supply	100 to 240 V, 45 to 440 Hz; 50 W maximum; fuse 2 A, T, 250 V
Operating / storage temperature	0 to +50 degC / -40 to +70 degC; operating altitude below 3,000 m
Dimensions (W x H x D)	313.1 x 160.8 x 122.4 mm (handle and legs folded)
Weight	3.2 kg +/-0.2 kg without package; 3.8 kg +/-0.5 kg with package
Calibration interval / warranty	18 months recommended / three years, excluding probes and accessories
Standards listed	EMC Directive 2014/30/EU, IEC 61326-1 Group 1 Class A; safety IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1-12

Choosing between DS1000Z models

The datasheet lists DS1054Z (50 MHz), DS1074Z Plus and DS1074Z-S Plus (70 MHz), and DS1104Z Plus and DS1104Z-S Plus (100 MHz). The DS1104Z Plus has no built-in source; the -S Plus versions add a two-channel 25 MHz function/arbitrary generator, and the DS1054Z has no digital-channel upgrade.

Setup and operation notes from the datasheet

Guaranteed specifications apply once the instrument has run for more than 30 minutes at the specified operating temperature. Cooling is by fan, so keep the vents clear. Remote control uses LAN (LXI) or USB with SCPI; RIGOL names the Ultra Sigma and Ultra Scope PC programs, and the recommended calibration interval is 18 months.

Where it is used in Gulf industry and education

Typical jobs: fault-finding on VFD driver, PLC and sensor interface boards from oil and gas, water and HVAC plants, and teaching labs. For mains-referenced work use a differential probe such as the RP1025D (25 MHz, up to 1400 Vpp) rather than the standard passive probes. The operating range is 0 to 50 degC, so keep it in an air-conditioned workshop or cabin.

Probes and compatible accessories

Standard: four PVP3150 150 MHz passive probes, USB cable, power cord and quick guide. The datasheet also lists current probes (RP1001C to RP1005C, RP1000P supply), high-voltage probes (RP1010H, RP1018H, RP1300H), differential probes (RP1025D, RP1050D, RP1100D), the RPL1116 logic probe and the RM-DS1000Z rack kit.

Selection and installation notes

Test and measurement instruments are selected from the accuracy, the range and the interfaces the work needs. Allow the warm-up time, use probes rated for the voltage and category of the circuit, compensate the probes before measuring, keep the inputs inside the stated limits and keep the calibration current according to your quality system.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Frequently asked questions

Does the DS1104Z Plus have digital channels? Not as shipped. The datasheet says 16 digital channels become available after the MSO upgrade option, which includes the RPL1116 logic probe.

What is the sample rate with all four channels on? 250 MSa/s per channel with three or four channels active; memory then drops to 6 Mpts.

Which serial buses can it decode? RS232/UART, I2C and SPI, plus parallel decoding, two buses at a time.

What are the input voltage limits? On the 1 MOhm input: CAT I 300 Vrms, CAT II 100 Vrms, 1000 Vpk transient overvoltage.

Is Seven Star LLC a RIGOL distributor? No. Seven Star LLC is an independent supplier based in Muscat; it does not act for RIGOL and quotes genuine units on request.

Documents and quotation

Attached: the official RIGOL datasheet (DS1000Z series, DSA20100-2020-05). Please confirm order code, options, accessories and power cord in an RFQ; this page carries no price.
