Brand: Rigol

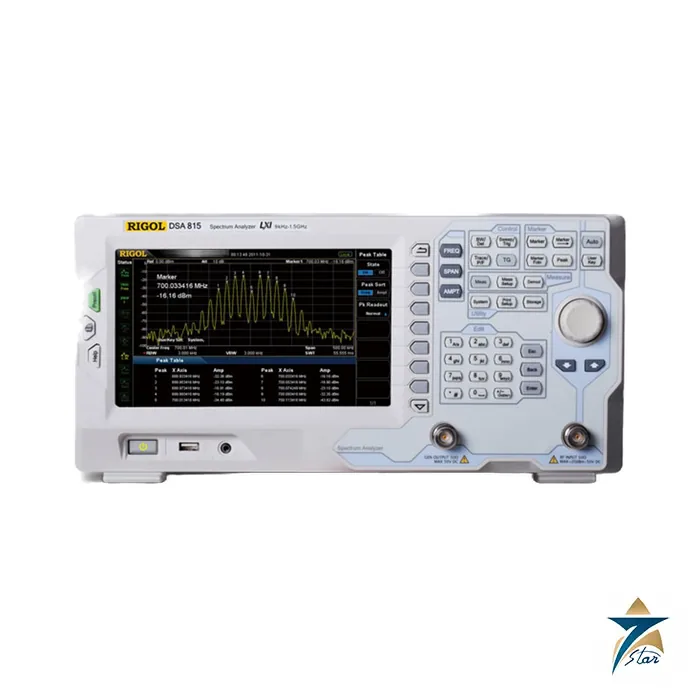

Rigol DSA815-TG 1.5 GHz Tracking Generator Spectrum Analyzer
Description
A 1.5 GHz spectrum analyzer with a built-in tracking generator
The Rigol DSA815-TG is the DSA815 spectrum analyzer with the tracking generator (TG) installed at the factory. It covers 9 kHz to 1.5 GHz with an all-digital IF, resolution bandwidths down to 10 Hz and a measurement range from the displayed noise level to +20 dBm, shown on an 8 inch WVGA display.
The tracking generator outputs a swept signal from 100 kHz to 1.5 GHz that follows the analyzer, so you can measure filters, cables, amplifiers and antennas for gain, loss and return behaviour without a separate source. Browse more instruments in Portable Test & Measurement.
Datasheet highlights
- All-digital IF: 10 Hz minimum RBW, 1 Hz to 3 MHz video bandwidth.
- Preamplifier (20 dB nominal); DANL listed as -135 dBm typical with the preamp on (100 Hz RBW).
- Tracking generator 100 kHz to 1.5 GHz, -20 to 0 dBm output.
- LAN (LXI), USB Host and Device, and optional GPIB via USB-GPIB.
Technical specification
Frequency, bandwidth and noise
| Parameter | Specification |
|---|---|
| Order code | DSA815-TG (DSA815 without TG; DSA832-TG and DSA875-TG extend the range) |
| Frequency range / resolution | 9 kHz to 1.5 GHz / 1 Hz |
| Reference | 10 MHz; initial accuracy under 1 ppm; temperature stability under 2 ppm; aging under 2 ppm per year |
| Phase noise (1 GHz carrier) | Under -80 dBc/Hz at 10 kHz offset; -100 dBc/Hz at 100 kHz (typical) |
| Resolution bandwidth (-3 dB) | 10 Hz to 1 MHz in 1-3-10 sequence; shape factor under 5 (nominal) |
| Video bandwidth | 1 Hz to 3 MHz |
| Frequency span | 0 Hz, 100 Hz to 1.5 GHz |
| DANL, preamp off (RBW = VBW = 100 Hz) | 100 kHz to 1 MHz under -90 dBm (-110 typical); 1 MHz to 1.5 GHz under -110 dBm + 6 x (f/1 GHz) dB (-115 typical) |
| DANL, preamp on (same RBW) | 100 kHz to 1 MHz under -110 dBm (-130 typical); 1 MHz to 1.5 GHz under -130 dBm + 6 x (f/1 GHz) dB (-135 typical) |
| Preamplifier gain | 20 dB (nominal), 100 kHz to 1.5 GHz |
Amplitude, sweep and tracking generator
| Parameter | Specification |
|---|---|
| Measurement range / max input | DANL to +20 dBm; DC 50 V; CW +20 dBm (100 mW); damage level +30 dBm (1 W) |
| Frequency response (10 dB attenuation, vs 50 MHz) | Under 0.7 dB preamp off; under 1.0 dB preamp on |
| Attenuator | 0 to 30 dB in 1 dB steps; switching uncertainty under 0.5 dB |
| Absolute amplitude uncertainty | Under 0.4 dB at 50 MHz, -10 dBm, preamp off, 10 dB attenuation |
| RF input VSWR | Under 1.5 (nominal), attenuation 10 dB or more |
| 1 dB compression | Above 0 dBm (input mixer, 0 dB attenuation) |
| Sweep time | 10 ms to 1500 s (span 100 Hz or more); zero span 20 us to 1500 s |
| Traces / detectors | 3 + math trace; normal, positive-peak, negative-peak, sample, RMS, voltage average; 601 display points |
| Tracking generator | 100 kHz to 1.5 GHz; -20 to 0 dBm in 1 dB steps; flatness +/-3 dB (nominal); N female, 50 Ohm |
| Trigger | Free run, video, external (5 V TTL) |
Interfaces and general
| Parameter | Specification |
|---|---|
| Connectors | RF in and TG out N female 50 Ohm; 10 MHz ref in/out BNC; external trigger BNC (1 kOhm) |
| Interfaces | USB Host and Device (2.0), LAN 10/100 (LXI Core 2011), GPIB via USB-GPIB, PictBridge printing |
| Display | 8 inch TFT, 800 x 480, 64 k colours |
| Power | 100 to 240 V, 45 to 440 Hz; 35 W typical, 50 W maximum with all options |
| Size / weight | 361.6 x 178.8 x 128 mm / 5.15 kg with tracking generator |
| Environment | 0 to 50 degC operating; -20 to 70 degC storage; operating height up to 3,000 m |
| Calibration / warranty | 18 months recommended / three years, excluding probes and accessories |
Choosing a DSA800 code
The datasheet lists DSA815, DSA832, DSA875 and DSA832E (1.5, 3.2, 7.5 and 3.2 GHz), each also with a factory-installed tracking generator (-TG suffix). Pick the -TG version if you need transmission measurements; the signal seamless capture option (SSC-DSA) is listed only for the DSA815.
Operating notes
Specifications are valid when the instrument is within its calibration period, has been stored at least two hours at 0 to 50 degC and has warmed up for 40 minutes. Do not exceed +20 dBm continuous RF power; the protection switch operates above +25 dBm at 10 MHz and higher when the preamp is off. Use attenuators such as the 30 dB, 100 W ATT03301H for high-power sources.
Typical uses
RF and EMC pre-checks, wireless and telecom site work, cable and filter testing, antenna return loss with a VSWR bridge, and electronics education. The EMI-DSA800 kit adds an EMI filter and quasi-peak detector for pre-compliance tests; it is not a substitute for accredited compliance testing.
Options and accessories
Listed items: EMI-DSA800, AMK-DSA800 advanced measurement kit, VSWR-DSA800, Ultra Spectrum PC software, S1210 and S1220 software, VB1032, VB1040 and VB1080 VSWR bridges, NFP-3 near-field probe, RF cable, adaptor and attenuator kits, RM-DSA800 rack kit and BAG-G1 carrying bag.
Selection and installation notes
Test and measurement instruments are selected from the accuracy, the range and the interfaces the work needs. Allow the warm-up time, use cables and attenuators rated for the signal level, keep the inputs inside the stated limits and keep the calibration current according to your quality system. Record the settings used for any test that must be repeated later.
Information needed for a quotation
Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.
Documents and supply information
The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.
Frequently asked questions
What is the DSA815-TG frequency range? 9 kHz to 1.5 GHz for the analyzer and 100 kHz to 1.5 GHz for the tracking generator.
How narrow can the resolution bandwidth go? 10 Hz.
What is the maximum safe input power? CW +20 dBm (100 mW); the damage level is +30 dBm (1 W) and DC must stay under 50 V.
Is a preamplifier built in? Yes, with a nominal 20 dB gain from 100 kHz to 1.5 GHz.
Is Seven Star LLC a RIGOL distributor? No. Seven Star LLC is an independent supplier; send an RFQ from Muscat or anywhere in the Gulf for this model.
Documents and quotation
Official RIGOL datasheet (DSA800/E datasheet, DSD07107-1110-2026-07) attached for reference. Seven Star LLC will confirm code, accessories and options when you send an RFQ; no price shown.
