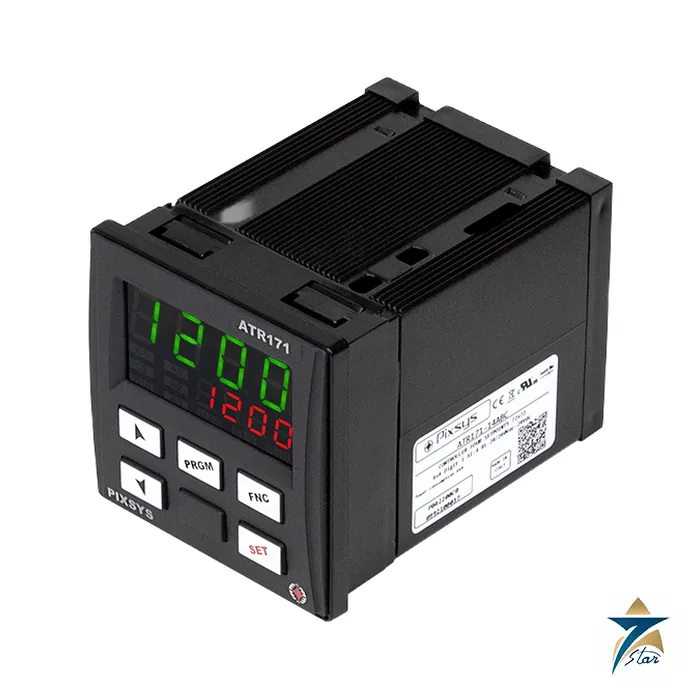

Pixsys ATR171 PID Controller 72×72 mm, 4 Setpoints, Timer

ATR171 is the 72×72 mm member of the Pixsys controller family, a configurable PID controller with a 4-digit green process display, a 4-digit red display, up to four setpoints and a multi-voltage 24 to 230 V AC/DC supply. Four ordering codes cover single-input versions with one to three relays and a dual-input version with analogue output and RS485.

A larger front for programmer, timer and remote-setpoint work

Beyond ordinary PID control the ATR171 carries a small process programmer. The pre-programmed cycle, selected with the operating-mode parameter, ramps to setpoint 1 on a set gradient, goes to setpoint 2 at maximum power, holds for a set time, and then cools to ambient on a second gradient before showing stop. A start/stop digital input can trigger the cycle, and the datasheet describes it as a 3-step cycle. A decremental timer function and a soft-start by gradient in degrees per hour complete the set.

The -23ABC-T version adds a second analogue input. In dual-input mode the process used for control can be AI1, AI2, the mean of both, the difference AI1 minus AI2 or the absolute difference, which suits averaging two thermocouples in a large oven or watching a delta between two points. A remote setpoint mode lets one of the two inputs (4-20 mA or 0-10 V) become the setpoint of the other loop. The manual states that RS485, the pre-programmed cycle and soft-start are disabled while the second input is enabled by the dip switches.

Datasheet highlights

• Up to 4 setpoints, with two-to-four setpoint selection from a digital input on the single-input codes.
• Alarm modes absolute, band, high and low deviation, with optional manual reset, activation delay and dead band.
• Heating/cooling double PID, automatic/manual output, manual or automatic tuning.
• Quick setup with memory cards with or without battery, LabSoftview and EASY-UP codes.
• Front panel in silicon rubber, IP54 (IP65 with gasket).

Technical specification

Ordering codes (datasheet)

Electrical data

Mechanical

Choosing the code

Use -11ABC or -12ABC for a thermostat with one or two relays, -14ABC when three relays are needed (the fourth is a 5 A relay at up to 30 V), and -23ABC-T for two probes, retransmission to a recorder or a Modbus link. Only the -11, -12 and -14 codes carry the digital input functions such as pre-programmed cycle start, hold, run enable and tuning start. The -23ABC-T instead provides the second analogue input and the PNP, volt or mA output.

Notes from the manual

The manual makes the pre-programmed cycle available on -23ABC-T only when the dip switches select serial communication, which turns the second input off. Automatic tuning does not run during a pre-programmed cycle, but manual tuning can be started at any time. When soft-start is used the automatic tuning starts after the soft-start time ends.

For Modbus the slave address and delay are set on parameters 84 and 85. Words may be read in blocks of 20 with functions 0x03/0x04, and written with 0x06 or 0x10; changing words not listed in the manual can cause malfunction.

Applications

The 72×72 size and the programmer suit ovens, kilns, autoclaves and laboratory chambers that follow a simple ramp-soak-cool profile. The timer function adds a counted hold, while the dual-input mean helps with large furnaces where one thermocouple cannot describe the whole chamber.

Related items

Memory cards (codes MEMORY C241 and C243 on the datasheet) and a panel gasket are available. For narrower 32×74 panels see the ATR124 and ATR144; for DIN rail mounting see the DRR244.

Frequently asked questions

How many setpoints does ATR171 support?

Up to four. They can be selected from the keypad or, on the 11, 12 and 14 codes, from a digital input.

Which version has a second input?

ATR171-23ABC-T, with AI2 for TC or RTD, mean/difference modes and remote setpoint.

What cut-out does the panel need?

66.5 x 66.5 mm in a panel 2 to 8 mm thick; the unit is 72 x 72 mm at the front and 99 mm deep.

Does it have a timer?

Yes. A decremental timer can be configured in seconds or minutes and started from the PRGM key or a digital input.

Does Seven Star LLC act as a Pixsys distributor?

No. Seven Star LLC is an independent supplier in Muscat that sources Pixsys products on request.

Documents and quotation

This page carries the official Pixsys datasheet and manual for ATR171. Seven Star LLC is an independent supplier in Muscat and sources Pixsys products on request; tell us the quantity and delivery point to receive a quotation. Always confirm the order code and technical values in the documents first. See more in the product category.
