Brand: Hilti
Hilti HIT-HY 200-R V3 Injectable Hybrid Mortar
Description
The Hilti HIT-HY 200-R V3 is a two-component hybrid injection mortar supplied in foil packs for post-installed anchors and reinforcing-bar connections in concrete. Hilti positions it for structural rebar splices and for anchoring steel baseplates, racking, machinery and guard rails to cracked or uncracked concrete from C20/25 to C50/60, with a longer working time than the faster HIT-HY 200-A V3 grade.
Where a hybrid mortar fits in post-installed connections
Hilti lists the mortar for post-installed rebar connections, for fastening secondary steel such as racking, machinery, guard rails and sound barriers, and for anchoring structural steel columns and beams. It is also listed for strengthening and retrofitting reinforced concrete, including replacing misplaced or missing cast-in rebar. The product page notes a working temperature range from -10 to +40 deg C and use in dry concrete, wet concrete and water-filled drill holes.
The datasheet covers threaded rods HAS and HAS-U (M8 to M30, including HDG, A4 and HCR variants), internally threaded sleeves HIS-N and HIS-RN (M8 to M20), HIT-Z torque-controlled bonded anchors, HAS-D and reinforcing bar from 8 to 32 mm. Hammer-drilled, hollow-drill-bit and diamond-cored holes are covered, the latter with the roughening tool.
Technical specifications
| Parameter | Specification |
|---|---|
| Product type | Two-component hybrid injection mortar, styrene-free |
| Pack | 500 ml foil pack (330 ml also listed); Hilti UAE item 2262131 is 500 ml with two mixers and one extension |
| Base material | Cracked and uncracked concrete C20/25 to C50/60; dry or water-saturated |
| Approvals listed | ETA-19/0601 (HAS, HIS-N, rebar: static, seismic, fire, 50 and 100 years); ETA-25/0584 (120 years); ETA-19/0632 (HIT-Z); ETA-18/0972 and ETA-18/0978 (HAS-D); ETA-25/0669 (SFRC) |
| Seismic | ETA performance category C1 and C2 |
| Installation temperature | -10 to +40 deg C for HAS, HAS-U, HAS-D, HIS-N; +5 to +40 deg C for HIT-Z |
| Base-material temperature ranges | I: -40 to +40 deg C; II: -40 to +80 deg C; III: -40 to +120 deg C |
| Storage and transport | 5 to 25 deg C |
| Threaded rod M8 to M30 | Drill bit 10, 12, 14, 18, 22, 28, 30, 35 mm; embedment 60 to 600 mm; maximum torque 10 to 300 Nm |
| Rebar 8 to 32 mm | Drill bit 10/12 to 40 mm; embedment 60 to 640 mm |
| Cleaning | Manual cleaning allowed for boreholes up to 20 mm with embedment up to 10d in uncracked concrete only |

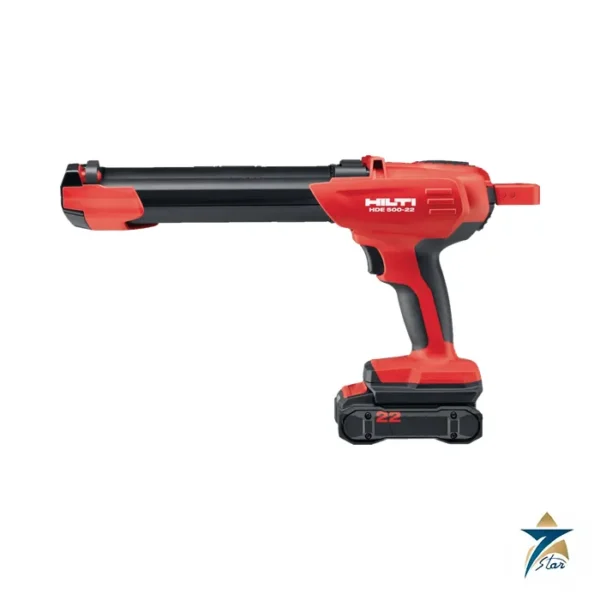

| Dispensers named | HDM, HDE 500-22, HDE 500-A12 |
Working and curing times for HIT-HY 200-R V3
Working time shortens quickly as the concrete warms. The datasheet gives the following values for the R grade, with the A grade for comparison:
| Base material temperature | HIT-HY 200-R V3 working / curing | HIT-HY 200-A V3 working / curing |
|---|---|---|
| -10 to -5 deg C | 3 h / 20 h | 1.5 h / 7 h |
| -5 to 0 deg C | 1.5 h / 8 h | 50 min / 4 h |
| 0 to 5 deg C | 45 min / 4 h | 25 min / 2 h |
| 5 to 10 deg C | 30 min / 2.5 h | 15 min / 75 min |
| 10 to 20 deg C | 15 min / 1.5 h | 7 min / 45 min |
| 20 to 30 deg C | 9 min / 1 h | 4 min / 30 min |
| 30 to 40 deg C | 6 min / 1 h | 3 min / 30 min |
The R grade gives the longer working time: at 30 to 40 deg C it allows 6 minutes against 3 minutes for the A grade. The datasheet temperature is that of the base material, so check the concrete temperature and not only the air temperature.
Selection and ordering checks

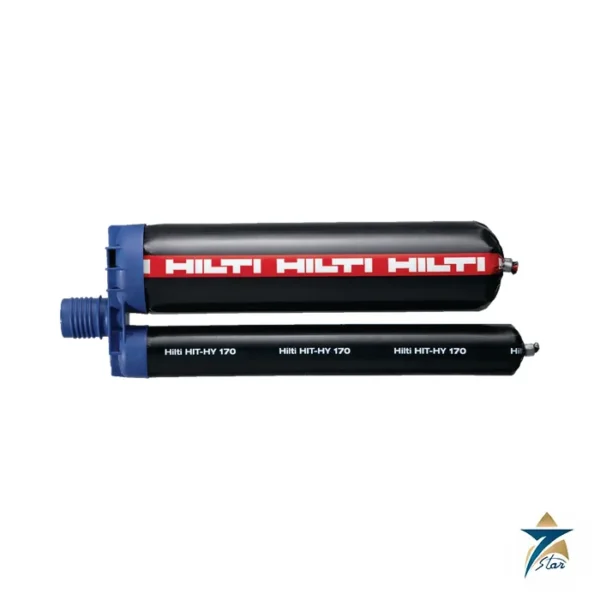

Confirm the anchor element (rod, sleeve, HIT-Z or rebar), diameter and embedment, the concrete condition, the drilling method and the approval the project requires; design is done in Hilti PROFIS Engineering to EN 1992-4, TR 082 or TR 086 as listed. State the dispenser needed, because the pack requires a matching HDM or HDE dispenser, and ask for the exact item number and pack size from the Hilti product page. Siblings in the same selection are HIT-HY 200-A V3 for faster curing, HIT-HY 170 for lighter-duty work and HIT-RE 500 V4 epoxy for heavy-duty anchoring.
Documents and quotation
For a quotation on the HIT-HY 200-R V3, send Seven Star LLC the exact model, quantity and delivery point in Oman or elsewhere in the GCC. Seven Star LLC is an independent supplier based in Muscat and does not hold any manufacturer status for Hilti. The Hilti technical datasheet for the steel-to-concrete application (HIT-HY 200-A V3 and HIT-HY 200-R V3, update Feb-26) is attached as a manufacturer PDF. Current item numbers, pack sizes and availability should be read from the Hilti product page. Related Hilti items sit in the Material Handling & Lifting Equipment category.
Datasheets & Documents
- Datasheet Hilti HIT-HY 200-A V3 / HIT-HY 200-R V3 technical datasheet, steel-to-concrete (manufacturer PDF, Feb-26) Download
Reviews (0)
About brand
Hilti is the Liechtenstein construction technology company for fastening, anchoring, firestop, installation and power tool systems. The brothers Martin and Eugen Hilti opened a small mechanical workshop in Schaan, Liechtenstein, in 1941, and the company turned to fastening technology after Martin Hilti acquired a fastening patent in 1948. Hilti is still headquartered in Schaan and controlled by the Martin Hilti Family Trust, created in 1980.
Seven Star LLC is an independent supplier in Muscat. We list Hilti power tools and firestop products, each with the manufacturer operating instructions, for contractors and maintenance teams in Oman and the GCC.
Hilti company profile
| Founded | 1941, Schaan, Liechtenstein |
|---|---|
| Founders | Martin Hilti and Eugen Hilti |
| Headquarters | Schaan, Liechtenstein |
| Ownership | Controlled by the Martin Hilti Family Trust (created 1980) |
| Product families | DX powder-actuated and BX battery fastening tools, stud fusion systems, mechanical and chemical anchors, CP and CFS firestop sealants and systems, MQ and MI installation channels, cordless power tools and measuring tools |
Milestones
- 1941: Martin and Eugen Hilti open a mechanical workshop in Schaan.
- 1948: Martin Hilti acquires a patent for fastening technology.
- 1952: The first international sales cooperation is agreed, in Italy.
- 1957: The DX 100 powder-actuated tool is introduced, which Hilti describes as the world's first.
- 1980: The Hilti family creates the Martin Hilti Family Trust.
Hilti product series
The power tools listed here include SDS Plus and SDS Max rotary and combihammers (TE 8-22, TE 70-22, TE 70-ATC/AVR), demolition hammers and breakers (TE 1000-AVR, TE 2000-22, TE 3000-AVR), angle grinders from 125 to 230 mm (AG 125-13S, AG 230-24D, AG 4D-22, AG 30D-22), cordless impact wrenches (SIW 6AT-22, SIW 10-22, SIW 20-22), the SF 30M-22 magnetic drill press, the SF 6H-22 hammer drill driver and the SC 6ML-22 metal-cutting circular saw. Many of the cordless models run on the 22 V Nuron battery platform.
Firestop products such as the CP 601S silicone sealant and CP 606 acrylic sealant seal penetrations and joints in fire-rated walls and floors.
Where Hilti tools are used
Drilling and anchoring in concrete, demolition and chiselling, steel fabrication and erection, bolting on structures and pipe supports, mechanical and electrical installation work and passive fire protection in buildings and industrial plants.
Hilti products we list
Ordering Hilti products: what we need
Give the tool designation and, if available, the item number. For cordless tools state whether you need the bare tool or a kit with batteries and charger; for corded tools give the supply voltage and plug type. For firestop products give the product, colour, cartridge size and quantity, and the fire rating or approval the project requires.
Facts checked against Hilti's published company history, October 2026.
Browse Hilti products by category: Material Handling & Lifting Equipment.
Related products
Frequently Asked Questions
What is HIT-HY 200-R V3 used for?
Hilti lists it for post-installed rebar connections and for anchoring steel baseplates, racking, machinery and guard rails in concrete.
What is the difference between HY 200-A V3 and HY 200-R V3?
Both share one datasheet; the R grade has a longer working time, for example 9 minutes against 4 minutes at 20 to 30 deg C.
What concrete does it suit?
Cracked and uncracked concrete from C20/25 to C50/60, in dry or water-saturated conditions.
What installation temperature range applies?
-10 to +40 deg C for HAS, HAS-U, HAS-D and HIS-N elements and +5 to +40 deg C for HIT-Z.
Which dispensers are named in the datasheet?
The datasheet names HDM, HDE 500-22 and HDE 500-A12 dispensers.
