Brand: Hilti

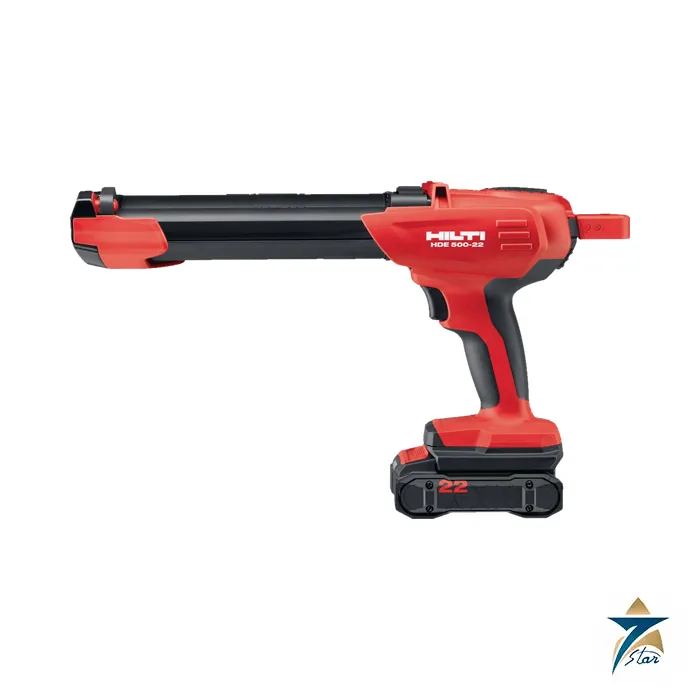

Hilti HDE 500-22 Cordless Adhesive Anchor Dispenser
Description
The Hilti HDE 500-22 is a cordless adhesive anchor dispenser on the 22 V Nuron battery platform, built to dispense Hilti HIT hybrid and epoxy mortars from foil packs for anchor rods and rebar in concrete and masonry. Hilti highlights millilitre-accurate dosing, LED feedback and repeat and resume functions that reduce mortar waste and improve setting reliability.
Accurate dosing for post-installed anchors and rebar
The product page lists a dosing wheel with dosage recommendations from the Hilti Volume Calculator app, LED indicators that confirm correct dispensing or warn that the cartridge is almost empty, and a smart memory that repeats the same amount on each trigger pull or finishes a hole after a pack change. Applications are injecting Hilti HIT epoxy or adhesive mortar for anchor rods and rebar in concrete and masonry, and dispensing Hilti firestop foams only when packaged in compatible soft foil packs. The datasheets for HIT-HY 200-R V3 and HIT-RE 500 V4 name the HDE 500-22 among the dispensers to use.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | Battery-powered adhesive dispenser for Hilti HIT foil packs and cartridges (Nuron platform) |
| Product generation | 02 (operating instructions) |
| Rated voltage | 21.6 V (22 V class on product page) |
| Dimensions (L x W x H) | 440 x 120 x 230 mm |
| Weight without battery | 1.9 kg |
| Operating temperature | -17 to +60 deg C |
| Storage temperature | -40 to +85 deg C |
| Sound power level LWA | 77 dB (uncertainty 3 dB); sound pressure level LpA 69 dB |
| Total vibration | 0.1 m/s2 with B 22-55; 0.2 m/s2 with B 22-290 (uncertainty 1.5 m/s2) |
| Dispensing functions | Measured dispensing, repeat, discard (dispensing mode selector and LED indications in the manual) |
| Parts named in the manual | Foil pack holders (black and red), cartridge cradle, tool LED, dispensing mode selector, parallel piston rods |
| Batteries named by Hilti | B 22-55, B 22-110, B 22-195, B 22-290 Nuron batteries |
| Hilti UAE item 2250851 | Cordless dispenser HDE 500-22 ROW assembly, box |
Using the dispenser with the mortar grades
The LED shows red when the volume left in the pack is not enough for the preset dispensing, the repeat of the previous dispensing or the discard function. Hilti publishes working and curing times per mortar, so the dispensing sequence must stay inside the mortar working time at the concrete temperature. The product page lists related accessories including the B 22-55, B 22-110, B 22-195 and B 22-290 batteries.
Selection and ordering checks
Confirm the mortar and pack size to be dispensed (the foil pack holder colour and size must match), battery size and charger, mixers and extensions supplied with each mortar pack, and the market version listed on the Hilti page (the box item shown is the ROW assembly). For manual dispensing, Hilti also lists the HDM dispenser. Related Hilti mortars include HIT-HY 200-R V3, HIT-HY 170 and HIT-RE 500 V4.
Documents and quotation
For a quotation on the HDE 500-22, send Seven Star LLC the exact model, quantity and delivery point in Oman or elsewhere in the GCC. Seven Star LLC is an independent supplier based in Muscat and does not hold any manufacturer status for Hilti. The Hilti operating instructions for the HDE 500-22 (multilingual PDF) are attached as a manufacturer PDF; this is an operating manual, not a separate datasheet. Current item numbers, pack sizes and availability should be read from the Hilti product page. Related Hilti items sit in the Material Handling & Lifting Equipment category.
Datasheets & Documents
- Instruction Manual Hilti HDE 500-22 operating instructions (manufacturer manual, multilingual) Download
Reviews (0)
About brand
Hilti is the Liechtenstein construction technology company for fastening, anchoring, firestop, installation and power tool systems. The brothers Martin and Eugen Hilti opened a small mechanical workshop in Schaan, Liechtenstein, in 1941, and the company turned to fastening technology after Martin Hilti acquired a fastening patent in 1948. Hilti is still headquartered in Schaan and controlled by the Martin Hilti Family Trust, created in 1980.
Seven Star LLC is an independent supplier in Muscat. We list Hilti power tools and firestop products, each with the manufacturer operating instructions, for contractors and maintenance teams in Oman and the GCC.
Hilti company profile
| Founded | 1941, Schaan, Liechtenstein |
|---|---|
| Founders | Martin Hilti and Eugen Hilti |
| Headquarters | Schaan, Liechtenstein |
| Ownership | Controlled by the Martin Hilti Family Trust (created 1980) |
| Product families | DX powder-actuated and BX battery fastening tools, stud fusion systems, mechanical and chemical anchors, CP and CFS firestop sealants and systems, MQ and MI installation channels, cordless power tools and measuring tools |
Milestones
- 1941: Martin and Eugen Hilti open a mechanical workshop in Schaan.
- 1948: Martin Hilti acquires a patent for fastening technology.
- 1952: The first international sales cooperation is agreed, in Italy.
- 1957: The DX 100 powder-actuated tool is introduced, which Hilti describes as the world's first.
- 1980: The Hilti family creates the Martin Hilti Family Trust.
Hilti product series
The power tools listed here include SDS Plus and SDS Max rotary and combihammers (TE 8-22, TE 70-22, TE 70-ATC/AVR), demolition hammers and breakers (TE 1000-AVR, TE 2000-22, TE 3000-AVR), angle grinders from 125 to 230 mm (AG 125-13S, AG 230-24D, AG 4D-22, AG 30D-22), cordless impact wrenches (SIW 6AT-22, SIW 10-22, SIW 20-22), the SF 30M-22 magnetic drill press, the SF 6H-22 hammer drill driver and the SC 6ML-22 metal-cutting circular saw. Many of the cordless models run on the 22 V Nuron battery platform.
Firestop products such as the CP 601S silicone sealant and CP 606 acrylic sealant seal penetrations and joints in fire-rated walls and floors.
Where Hilti tools are used
Drilling and anchoring in concrete, demolition and chiselling, steel fabrication and erection, bolting on structures and pipe supports, mechanical and electrical installation work and passive fire protection in buildings and industrial plants.
Hilti products we list
Ordering Hilti products: what we need
Give the tool designation and, if available, the item number. For cordless tools state whether you need the bare tool or a kit with batteries and charger; for corded tools give the supply voltage and plug type. For firestop products give the product, colour, cartridge size and quantity, and the fire rating or approval the project requires.
Facts checked against Hilti's published company history, October 2026.
Browse Hilti products by category: Material Handling & Lifting Equipment.
Related products
Frequently Asked Questions
What does the HDE 500-22 dispense?
Hilti HIT hybrid and epoxy mortars from foil packs and cartridges for anchor rods and rebar.
Which battery platform does it use?
The 22 V Nuron platform, with B 22-55, B 22-110, B 22-195 and B 22-290 listed by Hilti.
What weight does the manual give?
1.9 kg without battery.
Which smart functions does it have?
Measured dispensing, repeat and discard functions with LED indications.
What operating temperature range applies?
-17 to +60 deg C per the operating instructions.
