Brand: Hilti

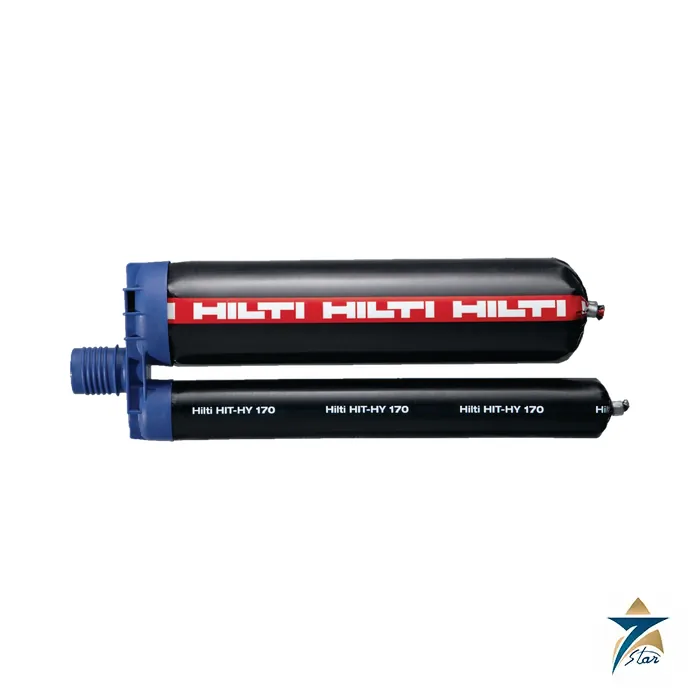

Hilti HIT-HY 170 Hybrid Injection Mortar
Description
The Hilti HIT-HY 170 is a two-component hybrid injection mortar in 500 ml and 330 ml foil packs for light and medium-duty anchoring in concrete and masonry. Hilti lists window bars, sanitary equipment, awnings, air-conditioning supports, lights and light structural steel connections as typical uses, plus post-installed rebar for renovation and for replacing misplaced or missing rebar.
A fast-curing hybrid mortar for everyday anchoring
The Hilti product page lists cracked and non-cracked concrete, lightweight concrete, and solid and hollow masonry as base materials, for indoor and outdoor use and for dry and wet holes. It is free of styrene. The steel-to-concrete datasheet covers threaded rods HAS and HAS-U (M8 to M24, with HDG, A4 and HCR variants), internally threaded sleeves HIS-N and HIS-RN (M8 to M16) and rebar from 8 to 25 mm; the separate concrete-to-concrete datasheet (Feb-26) covers rebar from 8 to 32 mm and embedment up to 1250 mm depending on diameter.
Technical specifications
| Parameter | Specification |
|---|---|
| Product type | Two-component hybrid injection mortar, styrene-free |
| Pack | 500 ml foil pack, also 330 ml; Hilti UAE item 2101918 is 500 ml with two mixers and one extension |
| Base materials | Cracked and non-cracked concrete C20/25 to C50/60 (steel to concrete), concrete C12/15 to C50/60 (rebar), lightweight concrete, solid and hollow masonry per product page |
| Elements, steel to concrete | HAS, HAS-U rods M8 to M24; HIS-N, HIS-RN sleeves M8 to M16; rebar 8 to 25 mm |
| Approvals listed | ETA-19/0465 (HAS, HAS-U; static, seismic); ETA-14/0457 (HIS-N, HIS-RN; static); ETA-15/0297 (rebar; static, seismic, fire); Hilti technical data |
| Seismic | ETA category C2 for HAS and HAS-U per datasheet |
| Installation temperature | -5 to +40 deg C; the mortar must be at least +5 deg C when installed |
| In-service temperature | Range I -40 to +40 deg C; range II -40 to +80 deg C (long-term 50 deg C, short-term 80 deg C) |
| Storage and transport | 5 to 25 deg C |
| Drill bit, rod M8 to M24 | 10, 12, 14, 18, 22, 28 mm |
| Embedment, rod M8 to M24 | 60 to 96 mm (M8) up to 96 to 288 mm (M24) |
| Maximum torque, rod M8 to M24 | 10, 20, 40, 80, 150, 200 Nm |
Working and curing times for HIT-HY 170
| Base material temperature | Maximum working time | Minimum curing time |
|---|---|---|
| -5 to 0 deg C | 10 min | 12 h |
| 0 to 5 deg C | 10 min | 5 h |
| 5 to 10 deg C | 8 min | 2.5 h |
| 10 to 20 deg C | 5 min | 1.5 h |
| 20 to 30 deg C | 3 min | 45 min |
| 30 to 40 deg C | 2 min | 30 min |
The datasheet curing times apply to dry base material only; in wet base material the curing times must be doubled. Working time in warm concrete is short, so pre-plan the number of holes per cartridge and use fresh mixers.
Selection and ordering checks
Choose HIT-HY 170 where the load case is light or medium duty and quick curing is wanted; for structural rebar connections, seismic categories C1 and C2, or a longer working time, compare HIT-HY 200-R V3, and for heavy-duty anchoring compare the HIT-RE 500 V4 epoxy. Confirm the base material, element and size, drilling method, hole cleaning and the approval the project asks for, and use Hilti PROFIS Engineering for design. The foil pack needs a matching HDM or HDE dispenser, and the datasheet states hollow drill bits for automatic cleaning or manual cleaning for holes up to 20 mm with embedment up to 10d.
Documents and quotation
For a quotation on the HIT-HY 170, send Seven Star LLC the exact model, quantity and delivery point in Oman or elsewhere in the GCC. Seven Star LLC is an independent supplier based in Muscat and does not hold any manufacturer status for Hilti. The Hilti technical datasheets for steel-to-concrete (Jan-25) and concrete-to-concrete (Feb-26) applications are attached as manufacturer PDFs. Current item numbers, pack sizes and availability should be read from the Hilti product page. Related Hilti items sit in the Material Handling & Lifting Equipment category.
Datasheets & Documents
Reviews (0)
About brand
Hilti is the Liechtenstein construction technology company for fastening, anchoring, firestop, installation and power tool systems. The brothers Martin and Eugen Hilti opened a small mechanical workshop in Schaan, Liechtenstein, in 1941, and the company turned to fastening technology after Martin Hilti acquired a fastening patent in 1948. Hilti is still headquartered in Schaan and controlled by the Martin Hilti Family Trust, created in 1980.
Seven Star LLC is an independent supplier in Muscat. We list Hilti power tools and firestop products, each with the manufacturer operating instructions, for contractors and maintenance teams in Oman and the GCC.
Hilti company profile
| Founded | 1941, Schaan, Liechtenstein |
|---|---|
| Founders | Martin Hilti and Eugen Hilti |
| Headquarters | Schaan, Liechtenstein |
| Ownership | Controlled by the Martin Hilti Family Trust (created 1980) |
| Product families | DX powder-actuated and BX battery fastening tools, stud fusion systems, mechanical and chemical anchors, CP and CFS firestop sealants and systems, MQ and MI installation channels, cordless power tools and measuring tools |
Milestones
- 1941: Martin and Eugen Hilti open a mechanical workshop in Schaan.
- 1948: Martin Hilti acquires a patent for fastening technology.
- 1952: The first international sales cooperation is agreed, in Italy.
- 1957: The DX 100 powder-actuated tool is introduced, which Hilti describes as the world's first.
- 1980: The Hilti family creates the Martin Hilti Family Trust.
Hilti product series
The power tools listed here include SDS Plus and SDS Max rotary and combihammers (TE 8-22, TE 70-22, TE 70-ATC/AVR), demolition hammers and breakers (TE 1000-AVR, TE 2000-22, TE 3000-AVR), angle grinders from 125 to 230 mm (AG 125-13S, AG 230-24D, AG 4D-22, AG 30D-22), cordless impact wrenches (SIW 6AT-22, SIW 10-22, SIW 20-22), the SF 30M-22 magnetic drill press, the SF 6H-22 hammer drill driver and the SC 6ML-22 metal-cutting circular saw. Many of the cordless models run on the 22 V Nuron battery platform.
Firestop products such as the CP 601S silicone sealant and CP 606 acrylic sealant seal penetrations and joints in fire-rated walls and floors.
Where Hilti tools are used
Drilling and anchoring in concrete, demolition and chiselling, steel fabrication and erection, bolting on structures and pipe supports, mechanical and electrical installation work and passive fire protection in buildings and industrial plants.
Hilti products we list
Ordering Hilti products: what we need
Give the tool designation and, if available, the item number. For cordless tools state whether you need the bare tool or a kit with batteries and charger; for corded tools give the supply voltage and plug type. For firestop products give the product, colour, cartridge size and quantity, and the fire rating or approval the project requires.
Facts checked against Hilti's published company history, October 2026.
Browse Hilti products by category: Material Handling & Lifting Equipment.
Related products
Frequently Asked Questions
What base materials does HIT-HY 170 suit?
Hilti lists cracked and non-cracked concrete, lightweight concrete and solid or hollow masonry.
What are typical uses?
Hilti lists window bars, sanitary equipment, awnings, air-conditioning systems, lights, secondary steel and post-installed rebar.
What is the installation temperature range?
-5 to +40 deg C, with the mortar at least +5 deg C when installed.
How long is the working time at 20 to 30 deg C?
The datasheet gives 3 minutes working time and 45 minutes minimum curing time in dry base material.
What changes in wet concrete?
The datasheet states that curing times must be doubled in wet base material.
