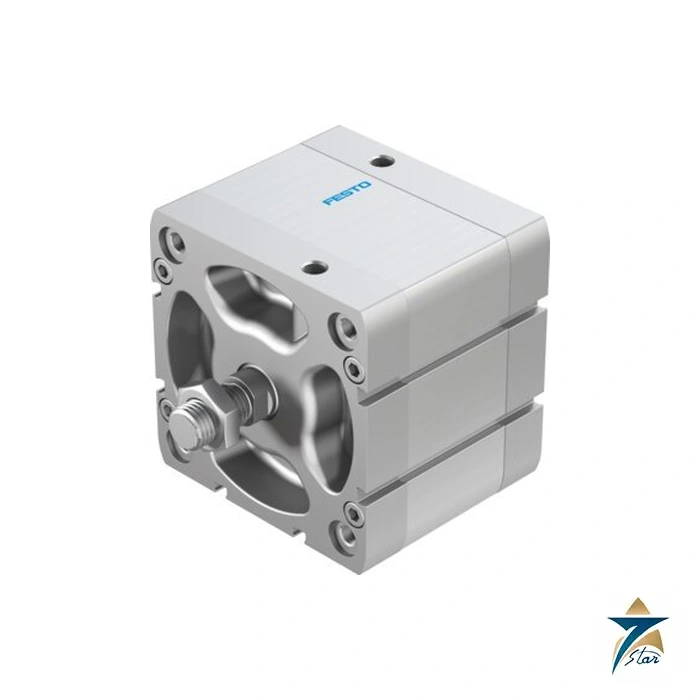

Festo ADN-100-30-A-P-A Compact Cylinder
Description
Compact linear motion with a 100 mm bore
The Festo ADN-100-30-A-P-A, part 536378 is a double-acting compact pneumatic cylinder to ISO 21287. This execution combines a 100 mm bore with a 30 mm stroke and elastic end cushioning.
The cushioning type is a selection detail: this model uses elastic cushioning rather than an adjustable pneumatic cushioning execution. Match the complete cylinder reference to the machine mounting and movement requirements.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / part | Festo / 536378 |
| Model | ADN-100-30-A-P-A |
| Action | Double acting |
| Standard | ISO 21287 |
| Bore / stroke | 100 mm / 30 mm |
| Cushioning | Elastic end cushioning |
| Operating pressure | 0.6–10 bar |
| Theoretical advancing / retracting force at 6 bar | 4712 N / 4524 N |
| Rod thread | M16 × 1.5 external |
| Pneumatic ports | G1/8 |
| Medium / ambient temperature | −20 to +80 °C |
Pressure, force and connections
The documented operating pressure is 0.6–10 bar. At 6 bar, the theoretical advancing force is 4712 N and the theoretical retracting force is 4524 N. Actual usable force also depends on the complete mechanism and operating conditions.
The cylinder has an M16 × 1.5 external rod thread and G1/8 pneumatic ports. Medium and ambient limits are −20 to +80 °C.
The cylinder supports position sensing with suitable proximity switches; this capability does not establish that a switch is included. Identify sensing and mounting accessories separately. If oil lubrication is introduced, the manufacturer requires it to continue thereafter.
Quotation enquiries
Send the full model, part number, quantity, mounting arrangement and required sensing accessories. Browse Pneumatic Cylinders for related components.
