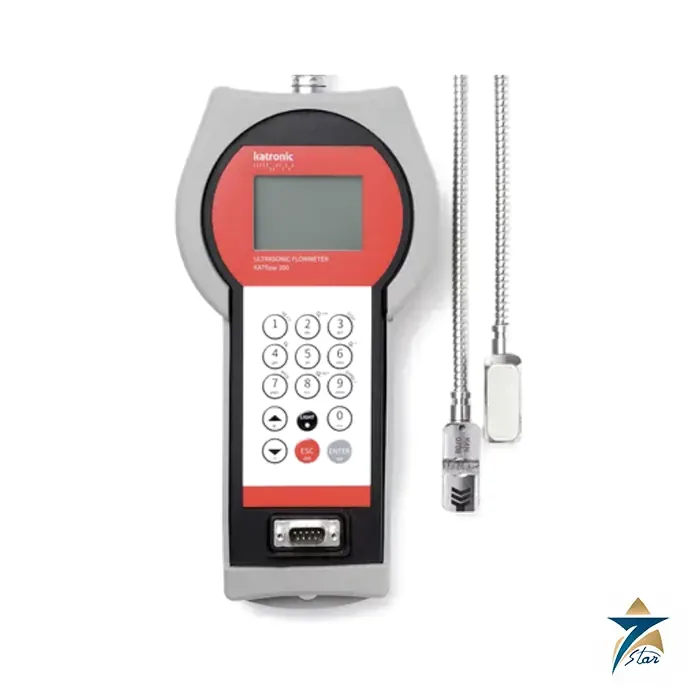

Katronic KATflow 200 Hand-Held Clamp-On Ultrasonic Flow Meter

Overview

The Katronic KATflow 200 is a lightweight, hand-held clamp-on ultrasonic flow meter designed for professionals who need a compact, portable instrument for everyday spot checks, service calls, and comparative flow measurements. Weighing just 650 g and covering pipe diameters from 10 mm to 6,500 mm, the Katronic KATflow 200 combines a robust IP65 enclosure with a rubber shock protector and IP66 stainless steel sensors, giving field technicians a durable, one-handed instrument that operates for up to 24 hours on 4 x NiMH AA batteries.

Backed by genuine manufacturer documentation, Seven Star LLC supplies the Katronic KATflow 200 to service engineers, maintenance teams, and system integrators across Muscat, Sohar, and Salalah who need a reliable portable flow meter for rapid diagnostics and verification work. Regional technical teams benefit from genuine Katronic hardware, full documentation, and responsive local support backed by Seven Star LLC’s instrumentation division.

Measurement Principle

Like every instrument in the Katronic KATflow range, the KATflow 200 uses clamp-on ultrasonic transit-time technology, calculating fluid velocity from the difference in transit time between ultrasonic pulses travelling with and against the flow. Because the transducers clamp externally onto the pipe wall rather than requiring insertion into the process, the KATflow 200 lets a technician take a flow reading on virtually any accessible pipe within minutes, without process shutdown, hot work, or specialized installation tools. This makes it ideally suited to spot checks, troubleshooting suspected flow problems, and cross-checking the readings of permanently installed meters during calibration or commissioning.

The KATflow 200 supports an optional wall thickness sensor for standard and high-temperature applications, allowing technicians to verify pipe condition alongside flow measurement, and a choice of robust stainless-steel clamp-on sensors covers different pipe materials and process temperatures up to 250°C. The device can be operated intuitively even with one hand, making it a practical companion in hard-to-reach areas or confined spaces where a larger fixed or portable dual-channel instrument would be impractical to deploy.

Engineering Design of the Katronic KATflow 200

The Katronic KATflow 200 is built around a durable IP65 housing reinforced with a rubber protector, shielding the device from dust, splash water, impacts, and drops typical of field service environments. At 650 g, the unit is significantly lighter than Katronic’s dual-channel portable instruments, and its ergonomic, keypad-operated design focuses on the core functions of clamp-on flow measurement rather than the extended analysis capabilities of higher-tier models, keeping the learning curve short for technicians who need reliable readings quickly.

Power comes from 4 x NiMH AA batteries, giving up to 24 hours of continuous measurement-mode operation and allowing all-day field use without recharging, an important consideration for service calls and site surveys that run beyond a single shift. Depending on the application, a choice of stainless-steel clamp-on sensors is available, and three different carrying options allow the KATflow 200 to be adapted to a variety of measurement tasks and operating environments, from routine plant walkdowns to more demanding industrial service work.

Key Features

The Katronic KATflow 200 combines portability with genuine measurement capability, and its feature set is built around fast, reliable field use.

• Lightweight, one-handed hand-held design weighing approximately 650 g for easy transport and use in confined spaces.
• Wide pipe diameter coverage from 10 mm to 6,500 mm, suiting service work on both small and very large pipelines.
• Standard sensors rated from -30°C to +250°C, covering everything from chilled water to high-temperature process lines.
• Up to 24 hours of battery life in measurement mode with 4 x NiMH AA batteries for all-day field use.
• Robust IP65 enclosure with rubber shock protector and IP66 stainless steel sensors for demanding field conditions.
• Optional wall thickness sensor for verifying pipe condition alongside flow measurement.
• Choice of robust stainless-steel clamp-on sensors to match different pipe materials and applications.
• Three different carrying options for practical adaptation to varied measurement tasks and operating environments.

Industrial Applications

The Katronic KATflow 200 is widely used by maintenance teams, commissioning engineers, and service technicians who need fast, non-invasive flow verification without installing a permanent meter. Typical duty includes troubleshooting suspected flow anomalies, cross-checking the accuracy of installed flow meters during calibration cycles, conducting energy or water audits across a facility, and performing quick spot checks on pipelines during plant walkdowns. Its portability and long battery life also make it a practical tool for utility companies and contractors carrying out multiple site visits in a single day.

Working closely with plant engineers in the region, Seven Star LLC distributes the Katronic KATflow 200 throughout the Sultanate of Oman and the broader GCC, supporting maintenance contractors, utility companies, and industrial service providers across the Sohar and Salalah industrial zones with portable, non-invasive flow measurement. Regional service teams sourcing a reliable field instrument benefit from Katronic documentation and direct technical support from Seven Star LLC’s instrumentation division.

Technical Specifications

The table below summarizes the key technical characteristics of the Katronic KATflow 200 hand-held clamp-on ultrasonic flow meter.

Also available: Katronic KATflow 170 Explosion-Proof Clamp-On Ultrasonic Flow Meter

Request a Quote for Katronic KATflow 200 Hand-Held Clamp-On Ultrasonic Flow Meter

Seven Star LLC invites maintenance teams, service engineers, and contractors across Oman and the GCC to submit a formal RFQ for the Katronic KATflow 200 hand-held clamp-on ultrasonic flow meter. Full technical datasheets are available on request to support field service planning and equipment procurement. With fast quotation turnaround and technical support, Seven Star LLC’s instrumentation division is available to advise on sensor selection, pipe compatibility, and carrying configuration – contact Seven Star LLC today to request pricing, documentation, or technical consultation on the Katronic KATflow 200 platform.
