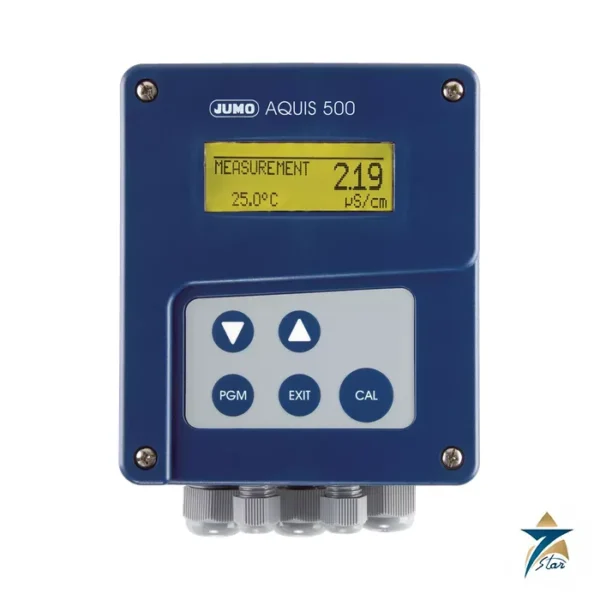

JUMO AQUIS 500 AS Standard-Signal Indicator and Controller

Name: JUMO AQUIS 500 AS Indicator Controller | Seven Star LLC
Brand: JUMO
SKU: AQUIS 500 AS

Description

One display and controller for any 4-20 mA analytical or level signal

The JUMO AQUIS 500 AS (type 202568) does not measure a single parameter itself. It takes a standard signal, 0(4) to 20 mA or 0 to 10 V, from a transmitter or sensor, scales it to a user unit such as mg/l, pH, mV or µS/cm, and adds limit, alarm and PID control functions. A second analog input accepts a Pt100, Pt1000 or NTC/PTC resistance thermometer for temperature display or compensation, and the instrument supplies 24 V DC at up to 30 mA to power a 2-wire transmitter directly. That makes it a convenient local indicator for the JUMO chlorine sensors of datasheet 202630, for pH or redox 2-wire transmitters of datasheet 202701, and for hydrostatic level probes such as type 402090 or 404390, without a separate loop supply.

Technical specifications

Parameter	Specification
Basic type	202568, JUMO AQUIS 500 AS, indicator/controller for standard signals
Main input	0(4) to 20 mA or 0 to 10 V; display ranges 0.000 to 9.999, 00.00 to 99.99, 000.0 to 999.9 and 0000 to 9999
Main input accuracy	0.6 % of range or better; temperature error 0.2 %/10 °C
Temperature input	Pt100 or Pt1000 (auto detection), -50 to +250 °C, 0.5 K up to 100 °C; NTC/PTC to 4 kΩ via 20-point table
Temperature compensation	pH mode linear -10 to +150 °C; conductivity mode linear 0 to 5.5 %/°C or natural water to ISO 7888
Loop supply	DC 24 V (-15/+20 %), max. 30 mA for a 2-wire transmitter; DC 12 V (10 to 20 V), max. 10 mA for a proximity switch such as type EI1808 NPOSS
Binary input	Floating contact: key inhibit, HOLD, alarm stop
Analog outputs (max. 2)	0/4 to 20 mA (max. 500 Ω) or 0 to 10 V (min. 500 Ω), 0.25 %, electrically isolated 30 V AC / 50 V DC, NAMUR NE43
Relay outputs (max. 2)	SPDT, 3 A at 250 V AC resistive, more than 200,000 operations
Controller	Limit, pulse length, pulse frequency, modulating, continuous; P/PI/PD/PID; 500 ms sampling, 14-bit
Linearisation	Table with 20 value pairs through setup program, for example a horizontal cylindrical tank
Power supply	AC 110 to 240 V (+10/-15 %), AC/DC 20 to 30 V or DC 12 to 24 V; approx. 14 VA
Housing and weight	ABS; IP67 surface mount (approx. 900 g) or IP65 front panel mount (approx. 480 g); up to three M16 and two M12 glands
Ambient temperature	-10 to +50 °C; operating -15 to +65 °C; storage -30 to +70 °C; humidity 90 % annual mean
Approval	cULus, file E 201387, UL 61010-1

Selecting the order code

Order code 202568/ followed by the housing (10 panel mounting, 20 surface mounting), input 888 (0(4) to 20 mA and 0 to 10 V, freely configurable), output 1 and output 2 (000 none or 888 analog), outputs 3 and 4 (000 none or 310 changeover relay), supply 23, 25 or 30 and extra code 000. The datasheet sample is 202568/20-888-888-000-310-000-23/000. Two stock versions are listed: 202568/20-888-888-888-310-310-23/000, part number 00528718, with two analog outputs and two relays, and 202568/20-888-888-000-310-000-23/000, part number 00528719, with one analog output and one relay. Optional installation hardware covers a protective roof, a pipe set, a DIN rail set, a support pillar and a holder for suspension fittings. The PC setup program adds custom display units, the level linearisation table and subsequent language loading.

Typical loops built around it

JUMO shows four reference arrangements. In a pH loop the unit powers a 2-wire transmitter with a compensation thermometer and offers a calibrated analog output, which keeps long cable runs low in interference and moves calibration to the front panel. In a disinfectant loop it pairs with a free-chlorine sensor and a flow monitor, so a missing sample flow can be supervised. For level, a hydrostatic probe feeds the 4-20 mA input and the 20-point table converts depth to litres in a non-linear tank. For flow, a MID flow transmitter of type 406010 supplies the signal. In water-treatment plants in hot climates the same pattern serves dosing control for hypochlorite or peroxide where one local display and two relays are enough. Compare with the AQUIS 500 pH, which includes the sensor interface directly.

For a quotation, tell us the signal source (4 to 20 mA or 0 to 10 V), whether a 2-wire transmitter must be powered from the 24 V loop supply, and the mains or low-voltage supply available at site. State how many relays and analog outputs the loop needs, and whether the housing should be surface mounted at IP67 or placed in a panel at IP65. If a compensation thermometer is used, mention Pt100 or Pt1000, because the unit detects the type automatically. A tank table with up to 20 value pairs is easy to prepare when you send the tank shape and the probe range.

Documents and quotation

Hosted for reference is the JUMO data sheet 202568 (14 pages, English). Confirm the signal type, supply voltage, number of relays and housing before ordering. Seven Star LLC is an independent supplier in Muscat; send the order code and application details for a quotation.
