HOPPECKE grid power V X 2-1000 GroE Cell

Name: HOPPECKE grid power V X 2-1000 GroE Cell | Seven Star LLC
Brand: HOPPECKE
SKU: grid power V X 2-1000

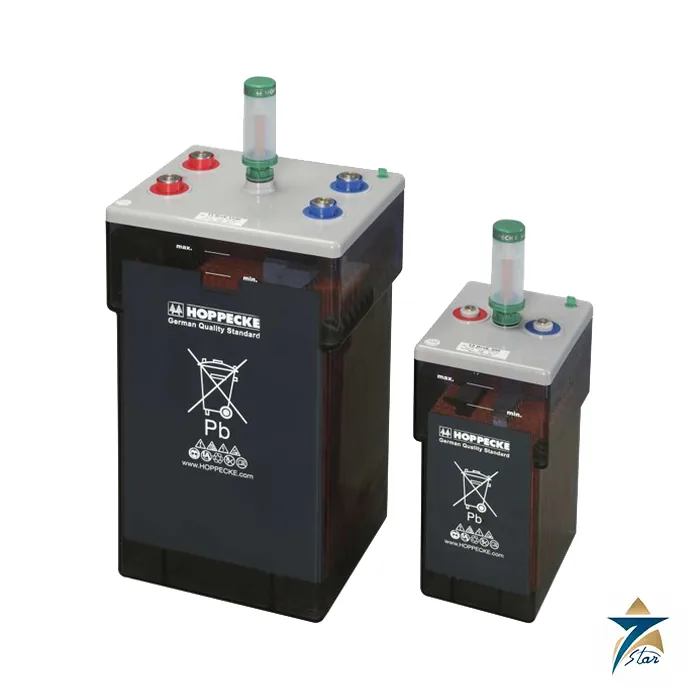

grid | power V X 2-1000 is a 2 V vented lead-acid cell of the HOPPECKE grid | power V X series (DIN designation 10 GroE 1000). The brochure type table gives 1100 Ah at C10 to 1.80 V per cell, a weight of 133.2 kg and a footprint of 330 x 270 mm with 590 mm height.

A Planté-plate GroE cell for power plants and substations

The V X is the GroE series: positive Planté plates made of pure lead with a minimum electrolyte density, designed to DIN 40738. HOPPECKE lists excellent high-current capability, the highest expected service life (up to 25 years) and system connectors that raise short-circuit safety during installation.

In the 2-1000 the DIN name tells you the build: 10 positive plates and a DIN capacity class of 1000 Ah, while the real C10 capacity is 1100 Ah. General engineering note: cells of this size are normally series-connected on racks into 48 V, 110 V or 220 V strings, which is a design choice, not a data sheet item.

Benefits listed in the brochure

Specially designed Planté plate gives excellent high-current capability and low investment cost.
Pure lead electrodes and minimum electrolyte density for the longest expected service life; design life up to 25 years.
Maximum compatibility through the DIN 40738 design.
Optional grid | AquaGen recombination plug extends water refill intervals up to maintenance-free and cuts gas and aerosol emission.

Technical specification

Specification of grid | power V X 2-1000 (brochure type table)

Parameter	Specification
Type / DIN designation	grid \| power V X 2-1000 / 10 GroE 1000
Cell voltage	2 V vented lead-acid
Capacity C10 to 1.80 V per cell	1100 Ah
Capacity C5 to 1.75 V per cell	1000 Ah
Capacity C3 to 1.70 V per cell	918 Ah
Capacity C1 to 1.70 V per cell	675 Ah
Weight	133.2 kg approx.
Weight of electrolyte, maximum	32.5 kg (density 1.22 kg/l)
Length x width x height, maximum (DIN 40738)	330 x 270 x 590 mm, Fig. B
Design life	up to 25 years
Float voltage (manual)	2.23 V per cell plus or minus 1 percent
Open-circuit voltage, fully charged (manual)	2.06 plus or minus 0.01 V per cell

Derived values (calculated here)

Parameter	Specification
Energy at C10	about 2.2 kWh per cell (2 V x 1100 Ah)
Float voltage of a 24-cell 48 V string	24 x 2.23 V = about 53.5 V

Picking a size from the V X range

The range runs from 2-75 (3 GroE 75, 78 Ah, 17.3 kg, 184 x 155 x 410 mm) to 2-2600 (26 GroE 2600, 2860 Ah, 320.0 kg, 330 x 575 x 590 mm) in steps of 25 to 100 Ah, drawn as Figures A to D. The 2-1000 sits in the 330 x 270 mm group that runs from 2-500 to 2-1100.

Use the C5, C3 and C1 columns when the load lasts only an hour or less, and confirm the type code, plug option and connector set against your design before ordering. Cell weights go up to 320.0 kg, so check floor loading and handling equipment as well.

Storage, commissioning and maintenance from the manual

The manual states that V X cells must be recharged after 6 weeks of storage at 20 °C. Fill, commission and float at 2.23 V per cell, and expect an open-circuit voltage of about 2.06 V per cell when full. An equalizing charge is only needed after deep discharge, uneven warming or large cell-voltage differences, at no more than 2.4 V per cell. Ventilation must keep hydrogen below 4 percent by volume.

Maintenance rhythm: visual inspection and charging-voltage check every 6 months, individual voltages and insulation resistance later in the cycle, and a capacity test every few years. New-battery insulation must exceed 1 megohm and never fall below 100 ohm per volt. With AquaGen plugs the operating temperature must stay at or above 5 °C.

Power plants, substations and UPS

The brochure names power plants, substations and uninterruptible power supply. General engineering note: in Gulf substations and power stations a vented GroE cell is chosen where 25 years design life and high short-circuit current matter more than lower maintenance, and the battery room needs the ventilation the manual describes.

Related HOPPECKE items

The grid | AquaGen pro plug is the optional water-saving upgrade. For OPzS cells see grid | power V L; for OSP positive-plate cells see V M and V H.

Frequently asked questions

What does 10 GroE 1000 mean?

It is the DIN designation: 10 positive plates, GroE design and a DIN capacity class of 1000 Ah, while the brochure gives 1100 Ah C10.

How long can V X cells last?

The brochure lists a design life of up to 25 years.

What float voltage applies?

The manual gives 2.23 volts per cell, plus or minus 1 percent, for the V X series.

Can I reduce water refilling?

Yes, the brochure offers AquaGen recombination plugs as an option that extends refill intervals.

Does Seven Star LLC act as a HOPPECKE distributor?

No. Seven Star LLC is an independent supplier in Muscat that sources HOPPECKE products on request.

Documents and quotation

This page carries the official HOPPECKE datasheet and manual for grid power V X 2-1000. Seven Star LLC is an independent supplier in Muscat and sources HOPPECKE products on request; tell us the quantity and delivery point to receive a quotation. Always confirm the order code and technical values in the documents first. See more in the product category.
