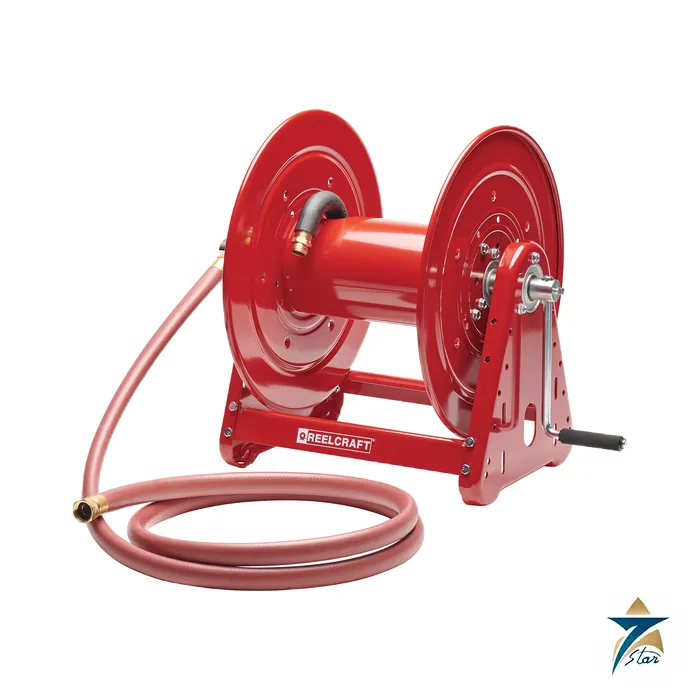

Reelcraft GCCA33112 L 3/4 in. x 100 ft. Hand Crank Hose Reel

A hand-crank reel that stores 100 ft of 3/4 in. garden hose

The Reelcraft GCCA33112 L is a premium duty hand-crank reel for watering and washdown, designed to be mounted centrally and to hold long lengths of hose. It uses all-bolted unitized construction with no welds to fatigue, a full-flow swivel, a heavy-gauge steel frame and spool, and an aluminum drum for long service.

Unlike the spring reels in this selection, this reel is wound by hand. The 12 in. drum stores 100 ft of 3/4 in. hose (outer diameter 1.075 in.). The model ships with a 10 ft x 3/4 in. inlet hose and a 3/4 in. NPT male to garden-hose female conversion fitting, so a standard garden hose can be connected as the outlet. The outlet hose itself is not included.

Page features

• Upright 11 gauge steel, spool 16 gauge steel and drum aluminum 6063-T6
• T-handle tensioning device applies tension to stop free spooling
• Removable gooseneck for easier loading of long hose lengths
• Individually powder-coated components; made in the USA

Technical specification

Reel data

Materials

Reading GCCA33112 L

The family covers 6, 12, 18, 22 and 27 in. drums in the instruction manual (CA30106 to CA33128 codes). In GCCA33112 L the 112 refers to the 12 in. drum, and the suffix L marks the low-pressure version, while M versions are medium pressure. The manual lists drum sizes with a 0.531 in. mounting hole pattern; for this 12 in. unit the page gives a 25.75 in. overall dimension E.

Delivery on the product page is quoted as an estimated 10 business days, with a note to consult Reelcraft Customer Service for large quantities. Because the outlet is a 3/4 in. NH (garden hose) male thread, an ordinary garden hose can be attached without adapters, whereas an industrial hose with NPT ends needs a different fitting.

Mounting and static precautions from instructions 837-696A

Mount on a flat surface using four customer-supplied bolts through the 1/2 in. holes in the side supports, since an uneven surface can bind the reel. A flexible connection is needed to compensate for offset between the supply line and the swivel, and thread compound should be applied to all threads.

• Hold the fluid path with a wrench when removing the hose connector.
• Remove supply pressure before replacing the swivel.
• When working around solvents, paints, chemicals or petroleum products, ground the reel, hose and equipment and check with an ohmmeter.
• Pull hose by the hose itself, not the control handle or swivel.

Washdown points across plants and yards

A central 100 ft reel is practical for equipment washdown, dust suppression and irrigation in camps, workshops and landscaping areas, where laying out loose hose is a trip hazard and leaves hoses to bake in the sun. Hand rewind avoids spring maintenance. The 250 psi rating and 150 F limit mean it is for ordinary water service, not hot water or high-pressure washing. Hand rewinding is slower than a motor but has nothing to wear out electrically, which suits sites where power is not available at the washdown point. Confirm that the 250 psi rating is above the supply pressure at the tap and fit a pressure regulator where the main exceeds it.

Accessories on the page

Listed accessories include the S600830-10 garden inlet hose, S261702 conversion fitting, a 600801-12 340 degree pivot base, a 600741-2 12 in. hand cart with semi-pneumatic tires, and several chrome-plated roller guide assemblies (S600533-2, S600692-2, S600693-2, S602132-2, S602133-2) plus an HDPE roller guide (S602133-2U). The swivel assembly spare is S602026-1.

Selection and installation notes

A hose or cord reel is selected from the fluid or service, the hose size and length, the working pressure and the mounting position. Check that the hose, swivel and fittings are rated for the fluid and the pressure, mount the reel on a solid surface with the bolts and base the maker recommends, set the spring tension with the hose held, guide the hose to the reel without sharp bends and replace the hose at the first sign of wear. Do not use the reel for a fluid it is not rated for.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Frequently asked questions

Is the GCCA33112 L spring driven?

No. It is a hand-crank reel with a T-handle tensioning device.

How much hose does it store?

100 ft of 3/4 in. hose (1.075 in. outside diameter).

What comes included?

A 3/4 in. x 10 ft inlet hose and a 3/4 in. NPT male to garden-hose female fitting; the outlet hose is not included.

What is the pressure and temperature rating?

250 psi at up to 150 F.

What is the drum made of?

Aluminum 6063-T6, with an 11 gauge steel upright and a 16 gauge steel spool.

Documents and quotation

The linked file is Reelcraft form 837-696A, the Series 30000 hand-crank instruction manual. Include hose length, drum size and mounting details in your enquiry; stock and delivery should be confirmed with us before ordering. Seven Star LLC is an independent supplier in Muscat. More products in this range are listed under Pipes & Fittings.
