EBRO RSK Wafer Type Check Valve DN 32 to DN 600

A wafer check valve that stays thin between flanges

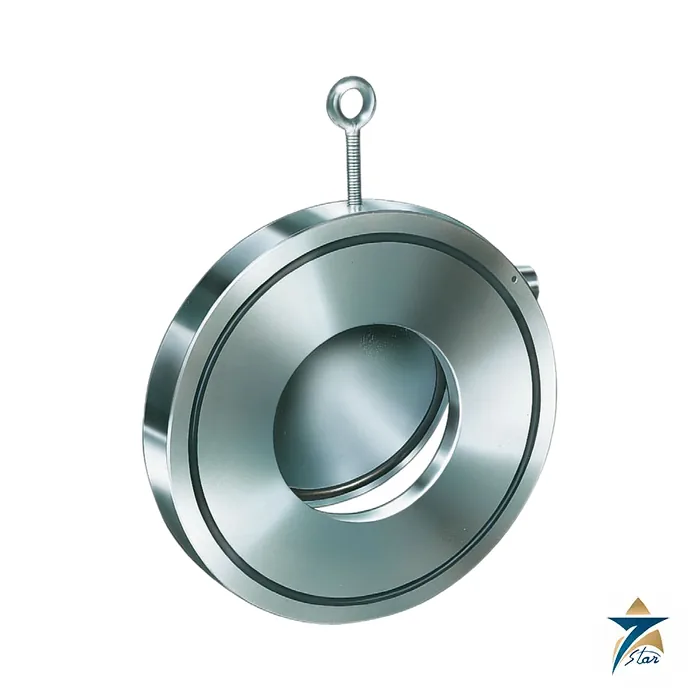

The RSK is EBRO’s wafer type check valve for pipelines where installation length is tight. The data sheet gives nominal sizes from DN 32 to DN 600, flange accommodation to EN 1092 PN 10/16 and ASME Class 150, and a face-to-face length defined by an EBRO works standard rather than by EN 558. The valve is centred over the outside diameter of the body, sealed with O-rings, and fitted with a holder eye that helps lift and centre it while the flanges are pulled together.

One series covers many materials. The body and disc are combined into numbered types, from aluminium and stainless steel to PVC, PP, PVDF, Hastelloy C4 and aluminium bronze, and every construction is available in a spring-returned version for pulsating or resonant flow conditions.

Technical specifications

Body and disc types

The type number tells you the body and disc materials. The datasheet lists these combinations; other special materials are available on customer request.

Dimensions and weights

The outer diameter A, the building length B for the plastic version without spring, and the dimensions C, D and G come from the data sheet drawing. Metal versions with a manual emergency switch or spring show longer B values in the full table, so request the complete sheet for those variants.

Flow, Kv value and opening pressure

The pressure loss diagram in the data sheet refers to water at 20 °C. The table below keeps the metal-version Kv value and the minimum opening pressure in millibar for the four flow cases: without and with spring, horizontal and vertical flow.

Reading the table, the spring adds roughly 13 mbar of opening pressure to horizontal flow in the smaller sizes (2 to 15 mbar), so a spring-returned valve needs more differential pressure to open. This is a derived comparison, not a datasheet statement.

Installation points from the data sheet

• Keep at least 0.3 bar of back pressure so that the swing check closes tight.
• Do not mount the valve directly on a pump flange. If a bend follows the valve, the smoothing section should not be shorter than 5 x DN.
• The valve can be installed in any desired position; vertical and horizontal flow both have printed opening pressures.
• Materials can be changed among each other, and the holder eye acts as an installation aid.

Where the RSK is used

Check valves of this type protect pumps and prevent reverse flow in water, chemical and process pipework. The material range lets a buyer match the medium: PVC or PP for corrosive but cool liquids, PVDF or Hastelloy C4 for aggressive chemicals, and aluminium bronze for seawater-type duties. The data sheet does not list application sectors for the RSK, so those pairings are general engineering guidance and the medium should always be confirmed.
