Brand: EBRO ARMATUREN

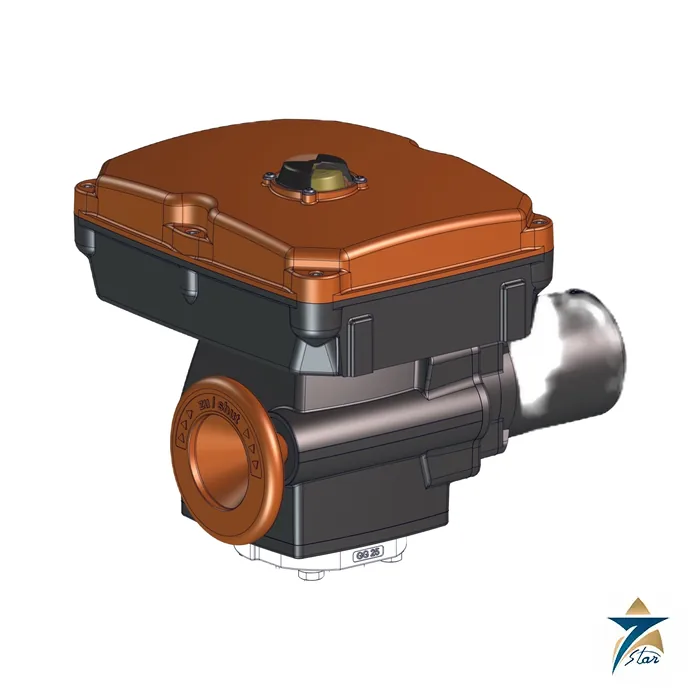

EBRO MS3 Electric Control Drive with IO-Link
Description
A modulating electric part-turn drive with IO-Link and Bluetooth
The MS3 is EBRO ARMATUREN’s electrical control drive, a modulating part-turn actuator with an EN ISO 5211 valve interface. It is built on the E65, E110 and E160 actuator sizes and adds control electronics: a control board and a power board, a non-contact angle sensor, an acceleration sensor and a temperature sensor. Local operation uses a pushbutton and an RGB status light, with IO-Link and Bluetooth for remote setup.
Because it accepts a 4-20 mA or 0-10 V setpoint and can report position back on a 4-20 mA or 0-10 V output, the drive can sit directly on a flow or level loop without a separate positioner. Three digital inputs and three digital outputs add open/closed, intermediate position, an external process sensor and fault feedback.
Technical specifications
| Parameter | Specification |
|---|---|
| Housing | Powder-coated aluminium |
| Operator interface | Pushbutton, IO-Link link, Bluetooth link and RGB status light |
| Temperature range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Electrical connection | Screw terminals, 26-16 AWG (0.129 to 1.31 mm2); optional M12 chassis connector |
| Recording range | 100 degrees |
| Dead zone | 1 to 10 %, factory setting 3 % |
| Safe position on failure | Hold, close or open |
| Power supply | 230 V AC (-5 % / +10 %); optional 110 V AC noted in the terminal table |
| Position detection | Contactless angle sensor |
| Built-in sensors | Acceleration and temperature |
| Setpoint and additional analog input | 4-20 mA or 0-10 V |
| Analog feedback output | 4-20 mA or 0-10 V |
| Digital inputs | Three: open/closed, intermediate position, external process sensor |
| Digital outputs | Three: open, closed, fault or intermediate position |
| Power supply polarity protection | Yes |
| Actuator sizes | E65 to E160 |
| Operating times | 12 s / 24 s |
| Insulation class | F |
| Cable gland | 2 x M20 x 1.5; diameter 6 to 13 mm |
| Manual emergency override | 15 turns for 90 degrees; 4 Nm (E65), 20 Nm (E110), 35 Nm (E160) |
Torque, current and flange by actuator size
| Size | Voltage (V) | Operating time 0-90 degrees | Nominal torque | Nominal current | Start-up current | Power | Flange and shaft intake |
|---|---|---|---|---|---|---|---|
| E65 WS | 230 | 12 s / 24 s | 80 / 60 Nm | 0.55 / 0.3 A | 0.8 / 0.4 A | 0.125 / 0.066 kW | F04 or F05 and F07 combined; square 10, 11, 12, 14, 16, 17 mm |
| E110 WS | 230 | 12 s / 24 s | 400 / 320 Nm | 1.3 / 0.65 A | 2 / 1.5 A | 0.26 / 0.138 kW | F07 and F10 combined; square 12 to 28 mm |
| E160 WS | 230 | 24 s / 48 s | 1200 / 800 Nm | 1.3 / 0.65 A | 2 / 2.5 A | 0.26 / 0.138 kW | F10, F12, F14, F16; square 22 to 40/50 mm |
The slower operating time is marked as an option in the sheet, and the torque falls with it, for example from 80 Nm to 60 Nm on the E65. Frequency is 50 Hz for all three sizes. Weights are 10.3 kg (E65), 19.0 kg (E110) and 29.0 kg (E160).
Standards and communication
| Parameter | Specification |
|---|---|
| Duty cycle | Class C according to DIN EN ISO 22153:2021-07 |
| Valve interface | DIN EN ISO 5211:2024-10 |
| Corrosion protection | C4 according to DIN EN ISO 22153:2021-07, tested to DIN EN IEC 60068-2-52:2018-08 |
| Protection class | IP67 according to DIN EN 60529:2014-09 |
| IO-Link | COM3 (230.4 kBaud), revision 1.1.4, minimum process cycle time 10 ms, class A |
| Conformity | CE, IO-Link |
The data sheet says further certificates and approvals are available on request; no explosion-protection rating is printed for the MS3 itself.
Wiring and commissioning
The connection table assigns a 24 V DC supply and GND on the control board, analog inputs 1 to 3, analog outputs, digital outputs for collective fault and for the OPEN and CLOSED positions, and the power board terminals for 230 V AC L, N and PE. A switching suggestion shows fuse F1, signal lamps for CLOSED, OPEN and fault, an input signal and a feedback signal. The dead zone of 3 % and the safety position should be set to suit the process, for example a failsafe closing action.
Where an MS3 helps
A modulating electric drive suits water treatment, HVAC and process lines where compressed air is unavailable, such as remote pumping stations or desalination plants. In very hot enclosures, check the -20 °C to +60 °C limit. EBRO’s own butterfly valves such as the Z 611-A and F 012-A offer an EN ISO 5211 top flange that matches this drive family.
Information to send with an RFQ for the EBRO MS3 Electric Control Drive with IO-Link
An actuator is sized for the valve it will drive. For the EBRO MS3 Electric Control Drive with IO-Link, tell us the valve type, size and make, the torque or force required with a safety margin, the operating time you need and whether the valve must fail open, fail closed or stay in position on loss of power or air.
- Supply: instrument air pressure range, or electrical voltage, phase and frequency.
- Control signal: on/off, 4-20 mA modulating, or a fieldbus such as IO-Link.
- Accessories: solenoid valve, limit switch box, positioner, manual override.
- Environment: ambient temperature, ingress protection and any hazardous area rating.
Valve and actuator are best quoted together so the mounting kit and coupling are included and the assembly can be checked before shipment.
Each quotation for the EBRO MS3 Electric Control Drive with IO-Link states the exact manufacturer part number, the documents that will accompany the shipment, the expected lead time from the factory and the delivery terms to your site. If the part number on an existing nameplate is incomplete or worn, send a clear photograph of the label and of the installed unit, and the correct ordering code can be confirmed with the manufacturer before the offer is issued.
Related items and documents
See the valve actuators category for further actuators. Datasheet provided. Seven Star LLC will respond to a request for MS3 once the actuator size, voltage and quantity are known.
Frequently asked questions
Which actuator sizes does the MS3 cover?
The E65, E110 and E160, with nominal torques of 80 Nm, 400 Nm and 1200 Nm at the faster operating time.
What control signals does it accept?
A 4-20 mA or 0-10 V setpoint, plus IO-Link communication and three digital inputs.
What is the protection class?
IP67 according to DIN EN 60529:2014-09, with corrosion protection class C4.
Is there a manual override?
Yes. A manual emergency override takes 15 turns for 90 degrees with 4 Nm, 20 Nm or 35 Nm depending on size.
What supply does it use?
230 V AC (-5 % / +10 %); an optional 110 V AC supply is noted in the wiring table.
Datasheets & Documents
- Datasheet EBRO MS3 electrical control drive technical data sheet, version 16/02/2026 (PDF) Download
