Brand: Donaldson

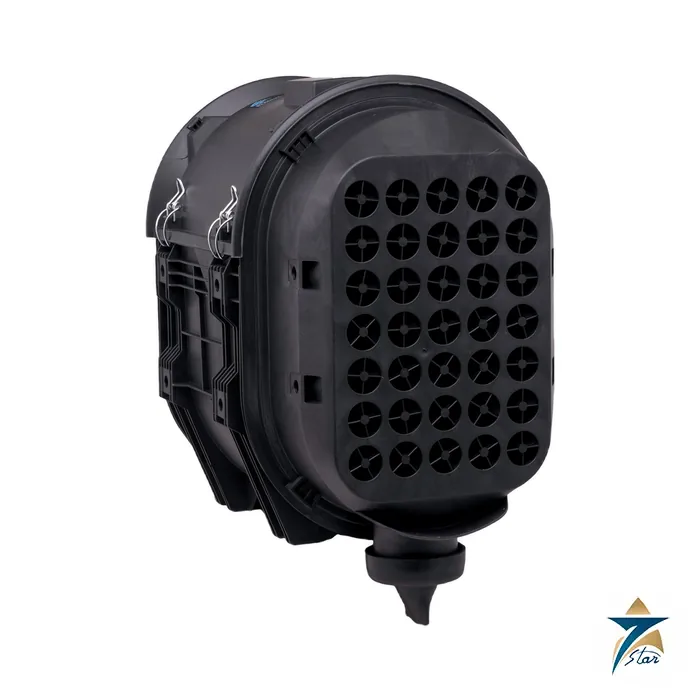

Donaldson D090266 PowerCore PSD Air Cleaner
Description
A compact two-stage PowerCore air cleaner with integrated pre-cleaner, 291 cfm
The Donaldson D090266 is a PowerCore PSD air cleaner with side filter service access, intended for off-road equipment in medium to heavy dust. The PSD family offers two-stage filtration in one compact non-metal unit: high-efficiency pre-cleaner tubes ahead of a PowerCore straight-through primary filter and a safety filter. The sheet quotes engine airflows up to 1,252 cfm across the family.
The obround housing allows narrow or wide mounting, built-in mounting brackets on three sides remove the need for mounting bands, and the cover is removed without tools. The pre-cleaner drop tube can be used as a scavenge line or with a Vacuator valve, and a service indicator port is provided.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | D090266, vertical orientation, service access on side |
| Airflow, initial restriction (non-scavenged) | 291 cfm at 4 in H2O; 339 cfm at 6 in; 382 cfm at 8 in |
| Metric equivalent | 8.2 m3/min at 10 mbar; 9.6 at 15 mbar; 10.8 at 20 mbar |
| Stages | Pre-cleaner tubes, PowerCore primary filter, safety filter |
| Temperature tolerance | -40 F to 180 F / -40 C to 82 C sustained |
| Weight | 3.7 kg / 8.1 lb |
| Service clearance | 356 mm / 14.0 in |
| Dimensions A x B x C | 102 x 433 x 362 mm (4.00 x 17.05 x 14.25 in) |
| Dust removal | Scavenge line or Vacuator valve on the drop tube |
| Document | Engine Air Filtration catalogue, pages 34-39 |
Related PSD models
- D080020: Orientation and access End access, horizontal; cfm at 4 / 6 / 8 in H2O 181 / 211 / 237
- D090266: Orientation and access Side access, vertical; cfm at 4 / 6 / 8 in H2O 291 / 339 / 382
- D090285: Orientation and access Side access, horizontal; cfm at 4 / 6 / 8 in H2O 284 / 332 / 374
- D100366: Orientation and access Side access, vertical; cfm at 4 / 6 / 8 in H2O 460 / 539 / 609
- D120339: Orientation and access Side access, vertical; cfm at 4 / 6 / 8 in H2O 629 / 737 / 832
- D140111: Orientation and access Side access; cfm at 4 / 6 / 8 in H2O 951 / 1,111 / 1,252
Selected models. The sheet lists about twenty PSD models in total; D090266 is the flagship of this page.
Scavenging and installation
PSD air cleaners run with or without aspiration, also called scavenging, and the sheet recommends a scavenge system for horizontally mounted PSD12 and PSD14 applications. Scavenged system components such as exhaust ejectors and check valves are listed in the same catalogue.
Add the restriction of ducting, elbows and any further pre-cleaning to the air cleaner value to obtain the total intake restriction. If two models fit the engine airflow, the one with the lower restriction gives longer filter life. Confirm the model and the orientation with the nameplate on the machine before ordering service parts.
Filter service access is either at the inlet end (PSD08 end-access models) or on the side (PSD08 to PSD14). The side-access cover is water tight and a service handle is attached to the filter, so the primary filter lifts out with no tools. Containment of dust is a design aim: dust and dirt stay in the filter during service. Models for PSD14 use stretch-limited latches and an optional gasket, P623192, seals the air cleaner to an inlet duct.
Documents and quotation
Interested in D090266? Send the full code and quantity. Please confirm the engine airflow, mounting orientation and scavenge arrangement using Donaldson PowerCore PSD air cleaner data sheet (Engine Air Filtration pp. 34-48), attached to the page. Related: Filter Housings.
Datasheets & Documents
- Datasheet Donaldson PowerCore PSD air cleaner data sheet (Engine Air Filtration pp. 34-48) Download
Reviews (0)
About brand
Donaldson is the American filtration company founded in Minnesota in 1915. It started when Frank Donaldson Sr. built an air cleaner for a tractor engine that kept failing in dusty fields. It is now headquartered in Bloomington, Minnesota, and makes filters and filtration systems for engines, hydraulics, compressed air and gases, dust collection and process liquids.
Seven Star LLC is an independent supplier in Muscat. We list Donaldson compressed air dryers and filters, gas filter housings, activated carbon adsorbers, hydraulic and fuel filtration and dust collectors, and supply them and their replacement elements in Oman and the GCC.
Donaldson company profile
| Established | 1915, Minnesota, USA, by Frank Donaldson Sr. and his family |
|---|---|
| First product | An air cleaner for tractor engines |
| Headquarters | Bloomington, Minnesota |
| Product families | Engine air and fuel filters, hydraulic and lube filters, compressed air and gas filters and dryers, dust collectors, process and sterile filtration |
Milestones
- 1915: Frank Donaldson Sr. builds an air cleaner for a tractor that kept failing in a dusty field; the family starts Donaldson Company in Minnesota.
- 1917: Air cleaners are supplied for artillery tractors.
- 1920s: Exhaust products are added after crop fires caused by engine sparks.
- 1974: Donaldson acquires Torit, the dust collector business.
- 2015: The company marks its 100th year.
Donaldson products we list
| Family | Models | Typical use |
|---|---|---|
| Compressed air filters and drains | DF Ultra-Filter, DF-T three-stage, DF-C cyclone, UFM-P drain | Removing water, oil and particles from compressed air |
| Adsorption and refrigeration dryers | Ultrapac HL, HRE+, HRS+, HRS-L+, HLP, Buran, Bora, HRC-T hydrogen | Instrument air with a low dew point, high-pressure air and gas drying |
| Activated carbon and breathing air | Ultrasorp AKC, Ultrasorp Smart, Ultrapure ALG breathing air, A element, AK element | Removing oil vapour and odours for food, pharma and breathing air |
| Gas filter housings | EG (ATEX), HD high-pressure | Process gases and high-pressure gas filtration |
| Hydraulic and fuel filtration | FLK, HNK Duramax, filter cart, Filter Buddy, T.R.A.P. breather, P568583, P574958, AG1398001 skid | Cleaning hydraulic oil and bulk fuel and keeping moisture out of tanks |
| Dust collection | DCE 125 B bin vent | Silo and bin venting for cement, powders and bulk solids |
Compressed air quality is set by ISO 8573-1 classes for particles, water and oil. A typical instrument air system uses a coarse filter and a fine coalescing filter before the dryer, an adsorption dryer for a low pressure dew point (for example -40 °C), and a dust filter after it. An activated carbon stage removes oil vapour where the air touches food or is breathed. Heatless dryers use some of the dry air to regenerate the desiccant, while heat-regenerated and zero-purge types save that air on larger systems.
Where Donaldson products are used
In Oman and the GCC, Donaldson filters and dryers are used for instrument and plant air in oil and gas, refining, power and desalination plants, for breathing air, in food and pharmaceutical production, on hydraulic systems and fuel storage, and in cement and bulk handling.
Ordering Donaldson products: what we need
Send the model and size from the nameplate. For dryers and filters, add the flow (m³/h or scfm), working pressure, inlet temperature, required dew point or ISO 8573-1 class, and the supply voltage. For replacement elements, send the element part number or the housing model.
Facts checked against Donaldson company history, October 2026.
Browse Donaldson products by category: Compressors, Filter Housings, Filtration Systems, Filtration Elements.
Related products
Frequently Asked Questions
What is the D090266?
A PowerCore PSD two-stage air cleaner with side service access for vertical mounting, rated 291 cfm at 4 inches H2O.
What dust conditions is it for?
Medium to heavy dust, using the integrated pre-cleaner tubes.
Is a safety filter included?
Yes, a safety filter is included with the primary filter.
Can it scavenge dust?
Yes. The drop tube can be used as a scavenge line or with a Vacuator valve.
What is the temperature limit?
Sustained -40 F to 180 F (-40 C to 82 C).
