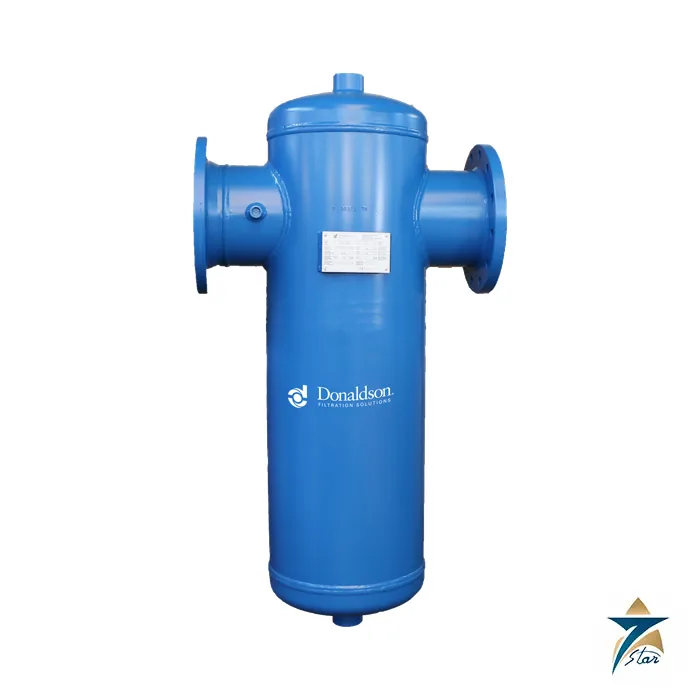

Donaldson SG-C 1650-11000 Flanged Cyclone Separator
Description
A large flanged cyclone separator for heavy condensate loads
The Donaldson SG-C 1650-11000 is a carbon steel cyclone separator for central compressed air plants, sized from 1,650 to 11,000 m3/h at 7 bar(g). It separates liquid water and solid particles from air or from other fluids of PED group 2, and is installed straight after the aftercooler or wherever a compressor station produces a large amount of condensate that would otherwise burden filters and dryers downstream.
A centrifugal insert makes the air spin so that droplets are thrown to the wall and run into the sump. Donaldson states a retention above 99 percent for liquid droplets and no maintenance of the separating parts, apart from the automatic drain.
Technical specifications
| Parameter | Specification |
|---|---|
| Series / sizes | SG-C 1650, 2250, 3500, 5000, 6000, 7500, 11000 |
| Flow capacity at 7 bar(g) | 1,650 to 11,000 m3/h (1 bar, 25 C, 50 % RH reference) |
| Condensate capacity | 20 to 130 l/h; maximum condensate peak load 120 l/h (1650, 2250) or 350 l/h (3500 and larger) |
| Retention | More than 99 percent of liquid droplets |
| Allowable operating pressure | 16 bar |
| Allowable temperature | 0 C to +200 C; limited to +65 C with the automatic drains fitted |
| Housing | Carbon steel, epoxy painted |
| Connections | Flange DN 80 to DN 200 |
| Drain versions | Standard: time-controlled drain; Superplus: electronic level-controlled drain with alarm contact |
| Included | Separator-to-drain connection kit with ball valve, G 1/2 drain connection |
| Marking / fluids | CE, Pressure Equipment Directive 2014/68/EU, fluids group 2 |
Sizes and condensate capacity
- 1650: Flow m3/h 1,650; Condensate l/h 20; Weight kg (standard) 27; Flange DN 80
- 2250: Flow m3/h 2,250; Condensate l/h 30; Weight kg (standard) 41; Flange DN 100
- 3500: Flow m3/h 3,500; Condensate l/h 40; Weight kg (standard) 51; Flange DN 100
- 5000: Flow m3/h 5,000; Condensate l/h 60; Weight kg (standard) 85; Flange DN 150
- 6000: Flow m3/h 6,000; Condensate l/h 70; Weight kg (standard) 104; Flange DN 150
- 7500: Flow m3/h 7,500; Condensate l/h 90; Weight kg (standard) 127; Flange DN 150
- 11000: Flow m3/h 11,000; Condensate l/h 130; Weight kg (standard) 191; Flange DN 200
Superplus units weigh slightly more because of the level-controlled drain, for example 28 kg for SG-C 1650 and 129 kg for SG-C 7500.
Sizing at a pressure other than 7 bar
Nominal flow is given at 7 bar(g), so the data sheet supplies a correction factor fp for other operating pressures: 0.25 at 1 bar, 0.50 at 3 bar, 1.00 at 7 bar, 1.25 at 9 bar, 1.50 at 11 bar and 2.13 at 16 bar. Divide the actual volume flow by fp to find the size to select. The worked example in the sheet converts 4,200 m3/h at 9 bar(g) into 3,360 m3/h at the nominal condition, which selects SG-C 3500.
Choose the standard time-controlled drain where a high amount of condensate has to be removed and the opening time can be adjusted to the application. Choose Superplus when compressed air loss must be avoided and a condition-monitoring alarm contact is wanted. Donaldson names industrial gases, automotive, food processing and machinery builders as the target industries. Mount the separator upright, connect the drain kit to a safe condensate collection point and, as with any pressure vessel, check the local rules for periodic inspection.
Documents and quotation
SG-C 1650-11000: request a quote from this page. The attached Donaldson SG-C cyclone separator data sheet (F119246, 12/2025) is the reference, and the flow size, operating pressure and drain version should be checked against it. Also see Filter Housings.
