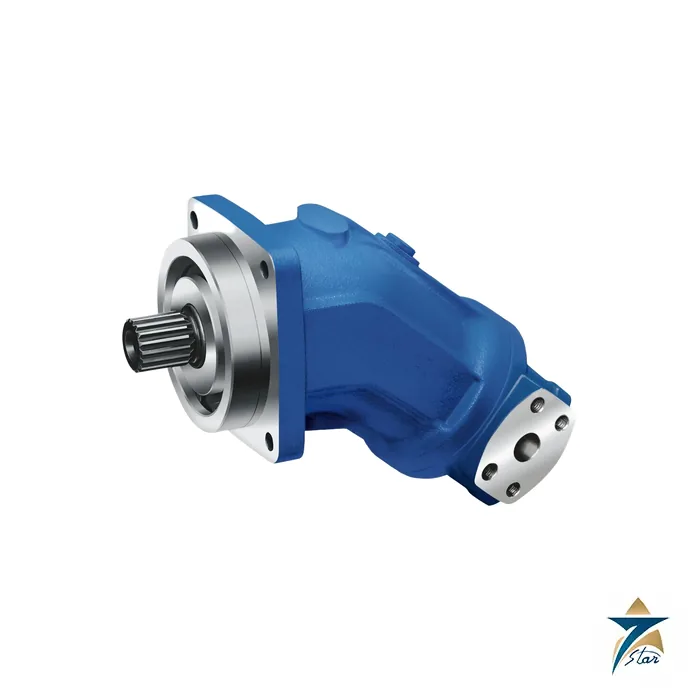

Bosch Rexroth A2FO Axial Piston Fixed Pump
Overview
The Bosch Rexroth A2FO is a fixed displacement axial piston pump of bent-axis design for hydrostatic drives in an open circuit. Data sheet RE 91401 describes series 6 in sizes from 5 to 1000 cm³ per revolution, for use in both mobile and stationary applications. Its flow is proportional to drive speed and displacement, and its tapered piston rotary group gives high power density, small dimensions and high total efficiency. Nominal pressure is 400 bar with 450 bar maximum for sizes 10 to 200, 350/400 bar for sizes 250 to 1000, and 315/350 bar for size 5.
Seven Star LLC supplies the Bosch Rexroth A2FO to equipment owners, hydraulic workshops and OEMs in the Sultanate of Oman and the GCC. The pump is common on truck-mounted equipment, cranes, drilling and well service units, construction machinery, fan drives and industrial power units, which makes it a frequent replacement part for fleets operating between Muscat, the interior oil fields, Duqm and Salalah. With engineering support in Muscat, our team helps confirm size, direction of rotation, shaft, flange and port details from the existing type code before supply.
Operating Principle
In the Bosch Rexroth A2FO the cylinder block is inclined at a fixed angle to the drive shaft. Tapered pistons are connected to the drive flange, so as the shaft rotates the pistons move in and out of their bores in the cylinder block. During one half of the revolution each piston draws fluid from the suction port, and during the other half it pushes fluid to the pressure port. Because the angle between shaft and cylinder block does not change, the displacement per revolution is fixed and the delivered flow depends only on the drive speed. Rexroth uses one-piece tapered pistons with piston rings for sealing.
The practical consequence is that the Bosch Rexroth A2FO is a simple, rugged pump with very few control parts. Pressure in the system is set by the load and limited by a relief valve elsewhere in the circuit, while flow is changed by changing the drive speed, for example with an engine throttle or a variable-speed electric drive. The bent-axis principle allows high pressures and speeds in a compact housing, and the data sheet notes that the drive shaft bearings are designed for the service life requirements usually encountered in mobile and industrial use.
Engineering Design of the Bosch Rexroth A2FO
The Bosch Rexroth A2FO is offered in 22 sizes, from 4.93 cm³ for size 5 to 1000 cm³ for size 1000. Smaller frames are light enough for direct mounting on power take-offs, with a weight of about 6 kg for sizes 10 to 16, while the largest frames weigh about 325 to 336 kg. The data sheet provides drive shaft options with splined and parallel keyed shafts and permissible radial and axial force tables, plus mounting flange and port dimension drawings for every size, which simplifies like-for-like replacement.
For hydraulic fluid, the Bosch Rexroth A2FO is designed for mineral oil based fluids, with an optimum operating viscosity of 16 to 36 mm²/s and a permissible temperature range from –40 °C to +115 °C, the upper limit applying in the bearing area. FKM shaft seals cover case drain temperatures from –25 °C to +115 °C, while an NBR shaft seal is required below –25 °C. The case pressure must be equal to or higher than ambient pressure, and a mean differential of 2 bar between case and ambient should not be exceeded at normal operating temperature. Rexroth asks for a cleanliness level of at least 20/18/15 to ISO 4406, and at least 19/17/14 at very high fluid temperatures from 90 °C up to 115 °C.
Key Features
The key features of the Bosch Rexroth A2FO from data sheet RE 91401 are listed below.
- The Bosch Rexroth A2FO uses an axial tapered piston rotary group of bent-axis design for hydrostatic drives in an open circuit.
- Sizes from 5 to 1000 cm³ per revolution cover small auxiliary drives up to very large industrial pumps.
- Nominal pressure is up to 400 bar with maximum pressure up to 450 bar for sizes 10 to 200.
- Flow is proportional to drive speed and displacement, which makes system behaviour easy to predict.
- High power density and small dimensions allow compact installation on engines, gearboxes and power take-offs.
- High total efficiency reduces heat generation compared with less efficient pump types.
- One-piece tapered pistons with piston rings provide reliable sealing in the rotary group.
- The pump is suitable for mobile and stationary applications with an economical design.
Industrial Applications
Typical applications of the Bosch Rexroth A2FO in Oman include truck-mounted cranes, tippers and hook-lift systems, drilling, workover and well service equipment, cooling fan drives on engines and compressors, concrete and construction machinery, municipal vehicles, marine auxiliaries and industrial hydraulic power units driven by electric motors. Where the drive speed is fixed, the pump delivers a constant flow, and where it runs from an engine, flow follows engine speed, which suits many mobile functions without complex controls.
Seven Star LLC supplies the Bosch Rexroth A2FO together with the Bosch Rexroth A10VSO axial piston variable pump for circuits that need variable displacement, pressure valves such as the Bosch Rexroth MHDBD10K2-1X/315V pressure relief valve that protect fixed-pump circuits, and filtration such as the Bosch Rexroth R928006678 hydraulic filter element. Customers in Muscat, Sohar and across the GCC rely on our engineering team to keep pump, valve and filter supply consistent for their fleets and plants.
Technical Specifications
The table summarises Bosch Rexroth A2FO series 6 data from RE 91401 (06.2012); values are theoretical, rounded and given per the manufacturer table.
| Parameter | Specification |
|---|---|
| Model | Bosch Rexroth A2FO series 6 |
| Type | Axial piston fixed pump, bent-axis design, open circuit |
| Sizes | 5, 10, 12, 16, 23, 28, 32, 45, 56, 63, 80, 90, 107, 125, 160, 180, 200, 250, 355, 500, 710, 1000 |
| Displacement | 4.93 cm³/rev (size 5) to 1000 cm³/rev (size 1000) |
| Nominal / maximum pressure | 315/350 bar (size 5); 400/450 bar (sizes 10 to 200); 350/400 bar (sizes 250 to 1000) |
| Nominal speed | 5600 rpm (size 5) down to 950 rpm (size 1000) |
| Flow at nominal speed | 27.6 l/min (size 5) up to 950 l/min (size 1000) |
| Power at 350 bar | 19 kW (size 10) up to 554 kW (size 1000) |
| Torque at 350 bar | 57 Nm (size 10) up to 5570 Nm (size 1000) |
| Mass (approx.) | 2.5 kg (size 5) to 336 kg (size 1000) |
| Hydraulic fluid temperature | –40 to +115 °C (bearing area maximum 115 °C) |
| Optimum viscosity | 16 to 36 mm²/s |
| Cleanliness | at least 20/18/15 to ISO 4406; 19/17/14 at 90 to 115 °C |
| Shaft seal | FKM (–25 to +115 °C); NBR below –25 °C |
How to Order
To order the Bosch Rexroth A2FO, send Seven Star LLC the full type code or material number from the pump nameplate, or the size, direction of rotation, shaft and flange you need. Our engineering team in Muscat will check the details against the manufacturer data sheet, share the technical datasheet for download and prepare a formal quotation. Seven Star LLC supplies Rexroth pumps to customers in Oman and the GCC with engineering support.
- Datasheet Bosch Rexroth RE 91401 Axial Piston Fixed Pump A2FO Series 6 Data Sheet (06.2012) Download
Bosch Rexroth hydraulic components listed here
Four items are listed. The A10VSO is an axial piston variable displacement pump of swashplate design for open circuits. The DB10G2-5X/50 is a pilot-operated pressure relief valve, and the MHDBD10K2-1X/315V is a direct-operated relief valve in cartridge form. R928006678 is a hydraulic filter element. Older parts may be marked Mannesmann Rexroth; the type codes are read the same way.Ordering Rexroth parts: what we need
The safest reference is the ten-digit material number beginning with R9, printed on the nameplate beside the type code. Send both, with a nameplate photo. For an A10VSO pump, the full code matters: size, controller type, series, direction of rotation, seals, shaft and port plate. For relief valves, give size, pressure stage and seal material. For filter elements, the material number or the complete element code is enough. We supply to buyers across the GCC.Browse Bosch Rexroth products by category: Safety Relief Valves, Filtration Elements, Pumps.
