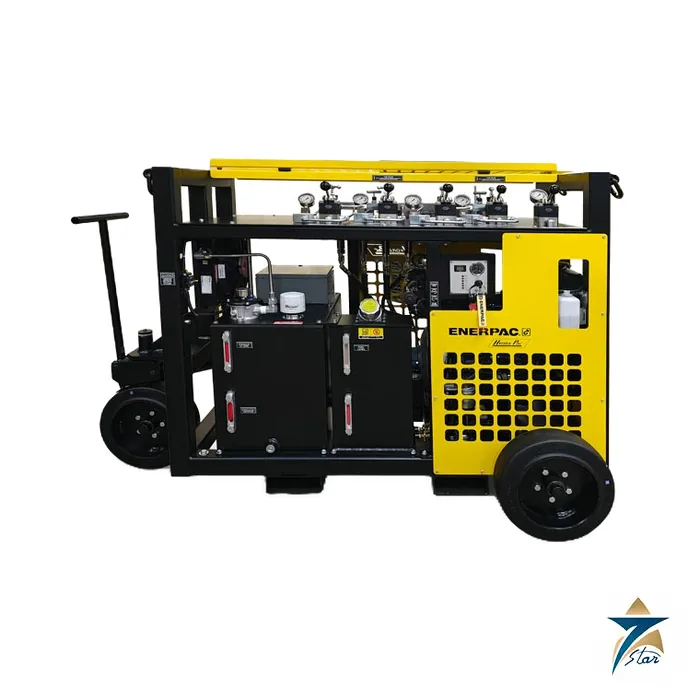

Enerpac SFP837MD Diesel Split-Flow Hydraulic Pump, 8 Outlets

SFP837MD is an Enerpac diesel-powered split-flow hydraulic pump with eight outlets, manual 4-way, 3-position valves and 30 gal of usable oil. Where a conventional multi-point lift needs a generator, cables and an electric pump, this unit carries its own Kubota diesel engine, so a synchronised lifting or skidding job can run on a remote, temporary or power-limited site. The maximum operating pressure is 10,000 psi [700 bar].

A self-contained power source for synchronised lifting

The key idea is the split-flow, check-ball piston pump. Multiple independent pistons on one shaft each deliver the same flow rate to a separate circuit, so each connected cylinder extends at the same rate even if pressure differs between circuits. With an offset centre of gravity the jacks still rise together, while the pressure gauges read differently, and the manual notes the same behaviour on the retract stroke with double-acting jacks.

Each circuit has its own control valve, relief valve, pressure gauge and counterbalance valve. A master control valve dumps all flow to tank in neutral, so selected circuits start together when it is shifted on. The manual says this valve should never be feathered, because partial opening can cost synchronisation.

Key features as printed in the datasheet

• Eight split-flow outlets for double- and single-acting cylinders.
• Self-contained diesel power removes the need for a generator and electrical cabling.
• Manual 4-way, 3-position valves with advance, hold and retract.
• Adjustable pressure relief valve per circuit, and pressure gauges on all circuits.
• Pairing valves allow two outlets to be combined for higher flow to one cylinder.
• Transport-ready cart with wheels and a front wheel brake.

Technical specification

Power unit data (instruction sheet L5029 table 4.1 and product page)

Valves and ports (manual)

Compliance and noise (manual section 2 and 3.2.7)

Selection and ordering guide

The SFP-D family has three diesel models: SFP419MD (4 outlets, 24 HP), SFP634MD (6 outlets, 65 HP) and SFP837MD (8 outlets, 65 HP). Pick by the number of lift points you need on one unit. Single-acting cylinders need optional V10E flow control valves in the return port couplers; with them jacking is synchronous but lowering is not, so keep the load stable on the way down.

The product page lists a different weight and horsepower from the instruction sheet, so this page uses the manual values. All hoses, couplers and cylinders in the circuit should be rated for 10,000 psi [700 bar].

Installation and operation notes

Before starting, check diesel, coolant and engine oil, hydraulic oil level and colour, the V82 valves closed, V10E valves open for single-acting work, and the circuit valves neutral. Start sequence: key to RUN, wait for the glow plug light, then START. Idle at 1000 to 1500 rpm, and for normal jobs run at 1800 to 2400 rpm; do not exceed 2400 rpm. Warm up at least five minutes. A block heater is fitted, and below 10 C the manual points to its cold-weather appendix.

Run cylinders through two complete extend and retract cycles to purge air whenever hoses and cylinders are first connected. Use the cooling fan if the oil gets hot, since the manual warns against excessive oil temperature. Maintenance: inspect before each use, check the return oil filter indicator (MP Filtri element MF1002A10HBP01), and inspect and clean the reservoir at least once a year. The unit is filled with HF ISO 32 fluid.

Applications in Oman and the GCC

In general engineering terms, split-flow units serve bridge-deck jacking for bearing work, machinery lifting and skidding, heavy plant relocation and shipbuilding; the electric SFP manual lists the same uses. A diesel unit suits sites without a convenient power supply, such as remote, temporary or power-limited jobsites, which is how Enerpac positions the SFP-D series. The manual states that sound power exceeds 70 dB(A) at the workstation, so hearing protection is recommended.

Compatible accessories and related items

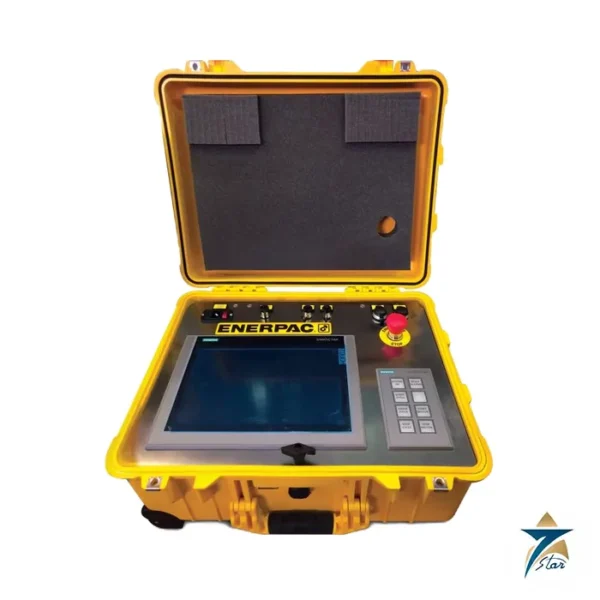

Named in the sources: CR400 couplers, V10E flow control valve, V2 counterbalance valve, V152K relief valve kit, V82K shut-off valve kit, VC4 control valve, 0 – 15,000 psi gauge G2536L, return filter element MF1002A10HBP01, and 10,000 psi hoses and cylinders. The SFPKMN controller network kit is for the electric SFP range and is covered on its own page.

Frequently asked questions

How many outlets does the Enerpac SFP837MD have?

Eight pressure and eight return outlets, each fitted with a CR400 coupler, with a VC4 control valve and V2 counterbalance valve per circuit.

What engine powers the SFP837MD?

The instruction sheet lists a 65 HP Kubota diesel with electric start, liquid cooling and a block heater for cold starts.

Is the lift really synchronised?

Each circuit gets the same flow from the split-flow pump. With single-acting cylinders raising is synchronous but lowering is not.

What is the maximum pressure?

10,000 psi [700 bar]; every hose, coupler and cylinder in the circuit must carry at least that rating.

Can Seven Star LLC supply the SFP837MD?

Seven Star LLC is an independent supplier in Muscat and quotes this unit on request; send quantity and site details through the enquiry form.

Documents and quotation

The Enerpac SFP-D diesel instruction sheet L5029 (English, 32 pages) is attached on this page and covers SFP419MD, SFP634MD and SFP837MD. Seven Star LLC is an independent supplier based in Muscat and quotes on request. Check engine, outlets and cylinder compatibility in the sheet before ordering. Related pumps: category.
