Air Torque DRSC00300S Stainless Steel Pneumatic Actuator

Overview

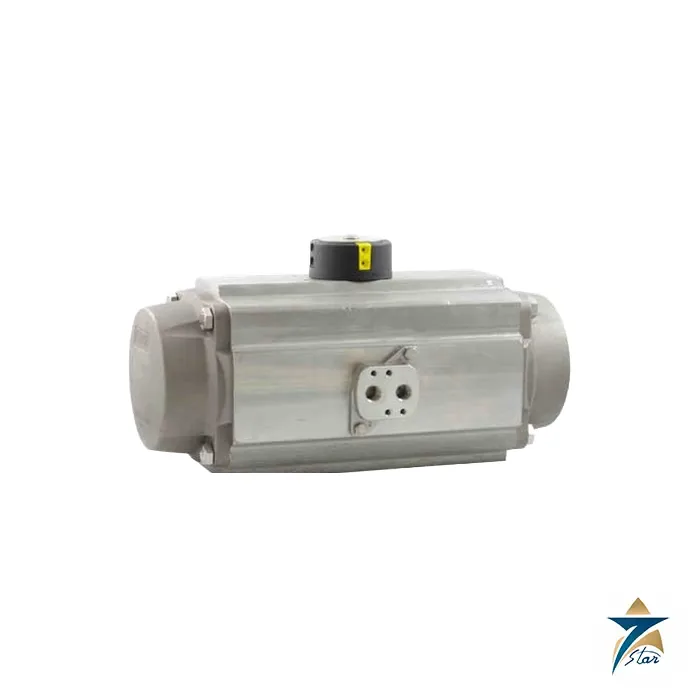

The Air Torque DRSC00300S is the stainless steel version of the Air Torque size 300 rack and pinion actuator, listed on the manufacturer site as DR/SC00300U S within the Edition 2010 stainless steel (VA) line. Body, end caps and drive shaft are made from 316-grade stainless steel, which removes the coating as the weak point in washdown, marine and chemically aggressive areas. Output is the same as the aluminium size 300: 332 Nm double acting at 6 bar, and 198 Nm at the 90° spring position and 126 Nm at the 0° spring position for spring return builds.

Seven Star LLC supplies the Air Torque DRSC00300S to food and beverage producers, pharmaceutical and cosmetics plants, water utilities and coastal facilities across Oman and the GCC, with engineering support in Muscat. For sites on the Muscat, Sohar, Duqm and Salalah coastline, where salt-laden air quickly attacks painted aluminium, a stainless rack and pinion unit is often the lowest lifetime-cost choice.

Operating Principle

The working principle of the Air Torque DRSC00300S is identical to the aluminium range: two racked pistons drive a central pinion through 90°. Port 2 pressure separates the pistons and turns the shaft, and port 4 pressure returns them in double acting DR builds; in spring return SC builds the stroke back is made by springs, giving a fail position on loss of supply. The stainless technical data sheet gives indicative stroking times measured at 5.5 bar with a 4 mm orifice solenoid valve and 8 mm tubing: 0.9 s opening and 1.1 s closing for DR, and 1.2 s opening and 1.4 s closing for SC.

The same sheet lists the air consumption of the Air Torque DRSC00300S as 1.54 litres for the opening stroke and 2.34 litres for the closing stroke. These figures are useful when sizing instrument air headers, buffer vessels and solenoid valves on skids with many actuators, and when estimating how a valve will behave during an emergency shutdown that relies on a limited air reserve. Air Torque cautions that real stroking times change with supply pressure, tubing, accessories and valve load.

Engineering Design of the Air Torque DRSC00300S

According to the 4th Generation stainless steel technical data, the Air Torque DRSC00300S body is stainless steel 1.4401 (F316 to ASTM A182) and the end caps for sizes up to 00300S are cast stainless steel 1.4408 (CF8M to ASTM A351), both with electroless nickel plating, and the integral drive shaft is also 1.4401 stainless steel. End cap screws and washers are A4-70 stainless steel, while bearings, piston guides and the position indicator are high-grade polymers and O-rings are M-NBR. Pistons are anodized pressure die-cast aluminium as standard; the manufacturer offers stainless steel pistons and springs as options, which raise the maximum control pressure to 15 bar.

Dimensionally, the Air Torque DRSC00300S measures 345 mm long (A), 157 mm high (B) and approximately 159 mm deep (C), with top accessory interface dimensions F of 80 mm and G of 30 mm. The ISO 5211 base offers F07 and F10 drilling with a 22 mm female square and a centering ring, and the air ports are 1/4 inch ISO 228, with NPT threads available on request. Approximate weight is 22.6 kg for the DR and 24.5 kg for the SC version. A spare parts list with complete and O-ring kits is included in the datasheet.

Key Features

The Air Torque DRSC00300S is selected where corrosion resistance and hygiene matter:

• Body and drive shaft in 1.4401 / F316 stainless steel and end caps in 1.4408 / CF8M, all electroless nickel plated.
• Air Torque DRSC00300S output of 332 Nm double acting and 198 / 126 Nm spring return, identical to the aluminium size 300.
• Standard or polished surface finish for sanitary and pharmaceutical installations.
• Optional stainless steel pistons and springs, allowing control pressure up to 15 bar.
• ISO 5211 F07/F10 base with DS22 square and centering ring, plus NAMUR air connection plate.
• Documented stroking times and air volumes for accurate pneumatic system design.
• Seal options for standard, high and low temperature service from the Edition 2010 platform.
• Built to DIN EN 15714, ISO 5211, DIN 3337, VDI/VDE 3845 and NF E29-409.

Industrial Applications

Air Torque positions the stainless version, including the Air Torque DRSC00300S, for the food industry, oenology, pharmaceuticals, cosmetics, water and sea areas, sanitary facilities and corrosive environments. In Oman, the Air Torque DRSC00300S fits naturally on butterfly valves in dairy, juice and bottled water plants, on CIP and washdown lines that see regular caustic and acid cleaning, on seawater and brine valves at desalination plants, and on valves mounted outdoors on jetties, offshore-facing terminals and fish processing facilities along the coast.

Seven Star LLC supplies the Air Torque DRSC00300S as a bare actuator or with mounting kits and accessories. For control duty we can pair it with positioners, and for on/off service with NAMUR pilot valves such as the ASCO 551 NAMUR pilot solenoid valve. Where higher torques or heavy-duty construction are needed, customers can compare the Bettis CBB-Series scotch yoke actuator or the Flowserve Rotadisk pneumatic actuator, which are also available from our team.

Technical Specifications

Specifications of the Air Torque DRSC00300S below are taken from the Air Torque product page and the 4th Generation stainless steel technical data sheet:

How to Order

To order the Air Torque DRSC00300S, send Seven Star LLC a formal RFQ with function, spring set, fail position, surface finish, temperature version and the valve interface, and our instrumentation division will confirm the configuration and quote supply on request. The stainless steel technical data sheet and the operating manual are attached on this page. Seven Star LLC supplies Air Torque stainless and aluminium actuators to customers across Oman and the GCC, with engineering support from Muscat.
