Brand: Streamlight

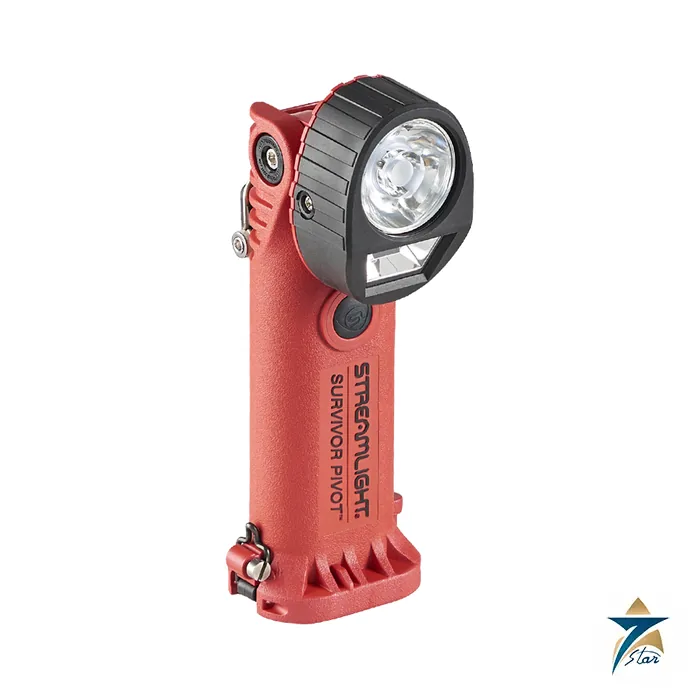

Streamlight Survivor Pivot ATEX Zone 0 Dual-Beam Right-Angle Light
Description
A Zone 0 right-angle light with a pivoting head and two beams
The Streamlight Survivor Pivot ATEX puts a 90-degree articulating head on the right-angle body. A cool-white spot LED reaches 369 m while a downward-angled flood beam lights the area underfoot, and the two can be used together for 325 lumens. The head can be pointed up, forward or down without the user changing how the light is carried.
The translucent push-button switch carries a battery status indicator and steps through the intensity modes. A heavy-duty clip with a built-in D-ring attaches to belts and harnesses, an optional removable magnet with 30 lb pull strength gives hands-free work on steel, and the charge cradle is shaped for one-handed removal.
Technical specifications
| Parameter | Specification |
|---|---|
| Item numbers | 91822 ATEX 100V AC/12V DC; 91823 ATEX 230V AC/12V DC; 91824 ATEX 240V AC/12V DC; 91820 ATEX alkaline; 91821 ATEX light only (all orange) |
| Spot beam, high / low | 300 / 70 lumens; 34,000 / 8,500 candela; 369 / 184 m |
| Flood beam, high / low | 300 / 70 lumens; 300 / 75 candela; 35 / 17 m |
| Combined, high / low | 325 / 80 lumens; 19,000 / 5,000 candela; 276 / 141 m |
| Run time, Li-ion | Spot or flood 4.25 h high, 16 h low; combined 3.75 h high, 13 h low |
| Run time, alkaline | Spot or flood 5.5 h high, 15 h low; combined 4.5 h high, 12 h low |
| Battery | 3.4 Ah Li-ion pack, rechargeable up to 1,000 times, full charge in 5 hours; three optional AA alkaline cells |
| Dimensions | Height 20.14 cm; width 7.26 cm; thickness 8.36 cm (9.25 cm with magnet) |
| Weight | 459 g Li-ion; 473 g alkaline; with magnet 499 g and 513 g |
| Ingress and impact | IP67, waterproof to 1 m for 30 minutes; 2 m impact tested |
| ATEX | II 1G Ex ia op is IIC T3/T4 Ga; SGSNA 24 ATEX 012901 |
| IECEx / InMetro | IECEx SNA 24.0001; DNV 24.0239 |
| Fire service | Meets NFPA 1970 500 F requirement (2025); charger meets NFPA 1900 (2024) |
Battery indicator and T-class
The switch boot shows a solid green for 5 seconds when the light is charged and ready, solid red when 45 minutes or less remain, and flashing red when 15 minutes or less remain. That signal is useful in a Zone 0 area, where changing a battery is not allowed.
T4 applies with Streamlight pack 90347, Duracell MN1500, Varta 4006 and Energizer EN91, and T3 with Streamlight pack 90340. Charge it in a non-hazardous area, as Streamlight’s instructions for its rechargeable lights require, and keep the magnet option, with its 30 lb pull, away from magnetically sensitive instruments.
Choosing the Pivot over the Survivor X
The Pivot weighs about 113 g more than the Survivor X (459 g against 346 g with Li-ion), but it is the only model in the range with a separate flood beam and an articulating head. It is the better choice for ladder work, tank cleaning and valve operation where light must be directed up, forward and down.
The information sheet continues on its reverse side with further item numbers, and the fact sheet names a 5-unit bank charger as an accessory; check both when ordering.
Documents and quotation
The attached Streamlight documents are the fact sheet and the information sheet with item numbers, and the operating instructions. Confirm the voltage group and whether a magnet and bank charger are needed, and the item number for the ATEX or InMetro version. State the voltage group, magnet requirement and quantity, with the zone classification where it applies. More lighting and electrical items are listed under Electrical & Power.
Datasheets & Documents
Reviews (0)
About brand
Streamlight is an American manufacturer of professional flashlights, headlamps, lanterns and scene lights. The business was set up in 1973 near Philadelphia by investor Harry French around a high-intensity light that grew out of a solar simulator built for NASA. Streamlight moved to its present 240,000 square foot headquarters and plant in Eagleville, Pennsylvania, in 2001.
Seven Star LLC is an independent supplier in Muscat. We list Streamlight hazardous-area and industrial lights for oil and gas, petrochemical and plant maintenance teams in Oman and the GCC.
Streamlight company profile
| Founded | 1973, King of Prussia, Pennsylvania, USA |
|---|---|
| Origin | A halogen light developed from a NASA solar simulator, turned into a handheld light for police and military users |
| Headquarters | Eagleville, Pennsylvania, since 2001 |
| Leadership | Raymond L. Sharrah, CEO; Michael F. Dineen, President since February 2025 |
| Product families | Stinger rechargeable lights, ProTac and Survivor flashlights, intrinsically safe lights and headlamps for hazardous locations, Vantage and Enduro helmet lights, Waypoint and E-Spot lanterns, portable scene lights |
Milestones
- 1973: Streamlight is set up in King of Prussia, Pennsylvania.
- 1977: The company is based in Norristown, Pennsylvania.
- 2001: Streamlight moves to its Eagleville headquarters.
- 2023: Streamlight marks 50 years in business.
Streamlight product series
ATEX and IECEx rated flashlights include the 2AA and 2AAA ProPolymer HAZ-LO for zone 0, the Dualie 3AA family with dual beam, laser and Color-Rite versions and the rechargeable Dualie, the Survivor, Survivor X and Survivor Pivot right-angle lights, and the Stylus and Stylus Reach penlights for zone 1. Headlamps include the 3AA HAZ-LO and Enduro Pro HAZ-LO.
Lanterns and area lights include the Vulcan 180 HAZ-LO rechargeable lantern for zone 0, the Vulcan LED for zone 2, the E-Flood LiteBox, the Super Siege lantern and the Syclone magnetic work light for unclassified areas.
Where Streamlight lights are used
Inspection and maintenance in refineries, gas plants, tank farms and offshore facilities, confined space entry, emergency response and general plant work. Marking, zone, gas group and temperature class differ by model and by the battery fitted, so the certificate and product label must match the area classification.
Streamlight products we list
Ordering Streamlight lights: what we need
Send the five-digit item number with the charger voltage or plug type, colour and quantity. For hazardous-area lights state the zone, gas group and temperature class required, because item numbers vary by certification, voltage and package.
Facts checked against Streamlight press releases and trade press histories, October 2026.
Browse Streamlight products by category: Industrial & Hazardous Area Lighting.
Related products
Frequently Asked Questions
What are the beams on the Survivor Pivot ATEX?
A spot beam of up to 300 lumens and a downward flood beam of up to 300 lumens, 325 lumens combined.
How does the head move?
It articulates through 90 degrees on the right-angle body.
What is its ATEX marking?
II 1G Ex ia op is IIC T3/T4 Ga under SGSNA 24 ATEX 012901.
What is the battery?
A 3.4 Ah lithium-ion pack charging in 5 hours, or three optional AA alkaline cells.
Does it have a magnet?
A removable magnet with 30 lb pull strength is available as an option.
