Brand: Streamlight

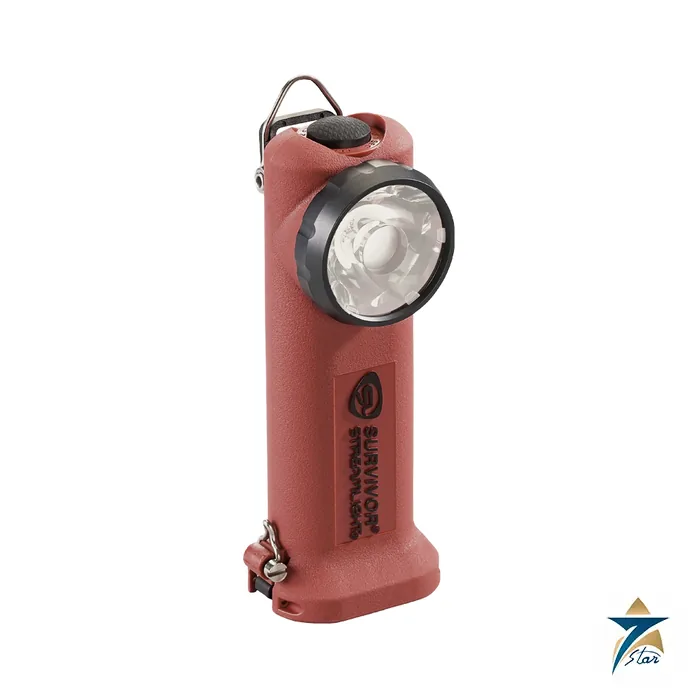

Streamlight Survivor ATEX Rechargeable Right-Angle Flashlight
Description
The classic right-angle flashlight in an ATEX-rated rechargeable version
The right-angle head on the Streamlight Survivor ATEX lets the user clip the light to a belt, harness or turnout gear and still point the beam forward. It is a favourite with fire crews and plant emergency teams, and the ATEX version brings the same format into explosive-atmosphere work. A reduced bezel length lessens snagging, and a spring-loaded clip with a built-in D-ring stops the light rotating.
On high the light delivers 175 lumens and 41,000 candela to 405 m, and on low 60 lumens to 237 m. A single large push button gives gloved access to high, low, an emergency flash and a moonlight mode, and black or amber Smoke Cutter plugs reshape the beam in smoke. The rechargeable battery is an industrial 6.2 V lithium pack that can be recharged up to 1,500 times.
Technical specifications
| Parameter | Specification |
|---|---|
| Item numbers | 90562 ATEX 230V AC/12V DC; 90563 ATEX 240V AC/12V DC; 90564 ATEX 100V AC/12V DC; 90566 ATEX without charger; 90567 ATEX alkaline; InMetro 90580, 90581, 90582 |
| High mode | 175 lumens; 41,000 candela; 405 m beam distance |
| Low mode | 60 lumens; 14,000 candela; 237 m beam distance |
| Run time, Li-ion | High 3.5 hours; low 10 hours |
| Run time, AA alkaline | High 8 hours; low 20 hours |
| Other modes | Flash 5 hours continuous; moonlight mode 15 days continuous |
| Battery | Industrial rechargeable smart lithium, 6.2 V, 1.5 Ah, 2-cell 18650, up to 1,500 charges; optional 4 AA alkaline or lithium pack |
| Charging | 2.5 hour fast charger or 10 hour steady charger; cords for 100, 120, 230, 240 V AC or 12 V DC |
| Dimensions | Height 17.9 cm; width 7.24 cm; diameter 5.89 cm; height in charger 22.0 cm |
| Weight | 388 g (Li-ion or alkaline); 354 g (AA lithium) |
| Housing | Anti-static, non-conductive, high-impact nylon, international safety orange; O-ring sealed; one-way vent valve |
| Ingress and impact | IP66; 2 m impact tested |
| ATEX | II 1G Ex ia op is IIB T3/T4 Ga; II 2G Ex ia op is IIC T3/T4 Gb; FTZU 15 ATEX 0046X |
| IECEx / InMetro | IECEx FTZU 15.0029X; DNV 16.0014X |
| Fire service | Flashlight meets the 500 F requirement of NFPA 1970 (2025); charging rack meets NFPA 1900 (2024) |
Two ratings in one marking
The Survivor ATEX is marked both II 1G Ex ia op is IIB T3/T4 Ga and II 2G Ex ia op is IIC T3/T4 Gb. In plain terms, the light is certified for Zone 0 in gas group IIB and for Zone 1 in gas group IIC, which includes hydrogen. A site with hydrogen in a Zone 0 location would need a different model, such as the Survivor X or Survivor Pivot, which are rated IIC at Zone 0.
The T-class depends on the cell: T4 with the Streamlight pack 90316 or AA Energizer L91 lithium, Rayovac 815 or Duracell MN1500, and T3 with Energizer E91 alkaline or Panasonic LR6XP and LR6XWA. The Smoke Cutter black plug reduces peripheral light for better visibility through smoke and the amber plug reduces eye fatigue.
Survivor, Survivor X and Survivor Pivot
The original Survivor ATEX is the entry model of the right-angle family, with the longest low-mode alkaline run time of the three (20 hours against 15). The Survivor X offers 250 lumens and a IIC Zone 0 marking in a similar body, and the Survivor Pivot adds a dual spot and flood beam and a 90-degree articulating head.
A five-unit bank charger is available for 120, 230 and 12 V DC supplies on the information sheet for fleets and fire stations. Charge only in a non-hazardous area.
Documents and quotation
This page carries the manufacturer’s fact sheet and its information sheet listing the item numbers, and the operating instructions. Confirm the supply voltage, the choice between the rechargeable and alkaline versions, and whether the IIB Zone 0 marking is sufficient for the gases on site. Include the supply voltage, the rechargeable or alkaline choice and the number of units for a bank charger. The Electrical & Power category lists related equipment.
Datasheets & Documents
Reviews (0)
About brand
Streamlight is a manufacturer of professional flashlights, headlamps, lanterns and scene lights based in Eagleville, Pennsylvania, USA. The company traces its current form to 1973 and has more than 50 years of experience in lighting for firefighting, industrial, law enforcement and military users.
Seven Star LLC is an independent supplier in Muscat. We list Streamlight hazardous-area and industrial lights for oil and gas, petrochemical and plant maintenance teams in Oman and the GCC.
Streamlight product series
ATEX and IECEx rated flashlights include the 2AA and 2AAA ProPolymer HAZ-LO for zone 0, the Dualie 3AA family with dual beam, laser and Color-Rite versions and the rechargeable Dualie, the Survivor, Survivor X and Survivor Pivot right-angle lights, and the Stylus and Stylus Reach penlights for zone 1. Headlamps include the 3AA HAZ-LO and Enduro Pro HAZ-LO.
Lanterns and area lights include the Vulcan 180 HAZ-LO rechargeable lantern for zone 0, the Vulcan LED for zone 2, the E-Flood LiteBox, the Super Siege lantern and the Syclone magnetic work light for unclassified areas.
Where Streamlight lights are used
Inspection and maintenance in refineries, gas plants, tank farms and offshore facilities, confined space entry, emergency response and general plant work. Marking, zone, gas group and temperature class differ by model and by the battery fitted, so the certificate and product label must match the area classification.
Ordering Streamlight lights: what we need
Send the five-digit item number with the charger voltage or plug type, colour and quantity. For hazardous-area lights state the zone, gas group and temperature class required, because item numbers vary by certification, voltage and package.
Browse Streamlight products by category: Industrial & Hazardous Area Lighting.
Related products
Frequently Asked Questions
What are the Survivor ATEX output figures?
High: 175 lumens, 41,000 candela, 405 m. Low: 60 lumens, 14,000 candela, 237 m.
What ATEX marking does it have?
II 1G Ex ia op is IIB T3/T4 Ga and II 2G Ex ia op is IIC T3/T4 Gb, certificate FTZU 15 ATEX 0046X.
What is the battery?
A rechargeable 6.2 V lithium pack that can be recharged up to 1,500 times, or an optional four-AA pack.
What is moonlight mode?
A low-level mode for battery conservation that runs for 15 days continuously.
Does it meet fire-service standards?
The fact sheet states it meets the 500 F requirement of NFPA 1970 (2025).
