Calibration Blocks

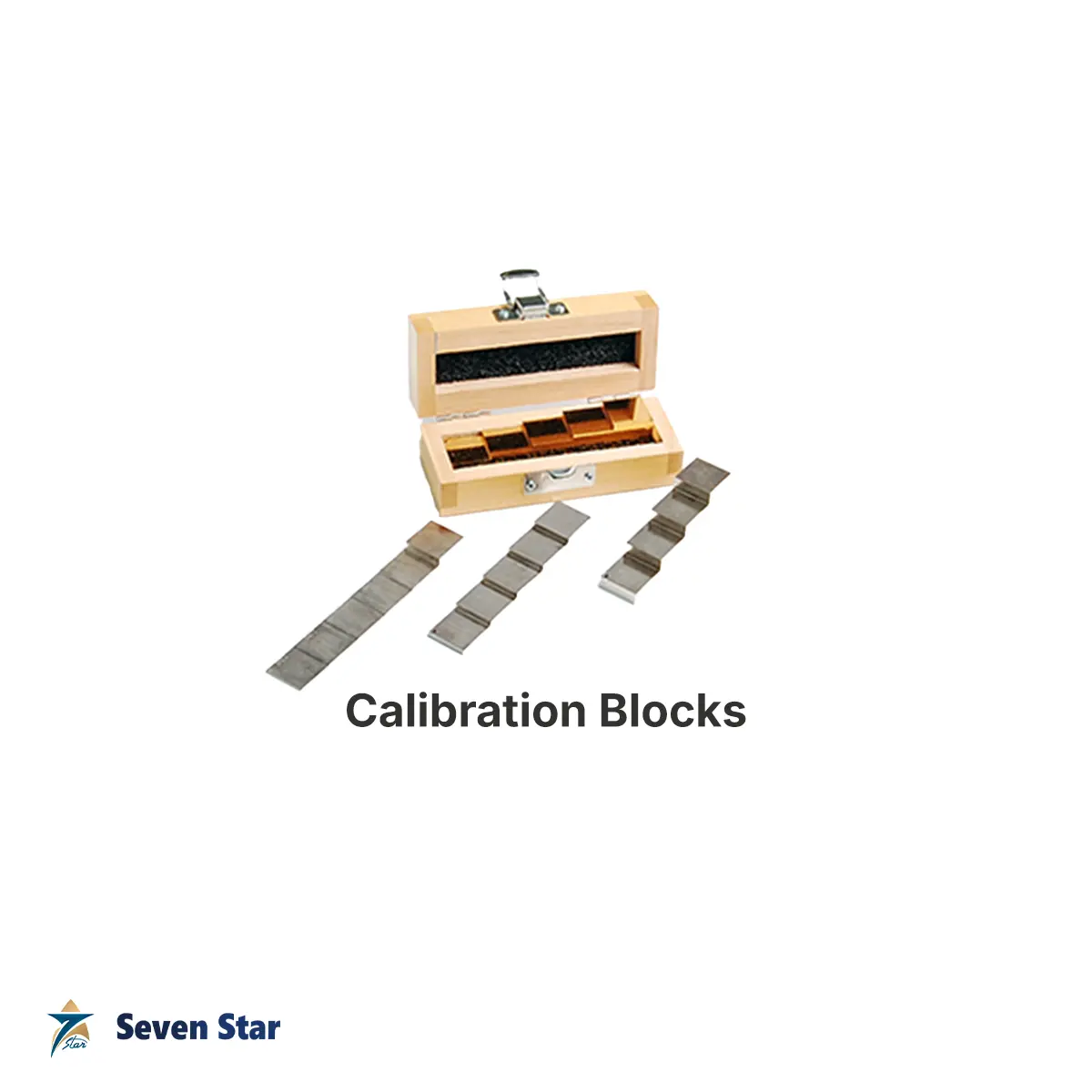

Calibration blocks are precision-machined reference standards used to verify the performance of ultrasonic probes, ensure calibration stability, and validate instrument accuracy before industrial inspections. These blocks are manufactured with exact dimensions, known reflectors, angled notches, side-drilled holes, and reference steps that help technicians set sensitivity, velocity, delay, and gain parameters correctly.

From corrosion surveys and weld testing to flaw detection and material evaluation, calibration blocks allow inspectors to confirm that thickness gauges, flaw detectors, and transducers are operating within required tolerances. These standards are essential in pipelines, aerospace components, refinery vessels, fabrication workshops, power plants, and any application that demands reproducible NDT measurements and traceable quality assurance.

Frequently Asked Questions

What is the primary purpose of using calibration blocks in ultrasonic testing?
Calibration blocks provide a standardized reference point with known physical dimensions and acoustic properties. They are essential for calibrating the time base, establishing reference sensitivity, and evaluating the overall performance characteristics of the ultrasonic system prior to inspection.
How often should calibration blocks be recertified to maintain compliance with industry standards?
It is industry best practice, and often mandated by standards such as ASTM and ASME, to have calibration blocks dimensionally and acoustically recertified annually. This ensures the reference standard has not suffered from wear, corrosion, or structural changes that could compromise inspection accuracy.
Are custom calibration blocks available for inspecting unique material grades or complex geometries?
Yes, we specialize in manufacturing bespoke calibration blocks machined from the exact material alloy and heat-treat condition as the intended test subject. We can also incorporate complex geometries, EDM notches, and flat-bottom holes to replicate specific application defects.
What materials are typically used to manufacture high-quality NDT calibration blocks?
Standard blocks are typically precision-machined from 1018 carbon steel, 304/316 stainless steel, and 7075 aluminum. The selection of the block material must closely match the acoustic velocity and attenuation characteristics of the components being inspected to ensure valid calibration.
How do step wedges and phased array calibration blocks differ in their specific applications?
Step wedges feature graduated thickness intervals specifically designed for calibrating the linearity and range of precision and corrosion thickness gauges. Phased array calibration blocks, such as the PAUT IIW, incorporate complex reflector geometries required to calibrate beam steering, focal laws, and wedge delays for advanced array probes.
