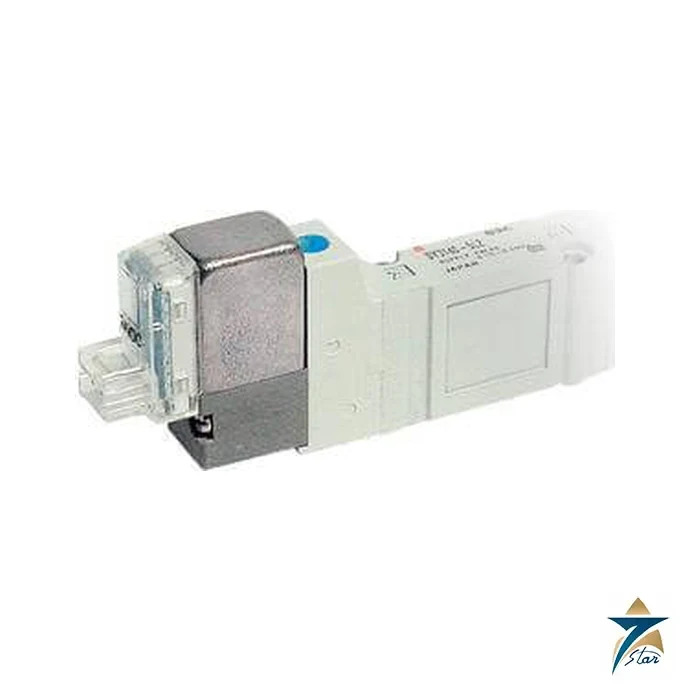

SMC SY5120-5LZD-01 5-Port Solenoid Valve SY5000

The mid-size body-ported valve of the SY series

SY5120-5LZD-01 is a 5-port, 2-position single-solenoid, spring-return pilot valve from the SMC SY5000 series in the body-ported single-unit format. The SY family comes in four body sizes (SY3000, 5000, 7000 and 9000), and the 5000 is the mid-size body, a typical choice for small to medium cylinders on packaging and assembly machines.

Reading the code against the how-to-order page: SY5 is the series size, 1 is 2-position single, 20 is the fixed main-valve style, 5 is the 24 VDC coil, L is the L plug connector with 300 mm lead wires, Z is a light-and-surge-voltage-suppressor option, D is the push-turn locking slotted manual override and 01 is the 1/8 Rc thread for the A and B ports. With no bracket suffix, the valve is supplied without a foot or side bracket; the catalogue notes that mounting bolts and the gasket for a manifold are not attached to a single unit ordered this way.

Technical specifications

Choosing the electrical and port options

The L plug connector gives a short lead with a plug-in coil, which is faster to replace than a grommet lead; the catalogue also lists grommet (G, H), M plug, DIN terminal and M8 connector styles, and the enclosure is dustproof, with the DIN terminal and M8 connector styles rated IP65 (based on IEC 529 as printed). The Z option adds an LED indicator and a surge suppressor, which protects PLC outputs from coil switching voltage.

The same valve is available with one-touch fittings for 4, 6 or 8 mm tube (C4, C6, C8) in place of the 1/8 thread, and with G, NPT or NPTF thread letters; the catalogue shows flow values for each. The 1/8 Rc port suits a standard pneumatic installation with threaded fittings.

Selection notes for machine builders

A 5-port single valve controls a spring-return setup: when the coil is de-energised the main valve returns, so the cylinder moves to a known position on power loss. For cylinders that must hold position on a loss of power, a 3-position closed-centre version (type 3 in the catalogue) is the other option. Match the valve flow to the cylinder: the effective flow figures above give a simple basis for estimating cylinder speed with the catalogue method.

SMC lists a power-saving circuit option (24 and 12 VDC only) that reduces holding power to 0.1 W with indicator light, selected with the coil-type letter T, which is not part of this code. Always use filtered, dry air and a cylinder speed controller to avoid slamming.

Documents and quotation

The SMC catalogue PDF linked at the end of this page contains the how-to-order page, specifications, flow characteristics and dimensions. Please confirm coil voltage, connector, manual override, port size and any bracket before ordering. More valves are under Solenoid Valves. Seven Star LLC is an independent supplier and quotes the exact code on request.

How the SY5120-5LZD-01 Works

The SY5120-5LZD-01 is an internally piloted valve. When 24 VDC is applied, a small pilot solenoid opens and feeds supply air from port 1 (P) to the end of the main spool. The spool shifts so that port 1 supplies port 4 (A), while port 2 (B) exhausts through port 3. When the coil is de-energised, the pilot exhausts and the return spring pushes the spool back, so port 1 supplies port 2 and port 4 exhausts through port 5. Because the pilot uses line air, the valve needs at least 0.15 MPa at port 1 to shift reliably. For vacuum or very low-pressure duty, SMC offers external pilot versions.

The Z suffix combines an LED indicator with a surge voltage suppressor. The LED lets technicians confirm that the PLC output is reaching the coil, and the suppressor limits the back-EMF spike when the coil is switched off. In SMC’s SY3000/5000/7000 specifications, the surge suppressor is a diode (a varistor on non-polar types).

Series data from SMC’s SY3000/5000/7000 valve specifications

Note the narrower allowable voltage fluctuation for S and Z types (−7% to +10% at 24 VDC). The internal circuit drops a little voltage, so long cable runs from a weak 24 V supply should be checked.

SY5120-5LZD-01 Ordering Code at a Glance

• SY5 – SY5000 body size
• 1 – 2-position single solenoid, spring return
• 20 – body-ported single unit
• 5 – 24 VDC
• L – L plug connector with lead wire
• Z – with indicator light and surge voltage suppressor
• D – push-turn locking slotted manual override
• 01 – Rc 1/8 cylinder ports

When replacing an installed valve, read the full code from the label rather than the series name alone. A different connector letter, voltage or thread will not fit the existing wiring or fittings.

Installation & Maintenance

• Blow out piping before connecting it, and wrap sealing tape so that it does not enter the valve.
• Fit silencers on the exhaust ports in occupied areas, and keep exhaust ports unobstructed.
• Use the manual override only after confirming that cylinder movement is safe. The D type locks when it is pushed and turned, so return it to its off position after testing.
• Supply filtered, dry air. Lubrication is not required, but once oil has been introduced it should be continued.

Typical Applications in Oman & the GCC

The SY5120-5LZD-01 is a common choice for stand-alone cylinders on packaging lines, bottling and food plants, conveyors, gates and dampers, and on OEM machinery across Oman and the wider GCC. Where ambient heat and dust are high, good air preparation upstream extends spool and seal life.
