Brand: Safety Jogger

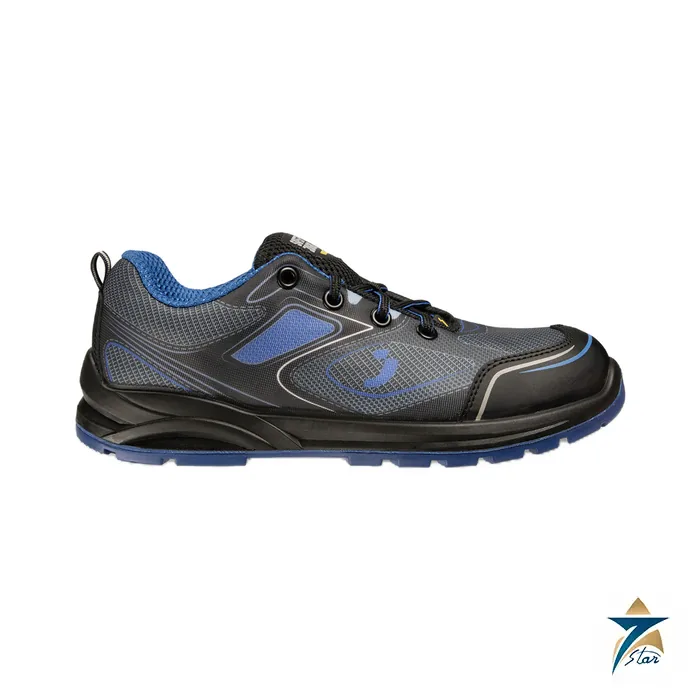

Safety Jogger Cador S1P ESD Safety Shoes
Description
A light ESD safety shoe for dry electronics and assembly work
Safety Jogger Cador S1P is an ESD safety shoe with a steel toecap, an antipenetration sole, slip resistance and ESD protection, offering comfort, style and value for light work according to the sheet. It is among the lightest in this lane at 0.576 kg for the tested sample.
The upper is mesh over a 3D-mesh lining, with a steel midsole, PU/PU outsole and an SJ recycled foam footbed. The category is S1 P with SR, FO and ESD, to EN ISO 20345:2022 and ASTM F2413:2018. Industries listed are automotive, construction, food and beverages, logistics and industry, and the environment is dry. Sizes run from EU 35 to 48.
Key features
- Steel toecap and steel midsole (S1P)
- ESD shoe, volume resistance between 100 kOhm and 100 MOhm
- Breathable mesh upper with 3D-mesh lining
- Slip resistant PU/PU outsole tested for SRA and SRB
- Oil and fuel resistant outsole (FO)
- Removable antistatic SJ foam footbed (96% recycled)
- Heel energy absorption
- Six colourways are listed on the sheet and page (BLU, GRN, LGR, PNK, RED, YEL)
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Cador S1P (ref 011213 in blue) |
| Category | S1 P / SR, FO, ESD |
| Standards printed | EN ISO 20345:2022; ASTM F2413:2018 |
| Upper | Mesh |
| Lining | 3D-mesh |
| Footbed | SJ recycled foam footbed (96% recycled) |
| Midsole | Steel |
| Outsole | PU / PU |
| Toecap | Steel |
| Weight (sample) | 0.576 kg |
| Size range | EU 35-48 / UK 3.0-13.0 / US 3.0-13.5 |
| Weight class on sheet | Light |
| Industries | Automotive, construction, food and beverages, logistics, industry |
| Environment | Dry |
Selected laboratory results printed on the sheet
| Laboratory test | Result (requirement) |
|---|---|
| Upper water vapour permeability | 3.9 mg/cm2/h (min 0.8) |
| Outsole abrasion, volume loss | 59 mm3 (max 150) |
| SRA slip friction, heel and flat | 0.30 and 0.39 (min 0.28 and 0.32) |
| SRB slip friction, heel and flat | 0.15 and 0.24 (min 0.13 and 0.18) |
| Antistatic value | not applicable |
| ESD value | 73 MOhm (window 0.1-100) |
| Heel energy absorption | 24 J (min 20) |
| Toecap impact clearance at 200 J | 15.0 mm (min 14) |
| Toecap compression clearance at 15 kN | 19.0 mm (min 14) |
What ESD protection adds
ESD footwear controls the discharge of electrostatic energy that can damage electronic components and avoids ignition risks from electrostatic charges. The sheet gives the volume resistance window as 100 kOhm to 100 MOhm and the measured value for the Cador as 73 MOhm. The antistatic value is listed as not applicable, because the ESD range is tighter.
The slip resistance results are shown for the SRA and SRB tests (SRC when both pass). The SRB heel value of 0.15 is close to the minimum of 0.13, so take care on oily floors. Choose it for dry work, as the sheet says S1P is for environments with no water or liquid sprays. The ESD result is for new shoes; the discharge window must be rechecked with your own ESD procedures.
Using ESD footwear properly
An ESD shoe works only when the wearer and the floor are part of the system. Check the shoe with a tester at the intervals your ESD programme specifies, and do not use an aftermarket insole that is not antistatic.
Safety Jogger describes its slip resistant soles as passing both the SRA and SRB tests on ceramic and steel surfaces, and its steel midsoles as made from stainless or coated steel. Clean the mesh regularly and do not dry it on a radiator. Dirt, wax and oil layers on the outsole or the floor increase resistance and cancel the benefit.
Electronics, assembly and logistics
Typical users are assembly operators, electrical panel builders, warehouse staff and technicians working in control rooms and workshops with ESD floors. The sheet lists automotive, construction, food and beverages, logistics and industry. Its light weight and bright colour choices suit workers who wear the shoe for a full shift.
Selection and care notes
ESD footwear works as part of an earthing system that includes the floor and the user, so check the site requirement for resistance and have the shoes tested at the interval set by the site. Keep the soles clean, because dirt or coatings can change the resistance, and replace the shoe when the sole is worn or the electrical value is out of range.
Information needed for a quotation
Send the full product code, the size range, the quantity in pairs, the delivery location in Oman or the GCC and the hazards the item must cover, so that the complete supply can be quoted together.
Documents and supply information
The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Standards, performance levels and sizes are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and construction projects.
Related items and documents
If you do not need ESD, the Gobi S1P is a similar steel-toe S1P shoe; for a mid-cut ESD S3 option see the Cador S3 Mid. More PPE is under Safety & PPE. The product sheet is attached as a PDF. Send size and colour to Seven Star LLC, an independent supplier in Muscat.
Frequently asked questions
Is Cador S1P an ESD shoe?
Yes. The category lists ESD and the measured ESD value is 73 MOhm within the 0.1 to 100 MOhm range.
Is it suitable for wet floors?
No. S1P is for dry environments with no risk of water or liquid sprays.
What is the toecap?
Steel, with an antipenetration steel midsole.
How much does it weigh?
0.576 kg for the tested sample.
What sizes does it come in?
EU 35 to 48.
Datasheets & Documents
- Datasheet Safety Jogger Cador S1P product sheet (EN, colour BLU) Download
Reviews (0)
About brand
Safety Jogger is a Belgian personal protective equipment brand whose safety shoes and boots are tested to EN ISO 20345 and, on many models, to ASTM F2413. Each model has a product sheet that prints the materials, the category marks and measured results such as slip friction, heel energy and toecap clearance.
Seven Star LLC lists Safety Jogger shoes and boots for industrial sites and supplies them to contractors and plant owners in Oman against the exact model name and size.
Safety Jogger models on this page
The models range from the S1P Gobi, Desert and ESD Cador shoes, through the S3 Bestrun2, Dakar EW, Cador S3 Mid and Labor with its HRO rubber outsole, to the metal-free Flux S3S Mid and the waterproof S7S Caldera and Gora boots.
Where Safety Jogger footwear is used
Construction sites, workshops, warehouses, kitchens, chemical plants, mines and oil and gas locations are listed in the product sheets, with environments from dry floors to mud, hot surfaces and extremely slippery ground.
Ordering Safety Jogger footwear: what we need
Send the model name, the colour and the EU size, and tell us the protection marks you need, such as ESD, HRO or metal-free. Models are named rather than coded, so the exact name matters.
