Brand: VEGA

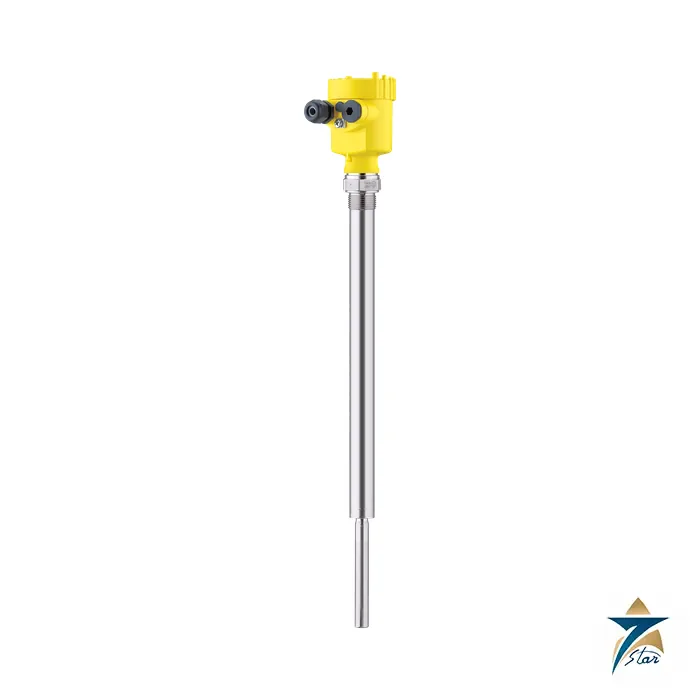

VEGA VEGAVIB 63 Vibrating Rod Level Switch with Tube Extension
Description
A rigid extension tube that puts the switching point where you need it
The VEGAVIB 63 mounts the vibrating rod on a rigid tube extension of 0.3 to 6 m, so the limit point can be set deep inside the vessel from a nozzle in the top or side. It is stated for granular and coarse-grained bulk solids, with the same smooth rod, stainless steel 316L wetted parts, 16 bar pressure rating and -50 to +250 °C temperature range as the compact VEGAVIB 61. VEGA says the position of the switching point is determined by the tube extension, and that no medium is needed for setup. The sheet covers the transistor (NPN/PNP) version with 10…55 V DC and 0.5 W maximum power.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | VEGAVIB 63, vibrating rod level switch with tube extension |
| Tube length (product information) | 0.3…6 m (0.984…19.69 ft) |
| Process pressure | -1…+16 bar (-100…+1600 kPa) |
| Process temperature | -50…+250 °C with temperature adapter (-50…+150 °C standard) |
| Density | > 0.02 g/cm³ |
| Process fitting | Threads from G1, 1 NPT; flanges from DN 32 / 1½”; hygienic fittings |
| Operating voltage (transistor sheet) | 10…55 V DC; max. 0.5 W |
| Switching delay | 0.5 s covered, 1 s uncovered |
| Hysteresis | Approx. 2 mm |
| SIL qualification | Optionally up to SIL2 |
| Materials | 316L wetted parts; Klingersil C-4400 seal |
| Housing | Plastic, stainless steel or aluminium housing, up to IP67 |
Lock fitting and lateral loads
A tube version can be mounted with a lock fitting for infinitely variable height adjustment, which VEGA describes in the accessories chapter with the reminder to take note of the pressure specification and that the lock fitting must not be used with coated versions. In silos the bulk material produces lateral forces on the tube during filling and emptying, which is why long tubes should be kept out of the filling stream and sized with the mechanical stress in mind. The product information gives a protective cover and plug connectors as options.
Specification pointers
Specify tube length, thread or flange, temperature adapter requirement, electronics (transistor, relay, two-wire, NAMUR or contactless switch), and plug or cable gland. Ex approvals are listed by VEGA as available for the family and must be confirmed for your configuration. Compare the VEGAVIB 61 for a short compact switch and the VEGAVIB 62 for a cable-suspended switch up to 80 m when the tube length does not suit.
A tube extension suits vessels where product flow is gentle and the nozzle is on the top, for example a bin where the high-level point lies 2 or 3 metres below the roof. The sheet shows the same hysteresis of approximately 2 mm and switching delays of 0.5 s (covered) and 1 s (uncovered) as the other VEGAVIB versions, so alarm logic can be standardised across a whole silo farm, with just the tube length varying from one bin to another.
Documents and quotation
The official VEGA VEGAVIB 63 (transistor NPN/PNP) specification sheet (34642-EN, version 151205) is attached to this page for download and covers the technical data, dimensions and wiring summarised above.
Share the application details with our sales desk in Muscat and we will match them to the right variant and prepare a quote. Seven Star LLC supplies these instruments as an independent company, not as the manufacturer’s agent; see our level instrumentation category for related products. Please confirm approvals, cable length and fitting against the manufacturer’s data before ordering.
Datasheets & Documents
- Datasheet VEGA VEGAVIB 63 Specification Sheet (34642-EN) Download
Reviews (0)
About brand
VEGA is a German maker of level and pressure instruments. Bruno Grieshaber founded the company in 1959 in Triberg in the Black Forest, and it has been based in Schiltach since 1975, still family owned as VEGA Grieshaber KG. VEGA is best known for radar level sensors: it introduced the first two-wire radar level sensor in 1997 and the first 80 GHz radar sensor for bulk solids, the VEGAPULS 69, in 2015.
Seven Star LLC is an independent supplier listing VEGA radar and guided wave radar transmitters, point level switches, pressure transmitters and signal conditioning instruments for buyers in Oman and the GCC. Sensors are matched from the product code on the type label.
VEGA at a glance
| Origin | Founded by Bruno Grieshaber in 1959 in Triberg, Germany |
|---|---|
| Headquarters | Schiltach, Black Forest, Germany (since 1975) |
| Ownership | Family-owned company: VEGA Grieshaber KG |
| Milestones | First two-wire radar level sensor (1997), first 80 GHz radar for bulk solids, VEGAPULS 69 (2015), VEGAPULS 6X single radar platform for liquids and solids |
| Product families | VEGAPULS radar, VEGAFLEX guided wave radar, VEGASWING and VEGAPOINT switches, VEGACAL capacitive probes, VEGABAR and VEGADIF pressure, VEGAMET and VEGADIS signal conditioning |
VEGA sensor and instrument series
| Series | Type | Typical use |
|---|---|---|
| VEGAPULS 6X, VEGAPULS 69, VEGAPULS 64 | Process radar level transmitters (80 GHz) | Storage and process tanks, reactors with agitators, silos and bulk solids |
| VEGAPULS 11, 21, 31, 42 | Compact radar sensors | Water and wastewater, simple storage tanks; VEGAPULS 42 with IO-Link for machine integration |
| VEGAPULS C 21, C 11, C 22, C 23 | Radar sensors with fixed cable, IP68 | Wet wells, pumping stations, open channels and river levels |
| VEGAFLEX 81, 82, 83, 86 | Guided wave radar (TDR) | Level and interface in liquids, bulk solids, hygienic and high-temperature or high-pressure service (VEGAFLEX 86) |
| VEGASWING 61, 63, VEGAPOINT 21 | Vibrating and capacitive point level switches | Overfill protection, dry-run protection and high or low level alarms |
| VEGACAL 62 to VEGACAL 67 | Capacitive rod and cable probes | Point and continuous level in solids and conductive or adhesive liquids |
| VEGABAR 82, 83, 28, 29, 38 | Pressure transmitters, ceramic or metallic cell | Process pressure and hydrostatic level; compact 18/19 and 28/29/38 versions for utilities |
| VEGADIF 85 | Differential pressure transmitter | DP flow, filter monitoring and level in pressurised vessels |
| VEGAMET 841, VEGADIS 176 | Controller and loop display | Level display, pump control and remote indication of 4-20 mA signals |
Where VEGA instruments are used
VEGA radar sensors measure level in crude oil and product tanks, separators, chemical reactors, cement and aggregate silos, grain stores and water reservoirs. Compact cable radars are widely used in wastewater pumping stations and flood monitoring. Because 80 GHz radar focuses a narrow beam, it can measure past internal structures in a tank, and it is not affected by the temperature, pressure or vapour above the product, which suits hot Gulf storage tanks.
Ordering VEGA instruments: what we need
The product code on the type label (for example PS64.XXXXXXX) fixes the measuring range, antenna or probe, process connection, electronics and approvals. Send it with the serial number. For a new measurement add the medium and its dielectric constant if known, tank or silo height and internals, process pressure and temperature, process connection, output (4-20 mA HART, PROFIBUS PA, Modbus or IO-Link), and any hazardous-area or overfill protection approval required.
Facts checked against VEGA company and product information, October 2026.
Browse VEGA products by category: Level Transmitter, Pressure Instrumentation, Controllers and Data Acquisition.
Related products
Frequently Asked Questions
How long is the tube extension?
0.3 to 6 m according to the product information.
What material is used?
316L stainless steel wetted parts with a Klingersil C-4400 seal.
What temperature can it take?
-50…+250 °C with a temperature adapter.
What is the minimum density?
Above 0.02 g/cm³.
Can the height be adjusted?
A lock fitting allows stepless height adjustment of tube versions within its pressure limits.
