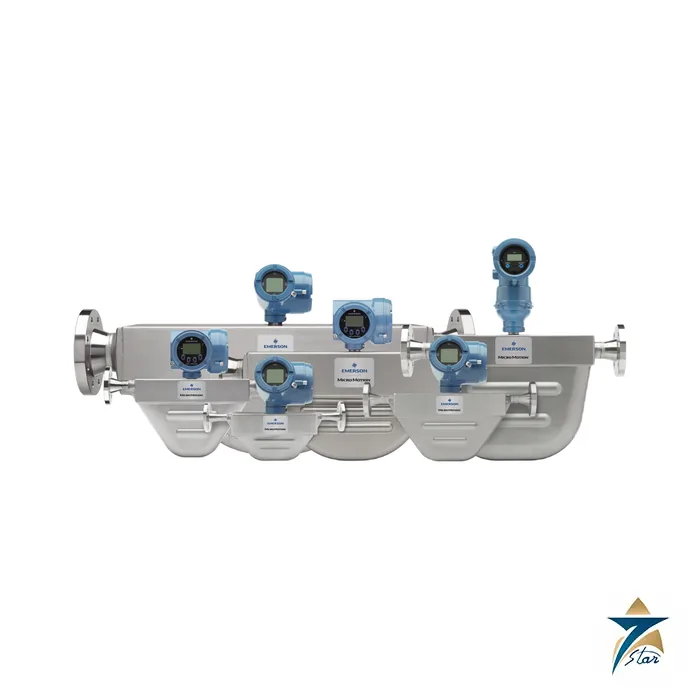

Micro Motion F-Series Coriolis Flow and Density Meters
Description
Compact, drainable Coriolis meters for critical process control
The Micro Motion F-Series is a family of Coriolis flow and density meters built around a compact, self-draining dual-tube sensor. It measures mass flow, volume flow, density and temperature in one device, with no moving parts to wear. The datasheet quotes up to ±0.05 percent liquid mass flow accuracy and up to ±0.5 kg/m3 liquid density accuracy for the premium calibration, and the line sizes suit batching, distribution, allocation and intra-plant measurement. Wetted parts are 316L stainless steel or nickel alloy C22.
Technical specifications
| Parameter | Specification |
|---|---|
| Datasheet | PS-00603, Rev AK, August 2023 |
| Sensor models | F025, F050, F100, F150, F200, F300, F400 (0.25 in DN6 to 4 in DN100) |
| Model suffix (wetted material) | S 316L stainless steel; H nickel alloy C22; P high pressure; A high-temperature 316L; B high-temperature C22 |
| Liquid mass and volume flow accuracy | ±0.05% premium, ±0.1% enhanced, ±0.15% intermediate, ±0.2% basic (not all options on all models) |
| Liquid repeatability | 0.025% / 0.05% / 0.075% / 0.10% by accuracy level |
| Liquid density accuracy | ±0.5 kg/m3 premium, ±1 kg/m3 enhanced, ±2 kg/m3 intermediate and basic; density range up to 3,000 kg/m3 |
| Gas mass flow accuracy | ±0.35% of rate (F050S/H to F400S); ±0.5% of rate (F025, high-temperature and high-pressure models) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Maximum flow rate | F025 2,720 kg/h; F050S/H 8,160; F100S/H 32,700; F150S 54,431; F200 87,100; F300 238,000; F400 436,000 kg/h |
| Maximum working pressure | 1,450 psig (100 barg) for S and A; 2,160 psig (149 barg) for H and B; F025P 2,320 psig (160 barg); F050P 5,800 psig (400 barg) |
| Process temperature | Standard models to 400 °F (204 °C); high-temperature models to 662 °F (350 °C) per the temperature graphs |
| Electronics ambient limit | -40 °F to 140 °F (-40 °C to 60 °C); remote mounting where outside the range |
| Hazardous area and enclosure | CSA and CSA C-US Class I Div. 1 and 2; ATEX Ex ib and Ex nA; IECEx; NEPSI; IP66/67 |
| Other standards | PED 2014/68/EU, CRN, NAMUR NE132, SIL2/SIL3; MID OIML R117, NTEP, Measurement Canada, INMETRO for custody transfer (some models) |
| Manufacturer warranty | 18 months as standard per the datasheet |
Choosing a size, transmitter and options
Size the meter on flow and allowable pressure drop rather than on line size alone. The datasheet defines nominal flow as the water flow that causes about 1 barg of pressure drop, and gas duty should always be sized with the manufacturer tool because pressure drop depends on pressure, temperature and composition. F-Series sensors pair with the 5700, 4200, 1700/2700, 1500/2500, 1600, 3500/3700 and FMT transmitters in integral, remote, wall-mount or DIN-rail forms. Process connections include ASME B16.5 flanges to CL900/1500, EN 1092-1 and DIN flanges, JIS flanges, Tri-Clamp compatible and DIN 11851 hygienic fittings and VCO or VCR fittings, depending on the model. Two-phase flow affects every Coriolis meter; the F150 runs at a high drive frequency above 300 Hz and the other sizes in the mid range of 150 to 300 Hz, so confirm entrained gas conditions with the manufacturer. See also the higher-accuracy Micro Motion ELITE CMF series and the Micro Motion 5700 transmitter.
What to confirm before ordering
- Fluid, density, viscosity, flow range, pressure and temperature, and any entrained gas
- Wetted material (S, H, P, A or B) and process connection code with rating and facing
- Transmitter model, mounting and output or protocol, plus hazardous area approval
- Custody transfer or marine approval, because not every model carries every listing
- JIS-flanged sensors do not comply with ASME B31.1 power piping, as stated in the datasheet
How the Micro Motion F-Series works
The fluid flows through two vibrating tubes. The mass of the fluid changes how the tubes twist. The sensor measures that twist and calculates the mass flow. The tube frequency gives the density and a sensor on the tube gives the temperature.
Where the Micro Motion F-Series is used
- Batching
- Distribution
- Allocation
- Intra-plant measurement
- Critical process control
Selection checklist for the Micro Motion F-Series
- Sensor size
- Wetted material
- Flow rate range
- Working pressure
- Process temperature
- Liquid or gas service
- Electronics mounting
- Output and approvals needed
Installation, commissioning and maintenance notes for the Micro Motion F-Series
Mount the sensor so that it drains and stays full of liquid. Support the pipework so that it does not strain the sensor. Connect the transmitter and run the zero procedure with the line full and the flow stopped. Check the zero at regular visits.
Requesting a quotation for the Micro Motion F-Series
Please send the sensor model, the fluid and the transmitter you need. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
Micro Motion F-Series meter type
It is a Coriolis flow and density meter.
Micro Motion F-Series sensor design
The sensor is a compact, self-draining dual-tube design.
Micro Motion F-Series measurements
It measures mass flow, volume flow, density and temperature.
Micro Motion F-Series moving parts
There are no moving parts to wear.
Micro Motion F-Series sensor models
The models are F025, F050, F100, F150, F200, F300 and F400.
Micro Motion F-Series line sizes
Sizes run from 0.25 in (DN6) to 4 in (DN100).
Micro Motion F-Series wetted material
Wetted parts are 316L stainless steel or nickel alloy C22.
Micro Motion F-Series high pressure
High pressure models carry the suffix P.
Micro Motion F-Series high temperature
High temperature models carry the suffix A or B.
Micro Motion F-Series density range
The density range is up to 3,000 kg/m3.
Micro Motion F-Series flow capacity
F025 reaches 2,720 kg/h and F400 reaches 436,000 kg/h.
Micro Motion F-Series working pressure
The standard models are rated to 100 barg.
Micro Motion F-Series process temperature
Standard models reach 204 degrees C and high temperature models reach 350 degrees C.
Micro Motion F-Series electronics limit
The electronics ambient range is minus 40 to plus 60 degrees C.
Micro Motion F-Series remote mounting
Remote mounting is used outside that ambient range.
Meter records for the Micro Motion F-Series
Record the model, the zero value and the density check.
Choosing the right Micro Motion F-Series size
Choose the size from the flow range and the allowed pressure drop.
Documents and quotation
The Micro Motion F-Series datasheet (PS-00603 Rev AK, August 2023) is available from the product documents on this page. Seven Star LLC is an independent supplier in Muscat; send the complete order code from the nameplate or your specification and we will check it against the manufacturer documentation before quoting. Browse more flowmeters in the catalogue.
