Brand: Flender

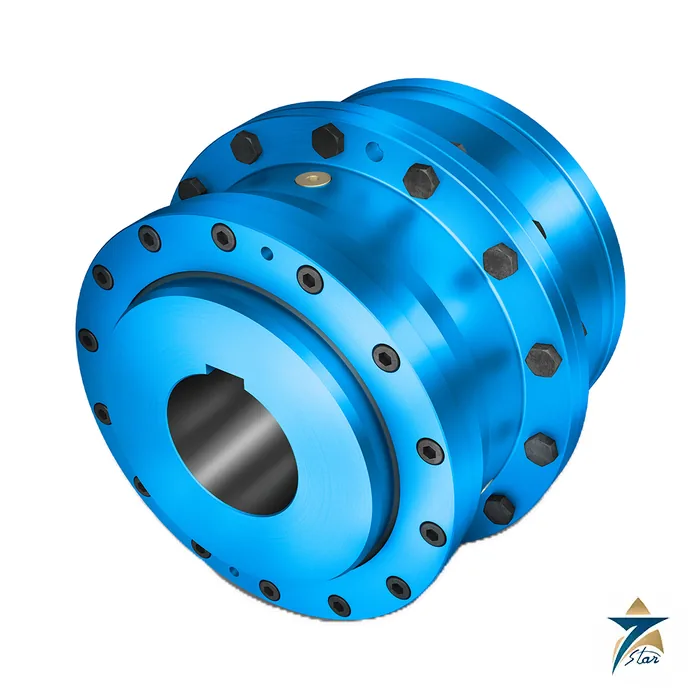

Flender ZAPEX ZW Gear Coupling
Description
A double-jointed gear coupling for high torque, sizes 112 to 1540
The Flender ZAPEX ZW gear coupling is a universally applicable torsionally rigid gear coupling built for high torques and harsh conditions. Flender’s instructions M3500-01 (edition 09/2022) cover the types ZWN, ZWNA, ZWD, ZWDA, ZZS, ZZSA, ZZSD, ZZDA, ZWNV and ZZSV.
Two hubs with external teeth engage in flanged sleeves with internal teeth, bolted together with fitting bolts and, on spacer types, a spacer. The teeth are lubricated with oil or grease; DUO sealing rings keep the lubricant in on the ZWN, ZZS and vertical types, while the ZWD, ZWDA, ZZSD and ZZDA types are made for oil flow lubrication without sealing rings. Types with the A suffix limit axial backlash with a two-part retaining ring.
Technical specifications
| Parameter | Specification |
|---|---|
| Types | ZWN, ZWNA, ZWD, ZWDA, ZZS, ZZSA, ZZSD, ZZDA, ZWNV (vertical), ZZSV (vertical) |
| Document | M3500-01en, edition 09/2022 |
| Size range | 112 to 1540 |
| Size 112 | Rated torque 1,300 Nm; n max 9,400 rpm; 5.8 kg |
| Size 175 | Rated torque 7,000 Nm; n max 6,400 rpm; 19 kg |
| Size 290 | Rated torque 39,000 Nm; n max 3,700 rpm; 72 kg |
| Size 505 | Rated torque 250,000 Nm; n max 2,000 rpm; 380 kg |
| Size 852 | Rated torque 1,200,000 Nm; n max 1,150 rpm; 1,750 kg |
| Size 1540 | Rated torque 7,200,000 Nm; n max 630 rpm; 8,800 kg |
| Angular misalignment | Up to 1 degree per coupling for standard types; up to 0.2 degree for the A types with axial backlash limitation |
| Lubrication | Mineral oil ISO VG 460 (-10 to +30 C) or VG 680 (+10 to +80 C); or grease NLGI 00 or 0 (-10 to +80 C) |
| DUO sealing rings | 79NBR716 blue, -20 to +80 C; 85NBR891 black, -45 to +80 C; Viton, -20 to +150 C (not approved for explosive atmospheres) |
| ATEX marking | II 2G Ex h IIC T6…T5 Gb X; II 2D Ex h IIIC T85 C…100 C Db X; I M2 Ex h Mb X |
| Temperature classes | -45 to +80 C T4; to +60 C T5; to +45 C T6 |
Alignment and lubrication
Alignment is checked against the angular limit DeltaS no greater than ND x tan 1 degree (about ND divided by 60) for the standard types, or ND divided by 300 for the A types, and radial offset is judged against the tooth distance VA. Lubricants must be suitable for explosive atmospheres when applicable, and Flender refers to its approved lubricant lists. The manual also covers sealing the parallel keyways with liquid plastic and the mounting of the thrust and support elements for the vertical types.
Ordering notes
State the type, size, both bores and keyways, power and speed, mounting position (horizontal or vertical), lubrication method and ATEX requirement. The ZAPEX ZW is a different line from the N-ZAPEX XW and XN series on this site; couplings are grouped in Electric Motors, and a gear unit that is often paired is the Flender ONE.
Documents and quotation
The Flender document is attached. Seven Star LLC supplies Flender couplings on request and quotes against the exact type, size and bore. The attached manual contains the dimension table for all sizes, spare parts lists and the EU declaration of conformity.
Datasheets & Documents
- Datasheet Flender ZAPEX assembly and operating instructions M3500-01en (09/2022) Download
Reviews (0)
About brand
Large industrial gearboxes are the product most engineers associate with Flender, a company founded in 1899 and based in Bocholt, Germany, that builds gear units, couplings and drive systems. Seven Star LLC sources and supplies Flender gear units and their spare parts for mills, conveyors, pumps and marine drives in Oman, working from the nameplate data. On some nameplates the name appears as Siemens Flender.
Flender gearbox types listed here
Four items are listed. Flender ONE is the manufacturer's redesigned single-stage helical gear unit. The H2SV 09 is a two-stage helical gear unit of size 09 with a solid output shaft, shown here with a cooling coil and oil tank. The NAVILUS line covers marine gearboxes, listed in a multiple-input, single-output arrangement that brings several engines onto one propeller shaft, and in a version for dredgers. Flender couplings such as the flexible N-EUPEX type are often ordered with a gear unit.
Ordering a Flender gearbox or parts: what we need
Send a photo of the nameplate showing type, size, serial or order number, ratio, power and speeds. For spares, the serial number lets the parts list be traced, so add the item number of the bearing, seal or gear set you need. For a new unit, give the driven machine, motor power and speed, output speed, mounting position, shaft arrangement, ambient temperature and cooling method. Marine and dredger gearboxes for GCC yards also need the class society.
Browse Flender products by category: Electromotors, Electric Motors & Pumps.
Related products
Frequently Asked Questions
Which types does the manual cover?
ZWN, ZWNA, ZWD, ZWDA, ZZS, ZZSA, ZZSD, ZZDA, ZWNV and ZZSV.
What torque range do the sizes cover?
Rated torque from 1,300 Nm (size 112) to 7,200,000 Nm (size 1540).
What misalignment is allowed?
Up to 1 degree for standard types and 0.2 degree for the A types with axial backlash limitation.
How is it lubricated?
With mineral oil ISO VG 460 or 680, or NLGI 00 or 0 grease; the D types are for oil flow lubrication.
Is it ATEX marked?
Yes, with II 2G Ex h IIC T6 to T5 Gb X, II 2D Ex h IIIC and I M2 marking given in the manual.
