Brand: SICK

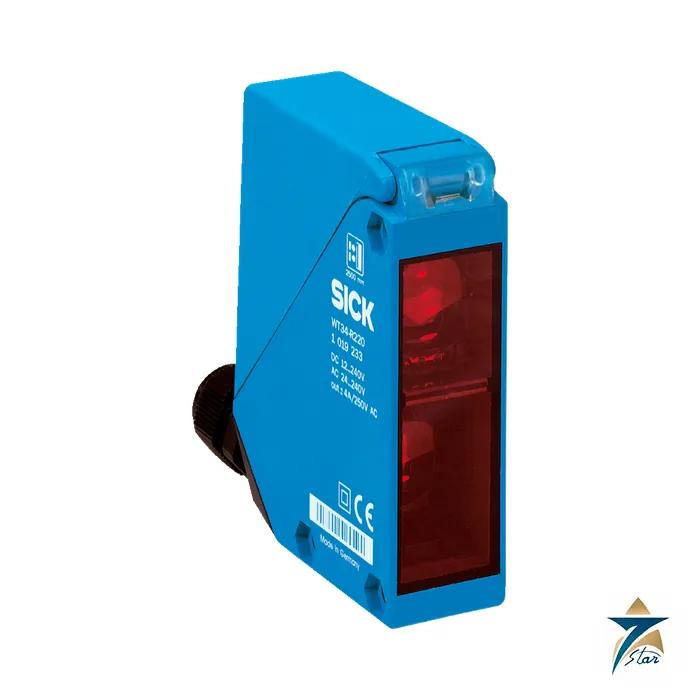

SICK WT34-B410 Proximity Sensor
Description
The WT34-B410 (SICK part no. 1019229) detects objects against a cluttered background. It belongs to the W34 photoelectric family and uses background suppression, so the cut-off distance, not the brightness of the background, decides whether it switches. The data sheet gives a maximum sensing range of 100 mm … 2,500 mm. The switching output is NPN, PNP with light switching, Dark switching, the supply is 10 V DC … 30 V DC and the connection is Male connector M12, 4-pin.
Background suppression on the W34 housing
Background suppression is a triangulation method: the receiver sees the returning light spot at a position that depends on object distance, and only spots inside the cut-off set at the adjuster switch the output. Mount the sensor so the product passes across the optical axis instead of approaching it head-on, otherwise the target crosses the cut-off line slowly and the output may switch late.
The optics use a LED emitting infrared light with a spot of Ø 80 mm (2,500 mm). Setting is made by potentiometer. Response time is ≤ 500 µs at 1,000 Hz switching frequency.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | WT34-B410 |
| Part number | 1019229 |
| EAN | 4047084106170 |
| Product family | W34 |
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 27 mm x 92 mm x 70 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 100 mm … 2,500 mm |
| Sensing range | 100 mm … 2,500 mm |
| Type of light | Infrared light |
| Light source | LED |
| Light spot size (distance) | Ø 80 mm (2,500 mm) |
| Adjustment | Potentiometer |
| Supply voltage UB | 10 V DC … 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 50 mA |
| Switching output | NPN, PNP |
| Switching mode | Light switching, Dark switching |
| Switching mode selector | Selectable via PNP/NPN selector, selectable via light/dark selector |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 500 µs |
| Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A ; C ; D |
| Protection class | II |
| Weight | 140 g |
| Housing material | Plastic, ABS |
| Enclosure rating | IP67 |
| Test input sender off | TE to 0 V |
| Ambient operating temperature | –40 °C … +60 °C |
| Ambient temperature, storage | –40 °C … +75 °C |
| MTTFD | 790 years |
| DCavg | 0 % |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; Moroccan declaration of conformity; China RoHS; China Compulsory Product Certification (CCC) exempt; cULus certificate; Photobiological safety (DIN EN 62471) certificate |
Type code WT34-B410 and part number 1019229
Ordering by type code alone risks receiving a neighbour from the WT34 family. We therefore work from the part number 1019229 and confirm it against the data sheet; the code WT34-B410 is kept on the page for recognition.
Mounting, wiring and set-up notes for WT34-B410
Electrical supply: 10 V DC … 30 V DC. Environmental limits: IP67 and –40 °C … +60 °C ambient in operation. The body measures 27 mm x 92 mm x 70 mm and weighs 140 g. Current draw is 50 mA. Shield the sensor from direct strong light where the data sheet lists a limit for ambient light, and avoid pointing it at bright windows.
Documents and quotation
This page carries a copy of the SICK data sheet for WT34-B410 (part no. 1019229), so the dimensional drawing and the electrical data are one click away. Use the RFQ form with the part number, quantity and delivery point; we reply with a quotation and the delivery information we can confirm. Related items are listed under Sensors & Transmitters. Please check the electrical output, the connector and the measuring or switching range against the old device before you order. Where this page and the data sheet disagree, follow the data sheet.
Datasheets & Documents
- Data Sheet SICK WT34-B410 official data sheet (part no. 1019229) Download
Reviews (0)
About brand
Machine builders have relied on SICK since 1946 for the sensors that tell a controller where a part, a pallet or a person is. The company, based in Waldkirch, Germany, makes photoelectric, inductive and magnetic sensors, distance sensors and safety devices. Seven Star LLC supplies SICK sensors to maintenance teams and integrators in Oman, mostly as exact replacements identified by type code and part number.
SICK sensor families on this page
Five of the SICK families listed here are described below. The W4 miniature photoelectric sensors include the WTB4-3, a proximity sensor with background suppression. IME is the standard inductive proximity line, and the IME18 is the M18 housing size. RZT7 cylinder sensors fit T-slot pneumatic cylinders and detect the piston magnet. The DT35 belongs to the Dx35 laser distance sensors for mid-range measurement. The microScan3 is a safety laser scanner that guards hazardous zones around machines and vehicles.
Where SICK sensors are used
SICK sensors are fitted on packaging and bottling lines, conveyors, palletizers, warehouse cranes and automated guided vehicles. Safety laser scanners protect robot cells and transfer cars. In process plants, the same proximity and cylinder sensors report valve and damper positions on packaged equipment.
Ordering SICK sensors: what we need
A SICK type code such as IME18-08NPSZW2K packs the whole specification into one string: housing size, sensing range, flush or non-flush mounting, output type and connection. Each variant also has a 7-digit part number, and that number is the safest identifier. Please send:
- Type code and part number from the sensor label, or a photo of it
- Output type (PNP or NPN, normally open or closed) and connection (cable length or M8/M12 plug)
- For microScan3: variant (Core or Pro), interface, protective field range, plus system plug and bracket
We check the code in SICK's documentation and tell you if the manufacturer lists a successor.
Browse SICK products by category: Sensors & Transmitters.
Related products
Frequently Asked Questions
What is the sensing range of the WT34-B410?
The data sheet lists a maximum sensing range of 100 mm ... 2,500 mm and a sensing range of 100 mm ... 2,500 mm.
What output and connection does the WT34-B410 have?
Output: NPN, PNP, light switching, Dark switching. Connection: Male connector M12, 4-pin.
Which supply voltage does it need?
10 V DC ... 30 V DC with a current consumption of 50 mA.
How is the sensing distance set?
Potentiometer.
Which part number identifies this exact variant?
Part no. 1019229, type code WT34-B410. Variants with other connections or outputs have different part numbers.
