Brand: NSK

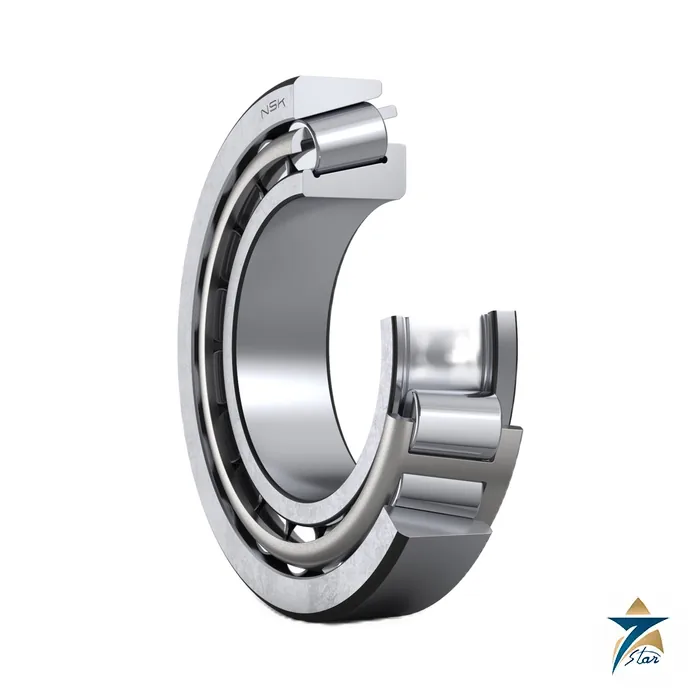

NSK HR30210J Tapered Roller Bearing
Description
A high-capacity tapered roller bearing with ISO interchangeable dimensions
The NSK HR30210J is a single-row metric tapered roller bearing with a 50 mm bore, 90 mm outside diameter and 21.75 mm width. The raceway cones of the inner and outer rings and the rollers share one apex on the shaft axis, so the bearing carries radial and one-directional axial load together. NSK marks its high load capacity series with HR, and the J suffix means the outer ring back-face diameter, outer ring width and contact angle follow ISO specifications. The catalogue states that, as a result, the inner ring assembly and outer ring of a J bearing are internationally interchangeable. Typical uses are gearbox shafts, pump drives, fan shafts and wheel and axle assemblies, always mounted in an opposed pair.
Technical specifications
| Parameter | Specification |
|---|---|
| Designation | HR30210J: HR = high load capacity series, 30210 = 02 series 50 mm bore normal contact angle, J = ISO-conforming outer ring dimensions |
| Bore d / outside D | 50 mm / 90 mm |
| Overall width T / inner B / outer C | 21.75 mm / 20 mm / 17 mm |
| Chamfer r / r1 (min.) | 1.5 mm / 1.5 mm |
| Basic dynamic load rating Cr | 94,000 N |
| Basic static load rating C0r | 91,500 N |
| Limiting speed, grease / oil | 4,000 rpm / 5,300 rpm |
| Load centre a | 19.6 mm |
| Constant e / axial factors Y1 / Y0 | 0.42 / 1.4 / 0.79 |
| Equivalent load | Dynamic P = Fr when Fa/Fr is at most e; otherwise P = 0.4 Fr + Y1 Fa; static P0 = 0.5 Fr + Y0 Fa |
| Mass (approx.) | 0.557 kg |
| Cage | Pressed steel (usual for tapered roller bearings) |
Size table for the NSK HR302 J series
Rows below are taken from the NSK single-row tapered roller bearing table. Limiting speeds are for grease and oil lubrication; e is the constant used to select the load factor.
| Designation | d mm | D mm | T mm | B mm | C mm | Cr N | C0r N | Grease rpm | Oil rpm | Load centre a mm | e | Mass kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HR30206J | 30 | 62 | 17.25 | 16 | 14 | 53,000 | 47,500 | 6,000 | 8,000 | 13.9 | 0.37 | 0.238 |
| HR30207J | 35 | 72 | 18.25 | 17 | 15 | 66,500 | 59,500 | 5,300 | 7,100 | 15.0 | 0.37 | 0.34 |
| HR30208J | 40 | 80 | 19.75 | 18 | 16 | 78,000 | 70,000 | 4,800 | 6,300 | 16.6 | 0.37 | 0.437 |
| HR30209J | 45 | 85 | 20.75 | 19 | 16 | 84,000 | 79,500 | 4,300 | 6,000 | 18.3 | 0.41 | 0.488 |
| HR30210J | 50 | 90 | 21.75 | 20 | 17 | 94,000 | 91,500 | 4,000 | 5,300 | 19.6 | 0.42 | 0.557 |
| HR30211J | 55 | 100 | 22.75 | 21 | 18 | 116,000 | 113,000 | 3,600 | 5,000 | 20.9 | 0.41 | 0.736 |
| HR30212J | 60 | 110 | 23.75 | 22 | 19 | 127,000 | 123,000 | 3,400 | 4,500 | 22.0 | 0.41 | 0.93 |
Arrangements and adjustment
Because a radial load creates an axial force component in a tapered roller bearing, two bearings must be used in opposition or in another multiple arrangement. NSK lists back-to-back and face-to-face pairs, for example HR30210JDB with spacers and HR30210JDF, in which the clearance is set with inner or outer ring spacers, and components with the same serial number and mating marks must stay together. Double-row and four-row designs are also available for heavier duty. Medium-angle and steep-angle bearings carry a C or D after the bore number; normal-angle bearings such as this one have no letter. The cage is usually pressed steel.
Setting the axial clearance or preload is part of fitting: too tight raises temperature, too loose reduces stiffness and life. For a tapered bearing from another maker see the Timken 32206 listed on this site; compare designations and any interchange with the catalogue of each manufacturer rather than assuming a match. More drive components are under Electric Motors, Pumps and Turbines.
Documents and ordering
Confirm whether you need a single bearing, a matched back-to-back or face-to-face pair, the spacer, preload or clearance setting, tolerance class, speed and loads. The attached PDF is a page extract from NSK catalogue Rolling Bearings for Industrial Machinery (Cat. No. E1103b) with the tapered roller design notes and the HR302 series tables. Seven Star LLC is an independent supplier in Muscat; availability is confirmed per enquiry.
Datasheets & Documents
- Catalog NSK Rolling Bearings for Industrial Machinery E1103b - extract: tapered roller bearings, HR302 series tables Download
Reviews (0)
About brand
NSK Ltd. was founded in 1916 and is headquartered in Tokyo, Japan. The company, originally Nippon Seiko, makes bearings, automotive components and precision machinery, and its bearing range runs from miniature ball bearings to large industrial roller bearings, plus super precision bearings for machine tools.
Seven Star LLC is an independent supplier in Muscat. We list NSK catalogue bearings for maintenance teams, workshops and machine builders in Oman and the GCC.
NSK product series
Ball bearings on this site include the 608 extra small and 6208DDU deep groove bearings, the 7208A single-row and 5206 double-row angular contact bearings, the 7304AWDT matched pair, the QJ210 four-point-contact bearing, the BL210 maximum-type bearing, the 51208 single-direction and 52208 double-direction thrust ball bearings and the 30TAC62C ball screw support bearing. Roller bearings include the HR30210J tapered roller bearing and the NU210EW cylindrical roller bearing.
Super precision bearings include the 70BNR10H NSKROBUST angular contact bearing and the N1010MRKR cylindrical roller bearing for machine tool spindles, and the UCP208D1 pillow block unit covers housed bearings.
Where NSK bearings are used
Electric motors, pumps, fans and gearboxes, conveyors, machine tool spindles and ball screw drives, and general industrial machinery. Each product page quotes dimensions, load ratings and limiting speeds as printed in the NSK catalogue.
Ordering NSK bearings: what we need
Give the complete designation marked on the bearing, including prefix and suffix letters such as seal, cage, clearance and precision codes. If the marking is worn, measure bore, outside diameter and width and tell us the machine and shaft position, the operating speed and the lubrication. State the quantity and any precision class or special clearance required.
Browse NSK products by category: Ball Bearings.
Related products
Frequently Asked Questions
What does HR mean in HR30210J?
HR is the NSK mark for its high load capacity tapered roller bearing series.
What does the J suffix mean?
NSK states that J means the outer ring back-face raceway diameter, outer ring width and contact angle conform to ISO specifications, so the inner ring assembly and outer ring are internationally interchangeable.
What are the main dimensions of the HR30210J?
Bore 50 mm, outside diameter 90 mm, overall width T 21.75 mm, inner ring width 20 mm and outer ring width 17 mm.
What load ratings does it have?
Basic dynamic load rating Cr is 94,000 N and basic static rating C0r is 91,500 N per the NSK table.
Can one tapered roller bearing be used alone?
Normally not. A radial load produces an axial force component, so NSK says two bearings must be used in opposition or another multiple-bearing arrangement.
