Viking Johnson EasiClamp 4-Bolt Pipe Repair Clamp DN50-DN300

A four-bolt repair clamp for cracked or leaking pipe

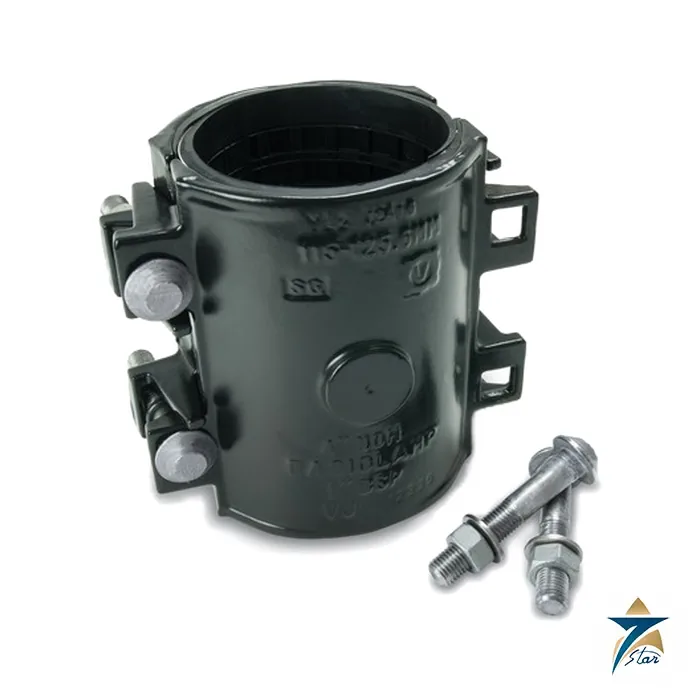

The Viking Johnson EasiClamp four-bolt clamp seals leaks on a pipe without cutting it out. Two ductile iron housings with a rubber gasket wrap the pipe and are drawn together by four bolts; a stainless steel bridging plate spans the gap. The same datasheet covers the EasiTap, which is the clamp supplied with a tapped boss for a branch outlet, for 2 to 12 inch (DN50 to DN300) pipe.

Each size has a narrow OD range, for example 115.0 to 125.6 mm on the 4 inch DN100 clamp, so measure the pipe before ordering. The clamp is for repair, not for jointing two pipes, and the datasheet says it does not resist end load, so unsupported pipe sections need restraint.

EasiClamp four-bolt technical data

Sizes and dimensions from the datasheet (mm; X, Y and Z as drawn; BSP threaded outlet sizes apply to the EasiTap boss).

What the size table tells you

There are two DN200 (8 inch) entries because pipe outside diameters differ: 216.5-226.0 mm and 230.2-243.5 mm. Measure and match. The DN50 and DN65 clamps use M12 x 65 mm bolts, DN80 to DN200 use M16 x 95 mm and DN225 uses M16 x 120 mm, all with four bolts, while the DN250 and DN300 clamps step up to six and eight M16 x 120 mm bolts. Z, the clamp length, is 200 mm on most sizes and 250 to 300 mm on DN250 and DN300. The EasiTap outlet is a BSP thread: 3/4 inch on DN50 to DN80, and up to 1 inch on DN100 to DN300, with 1/2 inch also offered on DN100, DN250 and DN300. Weights run from 4.1 kg on DN50 to 25.2 kg on DN300, a useful figure when the clamp has to be handled in a trench or a confined chamber. Remember that the Y dimension in the table is a maximum, so allow clearance around the pipe for the housings and bolt heads before excavating.

Selection, installation and limits

• Match the pipe OD to the clamp range; a wrong clamp will not seal.
• Choose the plain clamp for repair and the tapped boss version for a branch connection.
• Pressure is limited to 16 bar water; gas is not approved.
• Torque to 55-65 Nm on M12 or 95-110 Nm on M16 bolts and clean the pipe surface of scale first (general good practice).
• The datasheet shows no single order code, so quote the pipe OD, material and any outlet size and ask the manufacturer to confirm the exact configuration.
