Brand: NSK

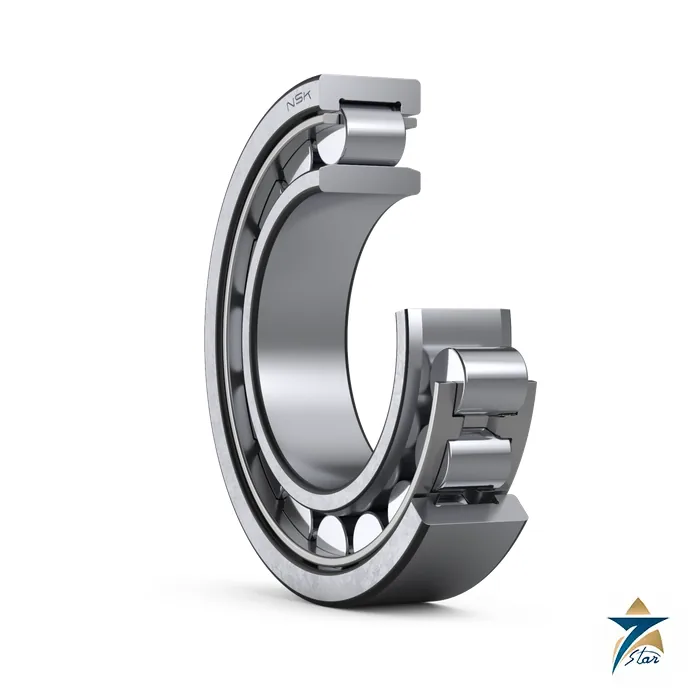

NSK NU210EW Cylindrical Roller Bearing
Description
A cylindrical roller bearing for heavy radial loads and free axial movement
The NSK NU210EW is a single-row cylindrical roller bearing with a 50 mm bore, 90 mm outside diameter and 20 mm width. In the NU type the outer ring has two ribs and the inner ring has none, so the inner ring can slide axially relative to the outer ring. NSK states that types NU, N, NNU and NN are suitable as free-end bearings, which makes the NU210EW the normal partner of a locating bearing such as a double-row angular contact or four-point bearing in pump, gearbox and electric motor shafts, where thermal growth must be absorbed without axial stress. The E in the designation marks the high load capacity internal design with optimised roller crowning.
Technical specifications
| Parameter | Specification |
|---|---|
| Designation | NU210EW: NU = outer ring with two ribs, inner ring without rib; 2 = 02 series; 10 = 50 mm bore; E = high load capacity; W = pressed steel cage |
| Bore d / outside D / width B | 50 mm / 90 mm / 20 mm |
| Roller set bore diameter Fw | 59.5 mm |
| Chamfer r / r1 (min.) | 1.1 mm / 1.1 mm |
| Basic dynamic load rating Cr | 85,000 N |
| Basic static load rating C0r | 76,500 N |
| Limiting speed, grease | 6,300 rpm |
| Limiting speed, oil bath | 7,500 rpm; thermal speed rating 8,000 rpm (oil bath); mechanical 11,000 rpm (forced oil circulation) |
| Mass (approx.) | 0.50 kg |
| Cage options | W pressed steel (standard); M machined brass; T polyamide 66; T7 L-PPS resin |
| Axial behaviour | Free-end type: allows axial displacement of the inner ring relative to the outer ring |
Size table for the NSK NU2 E series
Rows are the NU2xxE bearings from the NSK single-row cylindrical roller bearing table. Speeds are the grease and oil-bath limiting speeds as printed.
| Designation | d mm | D mm | B mm | Fw mm | Cr N | C0r N | Grease rpm | Oil bath rpm | Mass kg |
|---|---|---|---|---|---|---|---|---|---|
| NU204E | 20 | 47 | 14 | 26.5 | 31,500 | 22,600 | 13,000 | 16,000 | 0.107 |
| NU205E | 25 | 52 | 15 | 31.5 | 36,000 | 27,700 | 12,000 | 14,000 | 0.136 |
| NU206E | 30 | 62 | 16 | 37.5 | 48,000 | 37,500 | 9,500 | 12,000 | 0.205 |
| NU207E | 35 | 72 | 17 | 44 | 62,000 | 50,000 | 8,500 | 10,000 | 0.304 |
| NU208E | 40 | 80 | 18 | 49.5 | 68,500 | 55,500 | 7,500 | 9,000 | 0.379 |
| NU209E | 45 | 85 | 19 | 54.5 | 77,500 | 66,500 | 6,700 | 8,000 | 0.438 |
| NU210E | 50 | 90 | 20 | 59.5 | 85,000 | 76,500 | 6,300 | 7,500 | 0.5 |
| NU211E | 55 | 100 | 21 | 66 | 106,000 | 98,500 | 5,600 | 7,100 | 0.669 |
| NU212E | 60 | 110 | 22 | 72 | 120,000 | 107,000 | 5,300 | 6,300 | 0.824 |
Choosing the type and the cage
NSK classifies single-row cylindrical roller bearings by their ribs. NU and N types are free-end bearings. NJ and NF types can sustain limited axial loads in one direction, and NUP and NH types can be used as fixed-end bearings; the NH type is an NJ bearing combined with an HJ L-shaped thrust collar. The inner ring loose rib of the NUP type must be mounted with its marked side outward. The standard cage for the E series is pressed steel (W); machined brass (M), polyamide 66 (T) and L-PPS resin (T7) cages are listed as options.
Cylindrical roller bearings need a minimum radial load to prevent skidding, and they do not tolerate misalignment as well as spherical roller bearings, so shaft and housing alignment matters. The Timken 22216EJW33 is a self-aligning alternative for heavy radial load, and more drive components are under Electric Motors, Pumps and Turbines.
Documents and ordering
Confirm type (NU, NJ, NUP or N), cage, radial clearance class, tolerance class, speed, loads and whether the inner ring should be a separate part. The attached PDF is a page extract from NSK catalogue Rolling Bearings for Industrial Machinery (Cat. No. E1103b) with the cylindrical roller design notes and the NU2 series tables. Seven Star LLC is an independent supplier in Muscat; availability is confirmed per enquiry.
Datasheets & Documents
- Catalog NSK Rolling Bearings for Industrial Machinery E1103b - extract: single-row cylindrical roller bearings, NU2 series Download
Reviews (0)
About brand
NSK is a Japanese manufacturer of bearings and motion and control components and the largest bearing maker in Japan. The company was founded in Tokyo in 1916, when it also produced its first bearings, and it was the first company to make ball bearings in Japan. NSK Ltd. is headquartered in Shinagawa, Tokyo, and listed on the Tokyo Stock Exchange.
Seven Star LLC is an independent supplier in Muscat. We list NSK catalogue bearings for maintenance teams, workshops and machine builders in Oman and the GCC.
NSK company profile
| Founded | 1916, Yurakucho, Tokyo, Japan (predecessor partnership 1914) |
|---|---|
| Headquarters | Ōsaki, Shinagawa, Tokyo, Japan |
| Ownership | Public company, Tokyo Stock Exchange |
| Distinction | First manufacturer of ball bearings in Japan |
| Product families | Deep groove and angular contact ball bearings, cylindrical, tapered and spherical roller bearings, super-precision machine tool bearings, linear guides and ball screws, automotive components |
Milestones
- 1914: The predecessor partnership is set up in Tokyo.
- 1916: NSK is founded and produces its first bearings.
NSK product series
Ball bearings on this site include the 608 extra small and 6208DDU deep groove bearings, the 7208A single-row and 5206 double-row angular contact bearings, the 7304AWDT matched pair, the QJ210 four-point-contact bearing, the BL210 maximum-type bearing, the 51208 single-direction and 52208 double-direction thrust ball bearings and the 30TAC62C ball screw support bearing. Roller bearings include the HR30210J tapered roller bearing and the NU210EW cylindrical roller bearing.
Super precision bearings include the 70BNR10H NSKROBUST angular contact bearing and the N1010MRKR cylindrical roller bearing for machine tool spindles, and the UCP208D1 pillow block unit covers housed bearings.
Where NSK bearings are used
Electric motors, pumps, fans and gearboxes, conveyors, machine tool spindles and ball screw drives, and general industrial machinery. Each product page quotes dimensions, load ratings and limiting speeds as printed in the NSK catalogue.
NSK products we list
Ordering NSK bearings: what we need
Give the complete designation marked on the bearing, including prefix and suffix letters such as seal, cage, clearance and precision codes. If the marking is worn, measure bore, outside diameter and width and tell us the machine and shaft position, the operating speed and the lubrication. State the quantity and any precision class or special clearance required.
Facts checked against NSK's own company history (nsk.com), October 2026.
Browse NSK products by category: Ball Bearings.
Related products
Frequently Asked Questions
What does NU mean in NU210EW?
NU is the NSK type code for a single-row cylindrical roller bearing whose outer ring has two ribs and whose inner ring has none, so it works as a free-end bearing.
What does the E in NU210E stand for?
E is the NSK internal design code for high load capacity.
What are the load ratings of the NU210E?
Cr is 85,000 N and C0r is 76,500 N in the NSK bearing table.
What speeds does NSK list for the NU210E?
Limiting speed is 6,300 rpm with grease and 7,500 rpm with oil bath; the thermal speed rating is 8,000 rpm (oil bath) and 11,000 rpm for forced oil circulation.
Which cages are available?
The standard cage is pressed steel (W). NSK lists machined brass (M), polyamide 66 (T) and L-PPS resin (T7) as options for the series.
