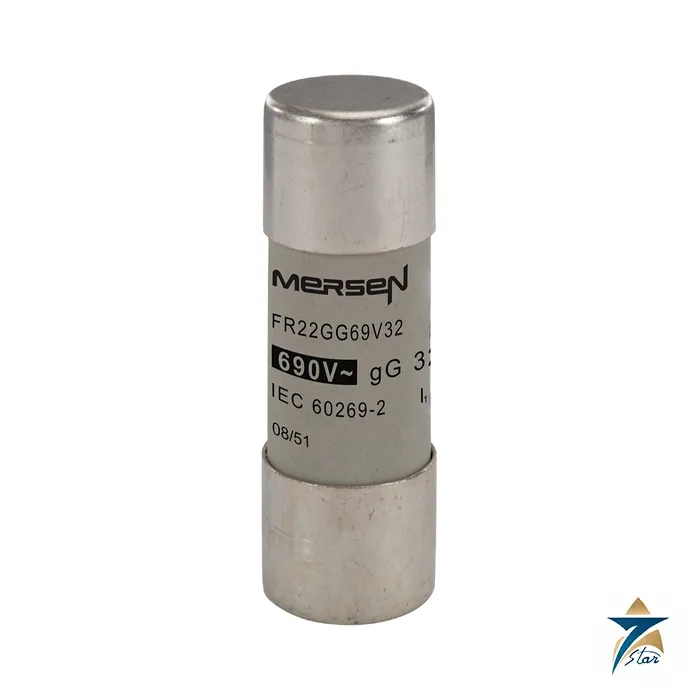

Mersen FR22GG69V32 Ferrule Fuse 22×58 gG 32A 690V F212594

FR22GG69V32 (item number F212594) is a Mersen cylindrical ferrule fuse-link, size 22 x 58 mm, type gG, rated 32 A at 690 V ac / 250 V dc with 120 kA ac and 100 kA dc breaking capacity. It has a ceramic body, silver-plated copper contacts, dissipates 3.7 W at rated current and weighs 54 g.

The 690 V cylinder fuse for motor feeders

The 22 x 58 mm size is the largest cylindrical fuse in the common 10, 14 and 22 mm series, with a range of 2 to 125 A in the Mersen datasheet and voltage ratings of 500 to 690 V ac. Up to 80 A the listed items are rated 690 V; the 100 A and 125 A items are 500 V. The 32 A item is therefore in the 690 V part of the range, making it suitable for 400/690 V motor and feeder circuits.

Mersen states that all cylindrical fuse-links have ceramic bodies and silver-plated contacts, and that the 14 x 51 and 22 x 58 sizes are available with an optional striker to activate an auxiliary contact; the striker range appears separately in the datasheet. This item is the version without striker.

Key features as printed in the datasheet

• 22 x 58 mm cylindrical, gG, 32 A, 690 V ac / 250 V dc.
• Rated breaking capacity 120 kA ac, 100 kA dc.
• Power dissipation 3.7 W; weight 54 g.
• Ceramic body; silver-plated copper contacts.
• Datasheet standards: IEC 60269-1 & -2; approvals by Lloyd’s Register of Shipping and Bureau Veritas.
• Striker version available separately for remote indication.

Technical specification

Product data

Range data (22×58 gG)

Selection and ordering guide

Catalog number decoding: FR22 (22 x 58 mm) GG (gG) 69V (690 V) 32 (32 A). Neighbours are FR22GG69V25 (25 A) and FR22GG69V40 (40 A). Choose a striker version if you need an auxiliary contact to signal a blown fuse.

Match the fuse holder to 22 x 58 mm and 690 V; many holders for this size are rated to 690 V but some are lower, so check the holder datasheet.

Within the 690 V ratings of the 22 x 58 mm series the datasheet dissipation rises from 0.9 W at 2 A to 7.4 W at 80 A; the 32 A item at 3.7 W is mid-range. The body weight of 54 g is the same for all ratings, so a holder suited to 22 x 58 fits them all, but its current rating must not be below the fuse-link rating chosen.

Installation and operation notes

Insert into a 22 x 58 holder or fuse-switch; check the holder current rating is not below 32 A.

Dissipation of 3.7 W per fuse; 11.1 W for three poles (derived) adds to the enclosure heat load.

Derived check: at 690 V three-phase, 32 A corresponds to about 38 kVA (square root of 3 x 690 V x 32 A). Motor starting current should be checked against the gG time-current curve in the datasheet, or an aM fuse selected instead, since a gG fuse sized for a motor can be larger than the cable needs.

Applications in Oman and the GCC

Motor branch circuits, pumps, compressors, cooling fans and process-skid feeders on 400/690 V systems in oil and gas, petrochemical, water and industrial plants; panels built to IEC practice commonly use cylindrical fuses in fuse disconnectors.

For motor starting currents consider aM fuse-links from the same Mersen ranges.

Ordering tip: the Mersen item number F212594 identifies this 32 A fuse-link, and neighbouring ratings use their own numbers (for example FR22GG69V25 is N212072 and FR22GG69V50 is P214626). Order fuse-links in sets of three for a three-phase circuit and keep spares of the same rating and voltage.

Selection and handling notes

The 22 x 58 mm body needs a holder or fuse disconnector sized for that cylinder and rated for 690 V. At 32 A the fuse dissipates 3.7 W, so allow space and ventilation in the enclosure when many are fitted side by side. Where a blown-fuse signal is needed, choose the striker version listed separately in the datasheet instead of this plain item.

Information needed for a quotation

Send the full item code, the quantity, the delivery location in Oman or the GCC and any matching fuse bases, holders or handles, so that the complete protection package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification before a purchase is confirmed. Ratings, dimensions and protection classes are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Compatible accessories and related items

Related Mersen items on this site: 10 x 38 fuse FR10GG50V10, NH gG fuses, NH aM fuse NH2AM69V200, D02 fuse D02GG44V63.

Frequently asked questions

What are the ratings of FR22GG69V32?

22 x 58 mm gG, 32 A, 690 V ac / 250 V dc, 120 kA ac.

What is the item number?

F212594.

Is there a striker?

This item has no striker; striker versions are listed separately.

How heavy is it?

54 g.

Does Seven Star LLC act as a Mersen distributor?

No, we are an independent supplier in Muscat and supply Mersen items on request rather than acting as a Mersen channel partner.

Documents and quotation

Need FR22GG69V32? The Mersen datasheet is attached to this listing. Seven Star LLC (independent supplier, Muscat) can quote the item and arrange supply on request; list quantity and site location in your enquiry. Verify the code, dimensions and approvals in the document before ordering. Other products are in the category page.
