Brand: Timken

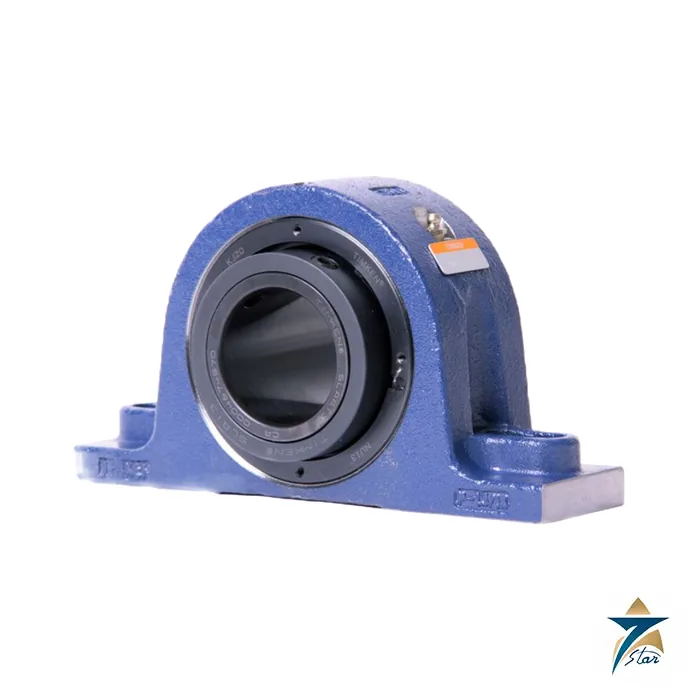

Timken Solid-Block Mounted Spherical Roller Bearings Pillow Blocks
Description
Cast-steel mounted spherical roller bearings with a one-piece housing
The Timken solid-block mounted spherical roller bearing is a one-piece cast-steel housing carrying a double-row Timken spherical roller bearing with a black-oxide inner ring. Unlike a split plummer block it is slid onto the shaft end, which makes it a robust, maintenance-friendly choice for metal mills, aggregate and cement, mining, power generation, sawmills, pulp and paper, sugar mills, water treatment, fans and blowers, cranes and hoists. The housing is made from cast steel with 75,000 psi tensile strength so that the bearing-to-housing fit is retained in rough service.
Timken builds units for shaft diameters from 35 mm to 380 mm (1 7/16 to 15 inch), with built-to-order manufacturing for custom configurations, and states that they interchange dimensionally with a wide range of other mounted roller bearing units. The bearing accepts a total of 1.5 degrees of misalignment, and a double-nut housing feature allows shaft expansion in both directions.
Technical specifications
| Parameter | Specification |
|---|---|
| Housing | Cast steel, 75,000 psi tensile; powder coat standard, nickel plating and fluoropolymer coating optional |
| Bearing | Double-row spherical roller bearing, black-oxide inner ring; bore series 222XX, 232XX and 231XX |
| Shaft sizes | 35 to 380 mm (1 7/16 to 15 in.), inch and metric |
| Misalignment | 1.5 degrees total |
| Housing fit | J7, size-for-size to light interference |
| Housing styles | Two- and four-bolt pillow blocks (Type E, SAF, SN, S2000, 5000 and 9000 series dimensions), flange blocks, piloted flange cartridges, take-up blocks, cartridge and hanger blocks |
| Secondary seals | Closed-end and open-end covers (triple-lip, Teflon or V-ring seal), piloted-flange backing plates |
| Lubrication | Premium industrial grease; relief valves standard with non-purgeable seals; options NG no grease, FG food-grade, HT high temperature |
| Source | Timken Solid-Block Mounted Spherical Roller Bearings catalog, Order No. 10785 |
Locking styles and primary seals (letters used in the part number):
| Code | Locking style |
|---|---|
| QM | Eccentric lock |
| QA / QAA | Concentric set screw lock, single / double collar |
| QV / QVV | V-Lock tapered lock, single / double nut |
| DV / DAA | Tapered adapter lock, heavy-duty block, single / double nut |
| TA / TAA | Tapered adapter lock, extreme-duty block, single / double nut |
| Seal code | Primary seal |
|---|---|
| T | DuPont Teflon labyrinth (standard) |
| M | Triple-lip nitrile rubber (standard) |
| N | Triple-lip Viton |
| O | Triple-lip urethane |
| B | Double-lip nitrile rubber |
| C | Double-lip Viton |
How to build the part number and pick options
A complete number reads QM P 13 J 207 S E M NG: locking style QM (eccentric), housing style P (Type E dimension two-bolt pillow block), insert bore series 13 (22213), locking type J, shaft 207 meaning 2 7/16 inch (050 would be 50 mm), housing material S for cast steel, E for expansion (floating, blank for fixed), seal M and the additional offering NG. Further additions are NP nickel plated, XY fluoropolymer coated and FB food and beverage.
For contaminated sites combine the primary seal with a bolt-on secondary cover. The grease cavity between the primary and secondary seals can be filled for extra protection, and covers are made in steel or urethane. Where the replacement is for an existing unit, Timken advises reading the part number from the housing tag.
What to confirm before ordering
Confirm the shaft diameter and tolerance, housing style and centre height, fixed or expansion, locking style, primary and secondary seal, coating and grease. Timken suggests GR255 high-performance mounted roller bearing grease, or GR217 premium all-purpose grease, for these units. Check the shaft is clean and the unit is never welded. More Timken products are under Electric Motors, Pumps and Turbines.
Documents and quotation
The attached Timken catalogue contains the part-number tables for each housing style, seal and cover nomenclature, and a comparison chart. Send the unit tag number and quantity when requesting a quotation from Seven Star LLC, an independent supplier in Muscat.
Datasheets & Documents
- Datasheet Timken Solid-Block Mounted Spherical Roller Bearings Catalog (Order No. 10785) Download
Reviews (0)
About brand
The Timken Company is an American manufacturer of bearings and power transmission products. Henry Timken patented an improved tapered roller bearing in 1898 and incorporated the company in St. Louis in 1899; it moved to Canton, Ohio, in 1901 and is headquartered in North Canton, Ohio. Timken is listed on the New York Stock Exchange and describes itself as the world's largest maker of tapered roller bearings.
Seven Star LLC is an independent supplier in Muscat. We list Timken bearings, mounted units and lubrication products for maintenance departments and workshops in Oman and the GCC.
Timken company profile
| Founded | 1899, St. Louis, Missouri, as the Timken Roller Bearing Axle Company |
|---|---|
| Founder | Henry Timken, carriage maker and holder of tapered roller bearing patents |
| Headquarters | North Canton, Ohio, USA |
| Ownership | Public company, New York Stock Exchange (TKR) |
| Product families | Tapered, cylindrical, spherical and ball bearings, housed units, couplings, gear drives, belts and chains, lubricants and lubrication systems |
Milestones
- 1898: Henry Timken receives a patent for his tapered roller bearing design.
- 1899: The Timken Roller Bearing Axle Company is incorporated in St. Louis.
- 1901: The company moves to Canton, Ohio, closer to the growing car industry.
Timken product series
Roller bearings include metric tapered roller bearings such as the 32206, EJ and EM spherical roller bearings in the 222 and 223 series such as the 22216EJW33, single-row cylindrical roller bearings (NU, N, NJ, NUP), double-row and four-row cylindrical roller bearings for rolling mills, and TSR thrust spherical roller bearings. Ball bearings include 7200 and 7300 single-row and 3200 and 3300 double-row angular contact bearings and corrosion-resistant stainless deep groove bearings.
Mounted products cover Fafnir ball bearing pillow blocks and flanges, corrosion-resistant mounted units, SAF split block and SNT split plummer block housings and solid-block spherical roller bearing pillow blocks. Lubrication products include GR mounted bearing greases, single-point lubricators and Solid Lube.
Where Timken bearings are used
Gearboxes, pumps, fans and blowers, conveyors and crushers, rolling mills, food processing lines and vehicle wheel ends.
Timken products we list
Ordering Timken bearings: what we need
Give the complete part number stamped on the bearing, including any prefix and suffix. Inch-series tapered roller bearings have separate numbers for cone and cup, so quote both. If the marking is worn, measure bore, outside diameter and width and tell us the machine and shaft position. For housed units give the housing type, shaft size and locking method. State the quantity and any precision class or special clearance required.
Facts checked against Timken's SEC filings and published company histories, October 2026.
Browse Timken products by category: Ball Bearings, Roller Bearings.
Related products
Frequently Asked Questions
What shaft sizes do solid-block units cover?
35 mm to 380 mm (1 7/16 to 15 inches) in inch and metric sizes.
Are the housings cast iron or cast steel?
Every Timken solid-block mounted spherical roller bearing housing is cast steel, with powder coating as standard.
What do QM, QA and QV mean?
Locking style: QM is eccentric lock, QA concentric set screw lock and QV V-Lock tapered lock, with double-collar or double-nut versions.
How much misalignment is accepted?
1.5 degrees total, thanks to the spherical roller bearing.
Is Seven Star LLC a distributor of Timken?
No, Seven Star LLC is an independent supplier in Muscat that quotes against the tag number you provide.
