Brand: Timken

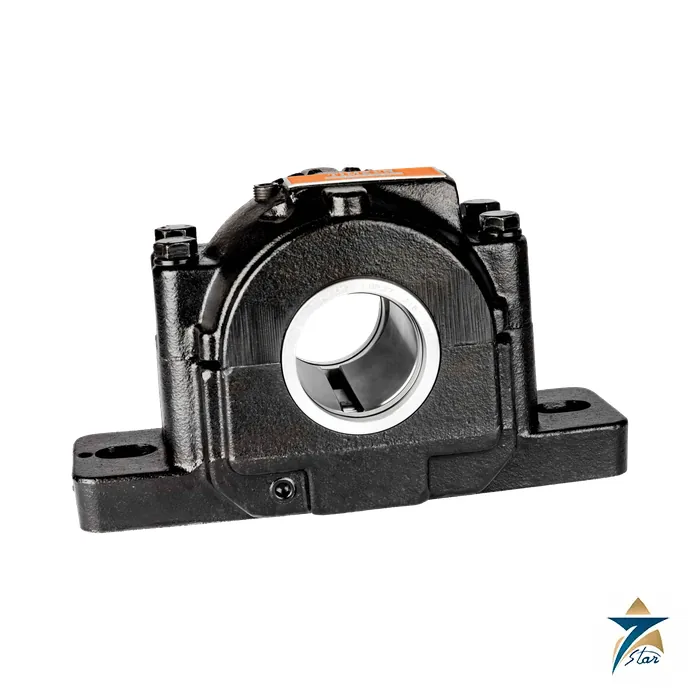

Timken SAF Split Block Mounted Spherical Roller Bearing Pillow Blocks
Description
Heavy-duty split pillow blocks with a high-capacity spherical roller bearing
The Timken SAF pillow block is an inch-series split-block housing for heavy industrial shafts. A cast-iron cap and base, machined as a matched pair and located by dowels, carry a Timken spherical roller bearing with a triple-ring labyrinth seal. Timken sells it in two styles: SAF, and the larger SDAF for extremely heavy duty. Cast steel (SAFS, FSAFS, SDAFS) and ductile iron housings are offered where a stronger casting than standard cast iron is needed; Timken describes these as up to twice as strong.
The shaft range runs from 1 3/8 to 19 1/2 inch standard sizes, with custom shaft sizes up to 40 inches and metric bores available. The spherical roller bearing inside tolerates plus or minus 1.5 degrees of misalignment without a loss of rated life. Typical users listed by Timken include coal-fired power generation, mining, aggregate and cement, metal mills, pulp and paper, sawmills, water treatment, food processing, industrial fans and blowers and movable bridges.
Technical specifications
| Parameter | Specification |
|---|---|
| Housing configurations | SAF two- or four-bolt cast iron; SDAF four-bolt heavy-duty cast iron; SAFS two- or four-bolt cast steel; FSAF four-bolt; FSAFS four-bolt cast steel; SDAFS four-bolt heavy-duty cast steel |
| Standard shaft sizes | 1 3/8 to 19 1/2 in.; custom shafts to 40 in.; metric bores on request |
| Bearing | Timken spherical roller bearing, steel or brass cage; tapered bore on adapter (K) or straight bore |
| Misalignment | Plus or minus 1.5 degrees |
| Fixed or float | Removable stabilizing ring: with ring = fixed; without = float with axial movement up to 3/8 in. |
| Standard seal | Precision aluminium triple-ring labyrinth (LOR) with oversized oil-return holes |
| Optional seals | TG isolator-style seal, DUSTAC V-ring seal, RLS series, SRLS series split-face labyrinth with O-ring |
| Lubrication | Housings are designed for grease or oil-bath lubrication |
| Order code form | SAF 22532 X 5 1/2 FXCL: housing, series, shaft size (required from 8 7/16 in.), fixed/float and open/closed |
| Source | Timken SAF Split-Block Mounted Spherical Roller Bearing Catalog; SAF sell sheet Order No. 10507 |
Series offered, with bearing bore series, shaft range and number of standard shaft sizes, as printed by Timken:
| Housing series | Bearing series | Shaft range (in.) | Standard shaft sizes |
|---|---|---|---|
| SAF 225 (tapered bore) | 09 to 44 | 1 3/8 to 8 | 87 |
| SDAF 225 | 20 to 44 | 3 3/8 to 7 15/16 | 31 |
| SAF 226 | 15 to 40 | 2 3/8 to 7 1/4 | 56 |
| SDAF 226 | 17 to 40 | 2 7/8 to 7 3/16 | 35 |
| SAF 230K | 24 to 56 | 4 1/16 to 10 1/2 | 47 |
| SDAF 230K | 50 to 530 | 10 15/16 to 19 1/2 | 21 |
| SDAF 231K | 52 to 500 | 9 7/16 to 18 | 20 |
| SDAF 232K | 48 to 88 | 8 15/16 to 16 1/2 | 15 |
| SAF 222 (straight bore) | 17 to 44 | 3 3/16 to 8 5/16 | 17 |
| SDAF 222 | 20 to 44 | 3 13/16 to 8 5/16 | 12 |
| SAF 223 | 17 to 40 | 3 3/16 to 7 5/8 | 14 |
| SDAF 223 | 17 to 40 | 3 3/16 to 7 5/8 | 13 |
| SDAF 231 (straight bore) | 52 to 92 | 9 15/16 to 17 3/4 | 11 |
Choosing the series, seal and construction
Tapered-bore designs (225, 226, 230K, 231K, 232K) mount with an adapter assembly and let the bearing be positioned along a standard commercial shaft; straight-bore designs (222, 223, 231) give better axial location on a stepped shaft. The last letters of the code give the construction: FXOP fixed open, FXCL fixed closed, FLOP float open and FLCL float closed. Open means the shaft continues through the housing; closed means it ends inside. A float unit is converted by leaving out the stabilizing ring, which is why one housing can serve both positions.
The standard labyrinth suits most conditions. In extremely contaminated or abrasive surroundings Timken offers the TG isolator seal, the DUSTAC V-shaped nitrile ring that rotates with the shaft, or the grease-filled RLS wedge cavity. Examples in the 5-series housing table include SAF 509 on bearing 22209K with SNW-09 adapter and SR-9-9 stabilizing ring, and SAF 511 on 22211K with SNW-11 and SR-11-0.
What to confirm before ordering
State the housing series and size, shaft diameter, tapered or straight bore, fixed or float, open or closed, cast iron, ductile iron or cast steel, and the seal. Timken also publishes SAF interchange charts. Complete assemblies or individual parts can be quoted. See also Electric Motors, Pumps and Turbines for other Timken items.
Documents and quotation
The attached Timken SAF catalogue contains the bore-size tables, adapter and seal part numbers, nomenclature and engineering notes. Send the full SAF code and quantity when requesting a quotation from Seven Star LLC, an independent supplier in Muscat.
Datasheets & Documents
- Datasheet Timken SAF Split-Block Mounted Spherical Roller Bearing Catalog Download
Reviews (0)
About brand
Timken is a manufacturer of bearings and power transmission products, founded in 1899 and headquartered in North Canton, Ohio, USA. The company began with the tapered roller bearing, and its range now also covers ball, cylindrical and spherical roller bearings, housed units, lubricants and lubrication devices.
Seven Star LLC is an independent supplier in Muscat. We list Timken bearings, mounted units and lubrication products for maintenance departments and workshops in Oman and the GCC.
Timken product series
Roller bearings include metric tapered roller bearings such as the 32206, EJ and EM spherical roller bearings in the 222 and 223 series such as the 22216EJW33, single-row cylindrical roller bearings (NU, N, NJ, NUP), double-row and four-row cylindrical roller bearings for rolling mills, and TSR thrust spherical roller bearings. Ball bearings include 7200 and 7300 single-row and 3200 and 3300 double-row angular contact bearings and corrosion-resistant stainless deep groove bearings.
Mounted products cover Fafnir ball bearing pillow blocks and flanges, corrosion-resistant mounted units, SAF split block and SNT split plummer block housings and solid-block spherical roller bearing pillow blocks. Lubrication products include GR mounted bearing greases, single-point lubricators and Solid Lube.
Where Timken bearings are used
Gearboxes, pumps, fans and blowers, conveyors and crushers, rolling mills, food processing lines and vehicle wheel ends.
Ordering Timken bearings: what we need
Give the complete part number stamped on the bearing, including any prefix and suffix. Inch-series tapered roller bearings have separate numbers for cone and cup, so quote both. If the marking is worn, measure bore, outside diameter and width and tell us the machine and shaft position. For housed units give the housing type, shaft size and locking method. State the quantity and any precision class or special clearance required.
Browse Timken products by category: Ball Bearings, Roller Bearings.
Related products
Frequently Asked Questions
What is the difference between SAF and SDAF?
SDAF is the larger, extra-heavy-duty block of the family; SAF is the standard split pillow block. Both hold Timken spherical roller bearings.
What do FXOP, FXCL, FLOP and FLCL mean?
Fixed open, fixed closed, float open and float closed. Closed means the shaft ends in the housing; open means it passes through.
How is a fixed block converted to float?
By removing the stabilizing ring; a float unit allows axial movement up to 3/8 inch.
What shaft sizes are standard?
1 3/8 to 19 1/2 inches, with custom sizes to 40 inches and metric bores available, per the Timken sell sheet.
Is Seven Star LLC a distributor of Timken?
No, Seven Star LLC is an independent supplier in Muscat that sources against your quoted code.
