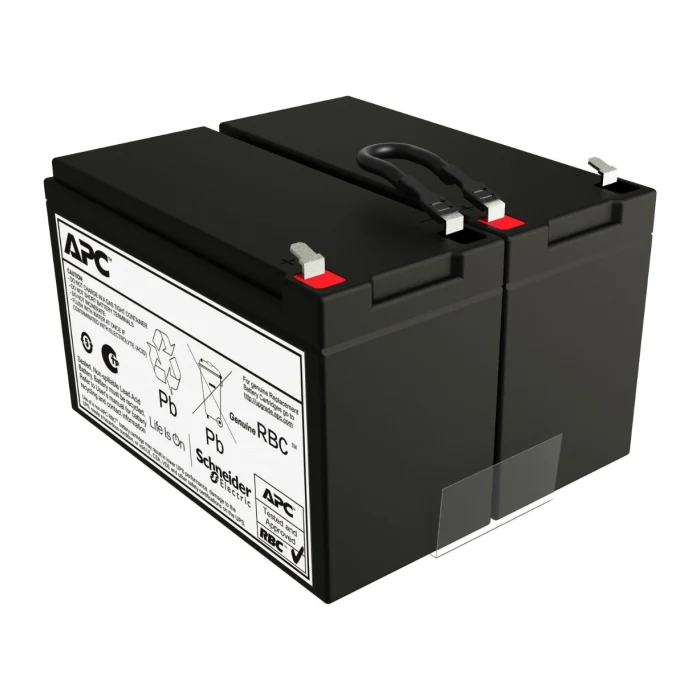

APCRBCV206 Replacement Battery Cartridge VRLA 7Ah 24V DC 2-year

Where the APCRBCV206 fits

APCRBCV206 is catalogued by APC as Replacement Battery Cartridge VRLA 7Ah 24V DC 2-year warranty.

Chemistry: vrla. Each unit measures 122 mm x 130 mm x 151 mm (H x W x D) and weighs 4.09 kg.

Technical specifications

Battery data and handling

Battery voltage: 24 V. Battery capacity: 7 Ah.

Battery replacement should be matched to the exact UPS model named in the APC documentation, because voltage, connector and cartridge count differ between systems. Used batteries must be recycled according to local regulations.

Site requirements and approvals

Dimensions are 122 mm x 130 mm x 151 mm (H x W x D), and the unit weighs 4.09 kg.

Listed operating limits: operating temperature 0…40 °C; relative humidity 0…95 % non-condensing; operating altitude 0…3000 m.

Certifications: CB. Warranty recorded by APC (months): 24.

The APCRBCV206 is listed with type vrla, voltage 24 V, capacity 7 Ah. Replacement batteries should be fitted as a complete set of the same type and age, because mixing old and new cells shortens the life of the whole string. Fit and wire the cartridge exactly as shown in the installation sheet, and recycle used batteries according to local regulations.

The unit measures 122 mm x 130 mm x 151 mm (H x W x D) and weighs 4.09 kg, so check the available space and the handling requirements before delivery. It occupies 0U of rack space. Listed environmental limits: operating temperature 0…40 °C; relative humidity 0…95 % non-condensing; altitude 0…3000 m. Store and operate the battery within these limits, because heat shortens service life.

Certifications listed: CB. The warranty period recorded in the product data is 24 months. If a project requires certificates or test reports, include that request with the quotation request.

How the APCRBCV206 is used in APC systems

APC by Schneider Electric is one of the most widely installed UPS brands worldwide, covering single-phase and three-phase UPS systems, replacement batteries, battery packs, management cards and installation accessories.

An APC Replacement Battery Cartridge (RBC) is a pre-assembled set of sealed valve-regulated lead-acid (VRLA) blocks, wired, terminated and packed so that the battery of a UPS can be changed as one unit. Each cartridge number is listed for specific UPS models, and the cartridge arrives ready to fit with the required connectors. Valve-regulated lead-acid batteries typically need replacement every three to five years, or earlier when the UPS self-test reports a weak battery. On UPS models that support hot-swap, the cartridge can be changed with the load still running; otherwise plan a short shutdown.

In the product data for the APC APCRBCV206, its battery technology is listed as vrla; the battery voltage is 24 V; it occupies 0U rack unit(s). These values are the starting point for matching it to the rest of the installation.

Using the APCRBCV206 in Gulf climate and grid conditions

The listed operating temperature tops out at 40 °C. Summer shade temperatures in Muscat, Sohar and the interior regularly pass 45 °C, so the equipment belongs in an air-conditioned room or cabinet rather than an open plant area. Battery temperature has the biggest effect on service life: as a rule of thumb, the life of a valve-regulated lead-acid battery roughly halves for every 10 °C above 25 °C, so a room held at 20 to 25 °C pays back in fewer battery replacements. Fine dust inland and humid, salty air on the coast are hard on electronics, so a sealed room, clean filters and periodic inspection of fans and terminals are part of a reliable installation.

Service life and maintenance of the APC APCRBCV206

A simple maintenance routine keeps the installation reliable: a yearly visual inspection, cleaning of dust from vents and filters, a check of terminal tightness and a review of the alarm and event history. For UPS and battery equipment, a battery test under the actual load shows whether runtime is still adequate, and comparing results year by year shows ageing early. Batteries should always be replaced as a matched set and returned for recycling.

Seven Star LLC supplies APC equipment as an independent supplier based in Muscat. Original product documents are provided where available, and the part number APCRBCV206 can be quoted together with related batteries, accessories and spares in one enquiry.

What to send with an enquiry for the APCRBCV206

The following details help confirm compatibility before a quotation is issued:

• The model and serial number of the UPS the cartridge will be fitted in
• The number of cartridges installed in that UPS
• The date the current battery was installed, if known
• Whether the old battery should be collected for recycling
• The delivery location in Oman (for example Muscat, Sohar, Duqm or Salalah) or elsewhere in the GCC, and the required date

More APC power protection products are listed on the APC brand page, and the wider Schneider Electric range is available from the same supply channel.

Documents and quotation

The official product datasheet for the APCRBCV206 is linked under Documents on this page, so ratings, dimensions and compatibility can be checked before ordering. Further manufacturer documents can be requested through the RFQ form.

The single-unit shipping package is listed as 18.3 cm (height) x 18.7 cm (width) x 20.8 cm (length) with a packed weight of 4.65 kg. Use these values when planning freight, lifting and receiving space.

To order, submit the part number APCRBCV206, the quantity and the delivery location. Related items are grouped under UPS and Batteries. Seven Star LLC is an independent supplier based in Muscat and answers with availability and a quotation.
