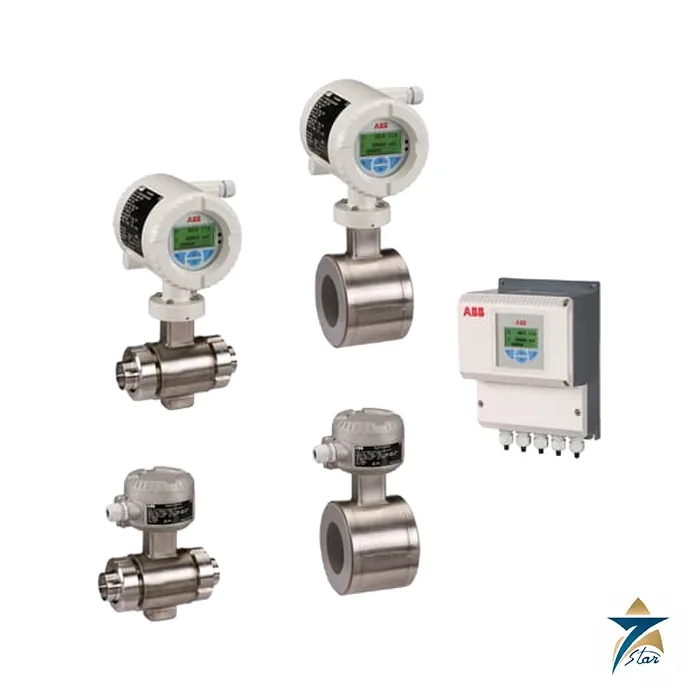

ABB-Electromagnetic flowmeter HygienicMaster FEH300
Overview
The ABB HygienicMaster FEH300 is an electromagnetic flowmeter engineered specifically for the food and beverage, pharmaceutical, and biotechnology industries, where sanitary connections and FDA-approved wetted materials are a regulatory requirement rather than an optional extra. It is the base-functionality model in the HygienicMaster family, positioned below the extended-diagnostic FEH500.
Seven Star LLC supplies the HygienicMaster FEH300 as an authorized ABB partner across Oman and the GCC, specifying it for sanitary process lines where straightforward, compliant hygienic flow measurement is the requirement.
Operating Principle
The FEH300 measures flow through the same Faraday’s-law induction principle as every ABB electromagnetic flowmeter – a conductive fluid moving through a magnetic field generates a voltage proportional to velocity at the measuring electrodes – but its flow tube and connections are engineered to the cleanability and material-traceability standards sanitary process industries require.
The PFA liner is vacuum-tight and CIP/SIP compatible, letting the meter be cleaned and sterilized in place using the same procedures applied to the rest of a sanitary process line, without disassembly.
Engineering Design of the HygienicMaster FEH300
Process connections include Tri-Clamp fittings to DIN 32676 and ASME BPE, and threaded connections to DIN 11851, covering the sanitary fitting standards most commonly specified across food, beverage, and pharmaceutical plant design. Wetted stainless steel components are grade 1.4404, and the meter carries FDA-approved materials and 3-A certification.
Measuring accuracy is rated at 0.4% of rate as standard, with an optional 0.2% of rate for applications demanding tighter measurement confidence, across a diameter range of DN3 to DN100. HART, PROFIBUS PA, and FOUNDATION Fieldbus communication are all supported.
Key Features
- Tri-Clamp (DIN 32676, ASME BPE) and threaded (DIN 11851) sanitary connections
- Vacuum-tight PFA liner, CIP/SIP compatible without disassembly
- FDA-approved wetted materials and 3-A certification
- 1.4404 stainless steel wetted components
- Accuracy of 0.4% of rate standard, 0.2% of rate optional
- DN3 to DN100 diameter range
- HART, PROFIBUS PA, and FOUNDATION Fieldbus communication
- Base-functionality model, shorter delivery and simpler documentation than FEH500
Industrial Applications
The HygienicMaster FEH300 is used across food and beverage production lines, pharmaceutical manufacturing, and biotechnology processes in Muscat, Sohar, Salalah, and the wider GCC wherever sanitary flow measurement with FDA-approved materials and CIP/SIP compatibility is required.
Seven Star LLC, as an authorized ABB representative, positions the FEH300 for standard hygienic flow measurement and directs customers who need extended diagnostics toward the FEH500 (see related product), matching the instrument to the actual regulatory and process requirement.
Technical Specifications
| Model | ABB HygienicMaster FEH300 |
|---|---|
| Connections | Tri-Clamp (DIN 32676/ASME BPE), threaded (DIN 11851) |
| Liner | PFA, vacuum-tight, CIP/SIP compatible |
| Wetted material | 1.4404 stainless steel, FDA-approved, 3-A certified |
| Accuracy | 0.4% of rate (0.2% optional) |
| Size range | DN3–100 |
| Communication | HART, PROFIBUS PA, FOUNDATION Fieldbus |
Why Choose Seven Star LLC for the ABB HygienicMaster FEH300
In sanitary process lines, the flowmeter’s process connection type and wetted material certification are not a matter of preference but of regulatory compliance, so before confirming any order, Seven Star LLC carefully verifies the exact sanitary fitting standard your line actually uses, whether Tri-Clamp, DIN, or another recognized connection type, along with the specific FDA-approved elastomer and wetted material grade genuinely required for your particular product contact application. We also carefully confirm CIP/SIP compatibility against your actual real-world cleaning cycle parameters, since a meter rated only for standard clean-in-place temperatures may not be genuinely appropriate for a more aggressive sterilize-in-place regime that your particular process actually uses.
For food and beverage or pharmaceutical customers weighing the base-functionality FEH300 against the extended-diagnostic FEH500, our engineers help work through carefully whether your specific quality system’s documentation and traceability requirements genuinely call for the added diagnostic capability, since choosing based on purchase price alone can leave an otherwise well-run regulated process without the specific instrument-level diagnostic data an internal or regulatory audit may eventually come to expect as standard practice. Where a facility is actively standardizing its hygienic flow measurement approach across multiple process lines, we are always glad to review the existing meter inventory in full detail before recommending any additional units.
Compliance-First Flow Measurement for Regulated Industries
In pharmaceutical and biotechnology manufacturing especially, an instrument’s own documentation package, material certificates, surface finish specifications, and compliance declarations, is often reviewed just as closely as its actual measurement performance during a facility’s own internal validation and formal qualification process. We help customers assemble the complete and correct documentation package the FEH300 genuinely requires for this kind of close scrutiny, so a validation engineer reviewing the instrument later encounters a genuinely complete file from the outset, rather than having to chase down missing certificates during an already time-pressured qualification exercise that has little patience for administrative delays.
Seven Star LLC, as an authorized ABB partner, supports food and beverage, pharmaceutical, and biotechnology customers across Oman and the GCC with FEH300 specification and sourcing, and we coordinate directly and continuously with ABB on lead times and documentation specifically for these tightly regulated industries, where an unplanned substitution or a documentation gap discovered late in a project can mean a genuinely real delay to a facility’s entire commissioning and validation schedule, at a cost far exceeding the meter itself.
Request a Quote for ABB-Electromagnetic flowmeter HygienicMaster FEH300
Contact Seven Star LLC to specify an ABB HygienicMaster FEH300 for a sanitary food, beverage, or pharmaceutical process line in Oman and the GCC.
