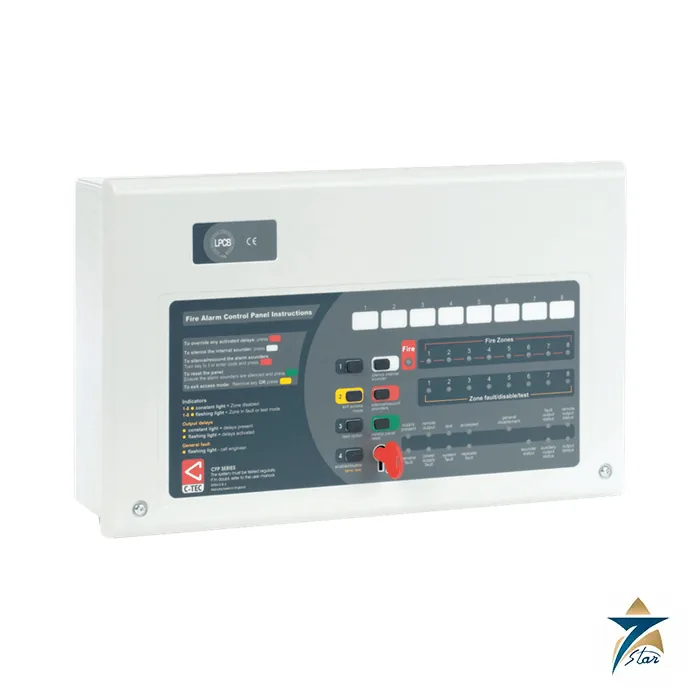

C-TEC Fire Panel CFP708-4 Conventional 8 Zone
Overview
The C-TEC CFP708-4 is an 8-zone conventional fire alarm panel, LPCB certified to EN54-2/4, manufactured by C-TEC in the UK. It combines two detector zones, four conventional sounder circuits, and a range of installer- and user-friendly features into an attractive flush or surface mountable plastic enclosure, making it a practical choice for buildings that need a certified, competitively priced conventional fire panel.
Seven Star LLC supplies the C-TEC CFP708-4 and the wider CFP conventional fire panel range to building owners, contractors, and fire safety consultants across Oman and the GCC, with guidance on panel selection and expansion options.
Operating Principle
The CFP708-4 monitors its two detector zone circuits for alarm and fault conditions, driving up to four conventional sounder circuits when an alarm threshold is reached. Its engineering functions include selectable zone delays, coincidence detection (requiring signals from more than one detector before triggering a full alarm), and non-latching zone options, giving installers flexibility to tune the panel’s response to the building’s actual fire risk profile and reduce nuisance alarms.
Two on-board relays (Fire and Fault) and two open-collector outputs (Remote and Reset) let the panel interface with external systems such as building management systems, remote signaling equipment, or auxiliary alarm devices, extending its function beyond the panel enclosure itself.
Engineering Design of the CFP708-4
The panel is built with an integral 1.5A EN54-4/A2 compliant switch-mode power supply and space for two 12V 3.3Ah VRLA batteries, providing standby power in line with the EN54 standard’s requirements for fire alarm system resilience. Its low 25mA quiescent current keeps standby battery drain minimal, supporting the required standby duration without oversized batteries.
The system supports expansion through up to eight two-wire repeaters (requiring one CFP761 network card per system), along with optional CFP relay boards and EN54-13 compliant sounder circuit boards from the BSI, allowing a basic 8-zone installation to grow into a larger networked fire detection and alarm system as a building’s needs change.
Key Features
- LPCB certified to EN54 parts 2 and 4, with optional EN54-13 compliance
- Two detector zones and four conventional sounder circuits
- Colour-coded combined keypad/keyswitch entry interface
- Selectable zone delays, coincidence, and non-latching zone functions
- Integral 1.5A EN54-4/A2 compliant switch-mode power supply
- Two on-board relays (Fire and Fault) plus Remote and Reset outputs
- Expandable with up to eight two-wire repeaters and relay boards
- Compatible with C-TEC’s ActiV range of conventional detectors
Industrial Applications
The CFP708-4 is used in commercial and light industrial buildings that require a certified conventional fire alarm system without the cost or complexity of an addressable system — office buildings, retail units, small manufacturing facilities, and multi-tenant properties across Oman, Muscat, Sohar, Salalah, and the GCC. Its expandability with repeaters and relay boards also suits buildings expecting incremental growth in fire detection coverage.
Seven Star LLC supports fire safety consultants and building operators as an authorized supplier of C-TEC conventional fire panels, helping projects meet EN54 certification requirements with a system sized appropriately for the building.
Technical Specifications
| Model | C-TEC CFP708-4 |
| Certification | LPCB, EN54 parts 2 and 4 (optional part 13) |
| Detector Zones | 2 |
| Sounder Circuits | 4 conventional |
| Power Supply | Integral 1.5A EN54-4/A2 switch-mode PSU |
| Battery Space | 2 x 12V 3.3Ah VRLA |
| Quiescent Current | 25mA |
| Expansion | Up to 8 two-wire repeaters, relay boards, EN54-13 sounder boards |
Request a Quote for C-TEC Fire Panel CFP708-4 Conventional 8 Zone
Contact Seven Star LLC for pricing, availability, and technical support on the C-TEC CFP708-4 Fire Panel and the full range of C-TEC conventional fire detection equipment across Oman and the GCC.
